Controls and Indicators
Quick Reference Guide 5
Controls and Indicators
The scanner features a conspicuous green LED indicator bar atop the control panel side
of its vertical “bonnet” (item #2 in Figure 4). Additionally, a configurable speaker is used
to sound scanning, weighing and EAS deactivation
in
dications, ScaleSentry event, etc.

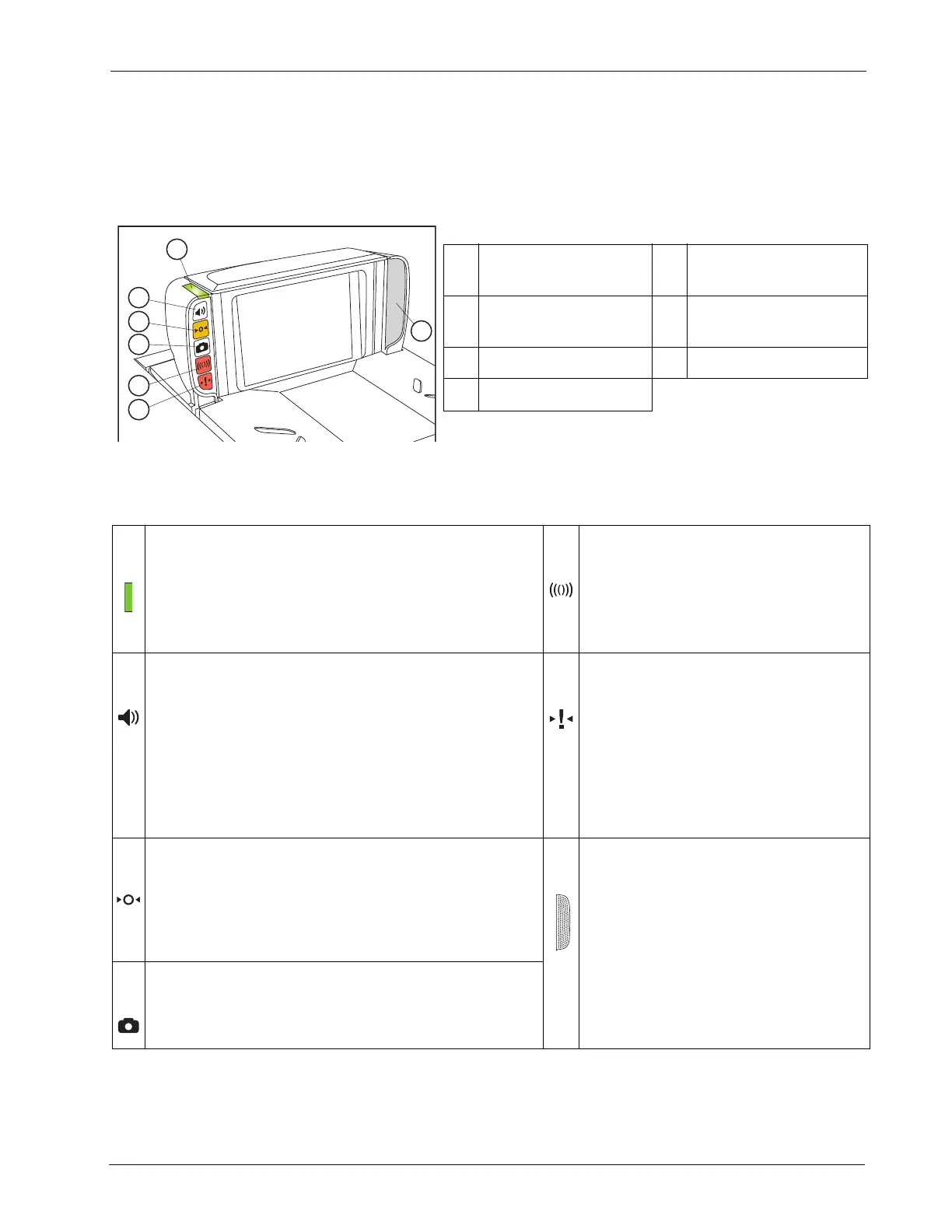

Figure 4. Top Side LED Indicators
1
2
3
4
5
6
7
1
LED Indicator ”Bar”
5
Manual EAS Deactivation
Button
2
Scanner Control Button
b
6
Scale Sentry Override
Button
3
Scale Zero Button
7
Speaker
4
Camera Button
Table 1. Control Panel
See LED and Beeper Indications for more information regarding each of the indicators.
1
LED Indicator Bar
5
Manual EAS Deactivation Button
This bar lights/flashes to indicate functions such as a good
read, ScaleSentry event, etc.
When in EAS Manual Deactivation Mode,
push this button to deactivate an item.
The LED illuminates to indicate EAS func-
tions with red, green OR orange color.
2
Scanner Control Button
6
ScaleSentry Override Button
-If the scanner is “asleep”, press this button to wake it up.
-Press this button momentarily to enter beeper volume
ch
ange state. Select one of five volume settings.
-Press this button between 1 and 4 seconds to enter beeper
tone change state.
-Press this button for 10 seconds to initiate a soft reset.
When configured to do so, a push of this
button will override a detected scale over-
hang condition.
This red LED indicates the current
ScaleSentry conditio
n. See the
LED and
Beeper Indications
section for more
information.
3
Scale Zero Button
7
Speaker
With all weight removed from the scale, push this button to
set the scale to zero.
The yellow LED indicates scale functions.
Sounds
a
beeps, error tones and other audi-
ble signals to indicate good read,
ScaleSentry ale
rt, system error and other
conditions.
4
Image Capture Button
This button is used to capture images using the vertical
window. See the PRG for more information.
.
a. Some audible indications are configurable to be on or off, as well as offer their own programmable
options for pitch, volume, etc.
b. Button functions may be disabled for some applications based on user requirements. See the pro-
gramming section of the PRG for details.

Datalogic Magellan 9400i Specifications

General

Standard interfaces	USB
Connectivity technology	Wired
Type	Built-in bar code reader
Sensor type	Linear
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Housing material	-
Sustainability certificates	RoHS

Weight and Dimensions

Depth	102 mm
Width	401 mm
Height	130 mm
Weight	- g
