Mounting Bracket
4 Customer Service Scanner
Mounting Bracket
Your scanner kit typically includes a mounting bracket which was
pre-selected for its suitability to your installation. Generally, you
should mount the face of the CSS 6 cm to 18 cm above the surface
to be scanned.
Standard Mounting Bracket
The Standard Mounting Bracket offers several different options
for mounting the CSS, as well as routing features for its cable.
Wall Mount
Mount to a wall or other vertical surface using one of the two op-
tional configurations shown in Figure 4.

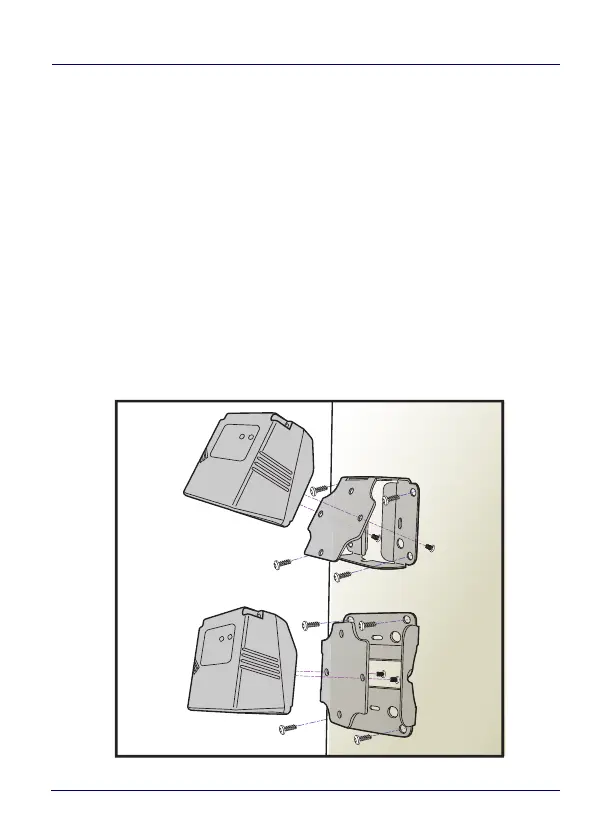

Figure 4. Mounting to a Wall
