INSTALLATION
30 P2X-SERIES™

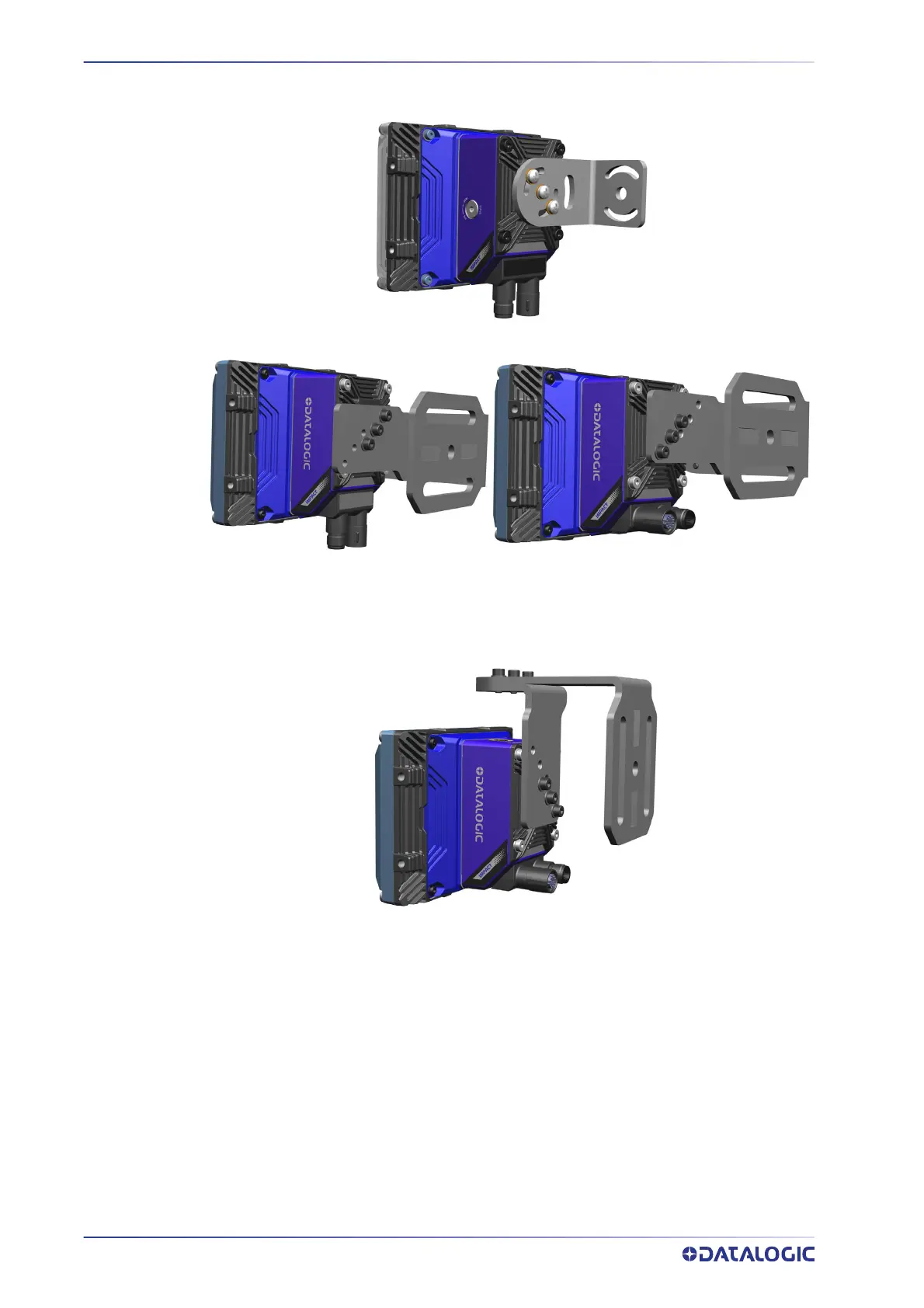

Figure 12 - 36 LEDs Illuminator with STD Fix Bracket
Figure 13 - 36 LEDs Illuminator side positioning with Pivot Fix Bracket (connectors at
0° and 90°)
Figure 14 - 36 LEDs Illuminator front extended positioning with Pivot Fix Bracket
(illuminator horizontally mounted)
