OUTPUTS
PRODUCT REFERENCE GUIDE 41

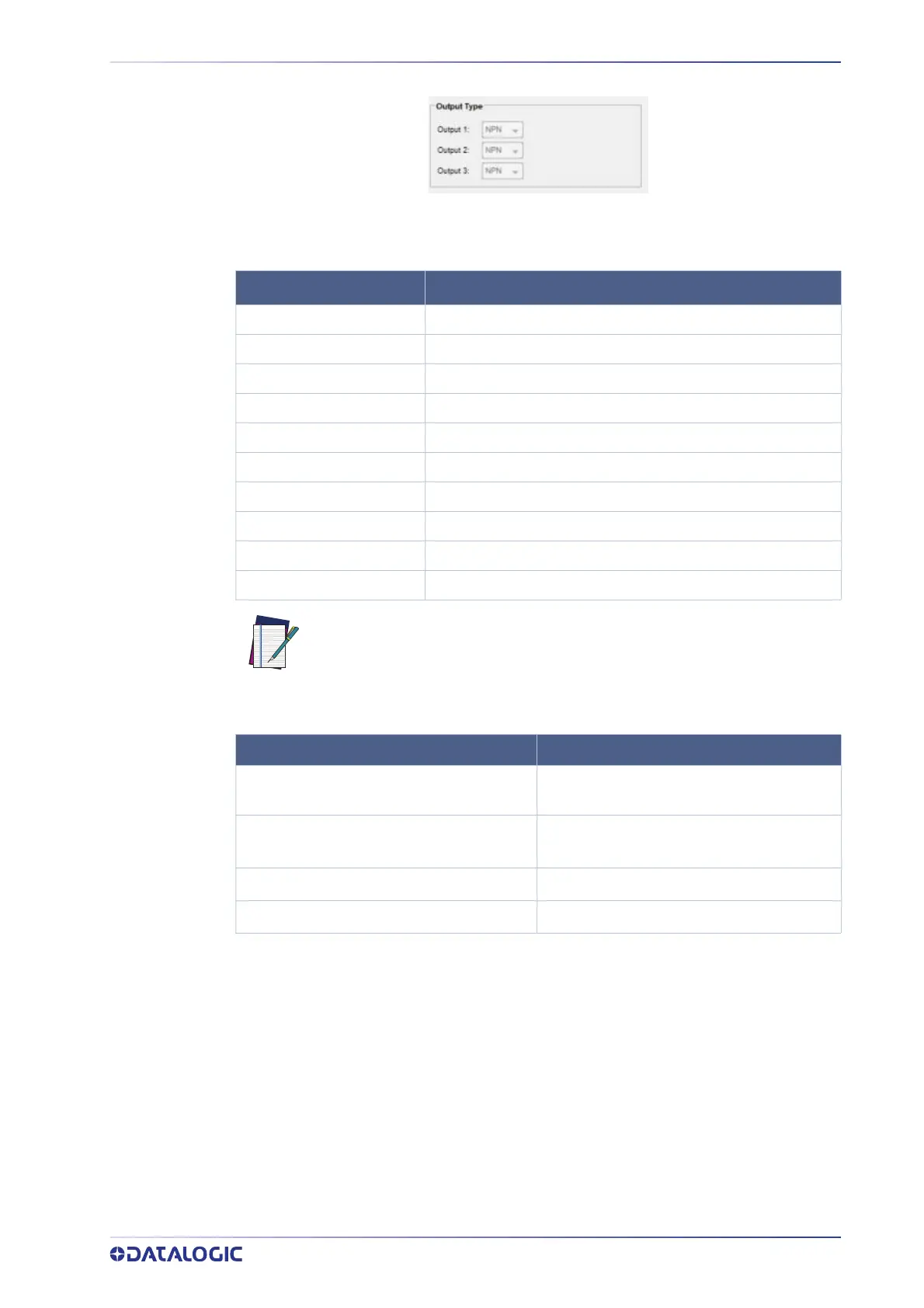

4. Select NPN for the output type.
Outputs are typically used either to signal the data collection result or to control an
external lighting system.
The electrical features of the outputs are the following:
The output signal are fully programmable. Refer to the Discrete Output tool section in
the Impact Reference Guide for further details.
CBX500/800 FUNCTION
+V
Power Source - Outputs
O1+
Output 1 + opto-isolated and polarity sensitive
O1-
Output 1 - opto-isolated and polarity sensitive
O2+
Output 2 + opto-isolated and polarity sensitive
O2-
Output 2 - opto-isolated and polarity sensitive
CBX500: 03A
Strobe /Output 3 (Single pin connection)
CBX500:03B
Not used
CBX800: O3A
Strobe + /Output 3 + (Opto-isolated; See Note)
CBX800: O3B
Strobe - /Output 3 -
-V
Power Reference Outputs
NOTE
The strobe signal connection is shared with Output 3. Output 3 is active
only if the External Strobe is disabled. (Configure in VPM – Settings – Cam-
era – General)
OUTPUT 1 AND 2 OUTPUT 3
V
CE
= 30 Vdc max.
Reverse-Polarity and Short-Circuit
Protected
I
CE
= 40 mA continuous max.; 130 mA
pulsed max.
V
OUT
(I
LOAD
= 0 mA) max = 30 Vdc
V
CE saturation
= 1 Vdc max. @ 10 mA V
OUT
(I
LOAD
= 100 mA) max = 3 Vdc
P
D
= 90 mW max. @ 50°C ambient temp. I
LOAD
max = 100 mA
