OUTPUTS
PRODUCT REFERENCE GUIDE 45
The output signals are fully programmable using the Discrete Output tool in VPM.

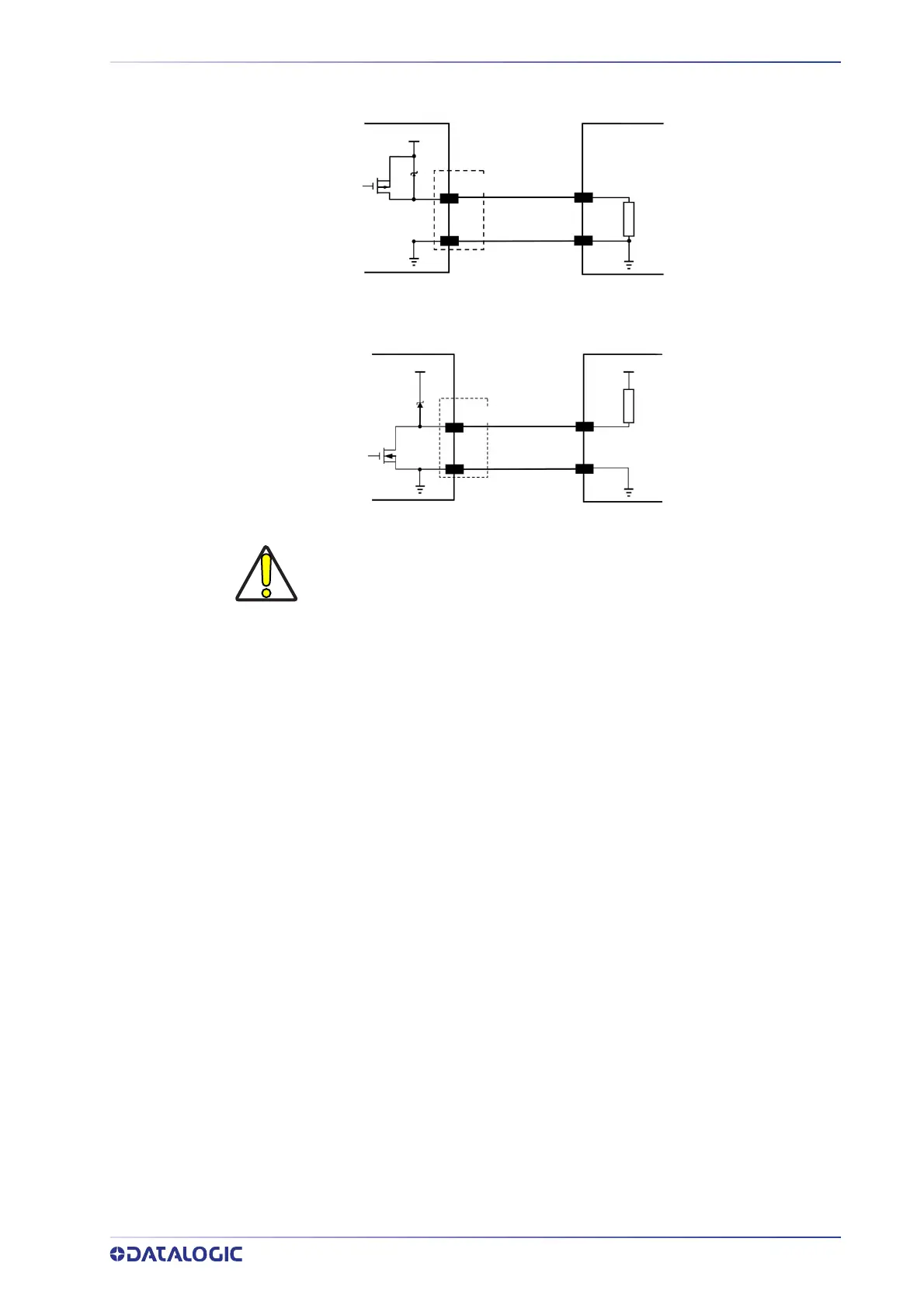

Figure 19 - PNP Output Connection
Figure 20 - NPN Output Connection
CAUTION
For NPN output connections, the external interface voltage (Vext) must not
exceed the P2x-Series™ power supply source voltage (Vdc) otherwise
correct output functioning cannot be guaranteed.
