Datalogic QuickScan BC2030 User Manual

Setting Up the Reader
Quick Reference Guide 3

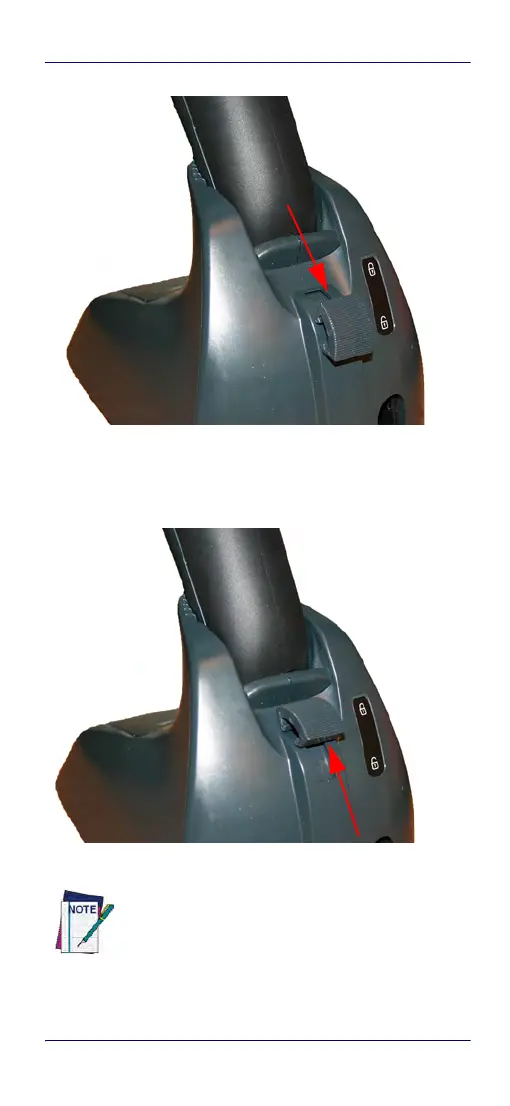

Figure 1. Lock lever disengaged
2. Engage the locking mechanism by pushing up the lever
as far as it will go.
Figure 2. Lever in locked position
it is good practice to put the scanner in the locked
condition at the end of the working shift, or when
not in use for an extended period of time. This will
ensure that the scanner is fully seated for com-
plete battery recharge.

Datalogic QuickScan BC2030 Specifications

General

Type	Handheld
Battery Type	Lithium-Ion
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	5% to 95% (non-condensing)
Drop Resistance	1.5 m / 5.0 ft
Light Source	LED
Interface	USB
Resolution	4 mil
Supported Barcodes	Code 39, Code 128, QR Code, Data Matrix
