12 QuickScan™ QBT2400

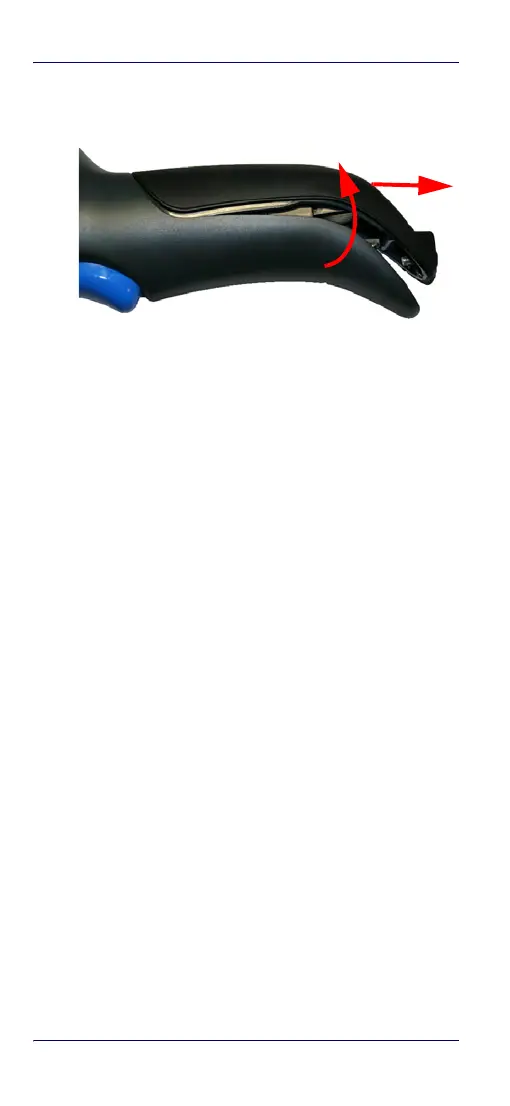

2. Extract the battery pack by slightly rotating the pack
and pulling away from the reader.
To mount the new battery pack reverse the process:
1. Insert the top of the new pack inside the reader’s han-
dle.
2. Rotate the battery pack downward while pressing the
bottom side of the battery pack (to seat securely into
the contacts springs) so that the edges of the pack and
the handle board are aligned, while replacing the screw
in the bottom of the handle.

Datalogic QuickScan BC2030 Specifications

General

Brand	Datalogic
Model	QuickScan BC2030
Category	Barcode Reader
Language	English
