Setting Up the Imager
Product Reference Guide 7
USB Connection — Connect the imager to a USB port on the terminal/PC using the
correct USB cable for the interface type you ordered. Reference Figure 2.
IBM Connection — Connect the imager to the IBM port on the terminal/PC using the
correct IBM cable. Reference Figure 2.
Keyboard Wedge Connection — The Keyboard Wedge cable has a ‘Y’ connection
from the imager. Connect the female to the male end from the keyboard and the remain-
ing end at the keyboard port at the terminal/PC. Reference
Figure 2.

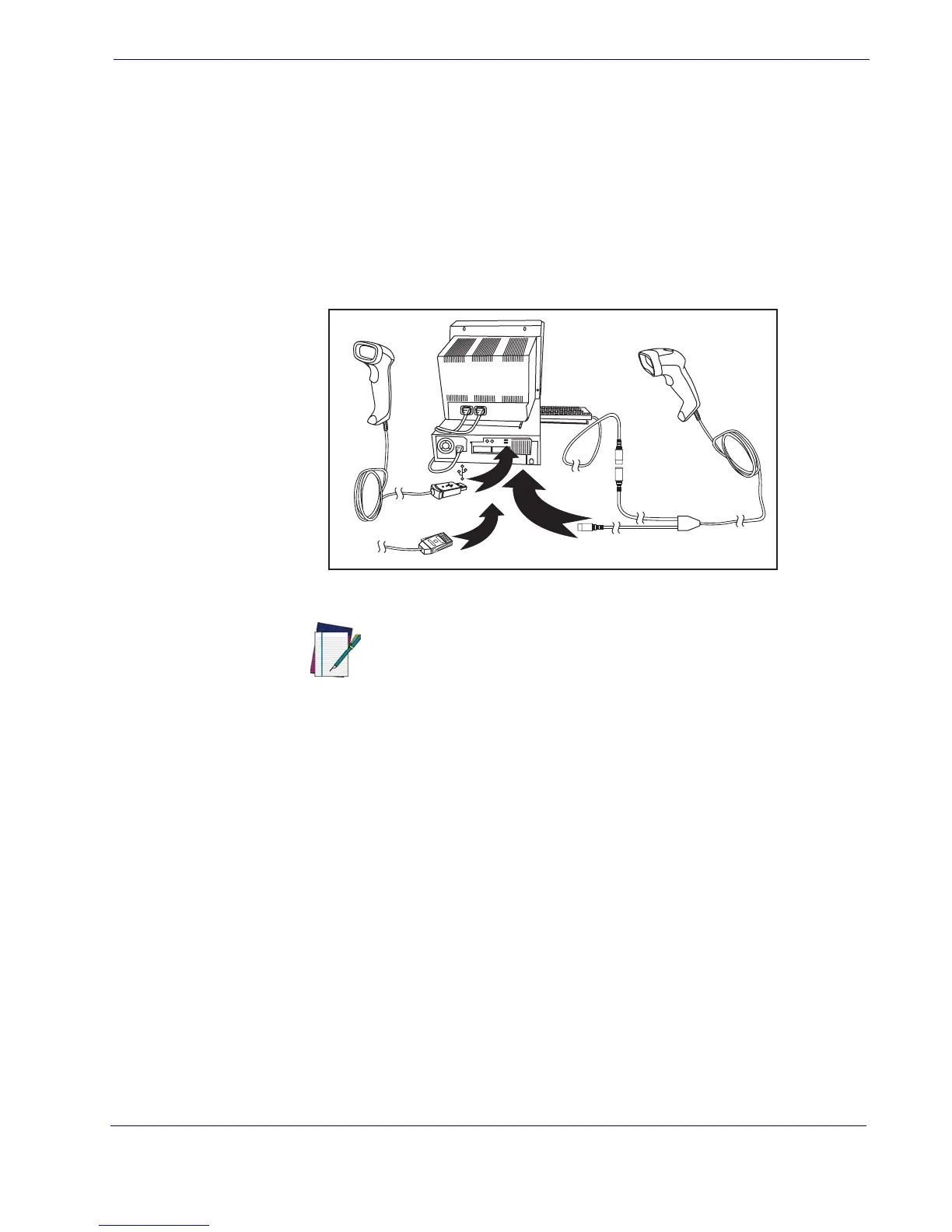

Figure 2. Other Interface Connections
Programming
The imager is typically factory-configured with a set of default features standard to the
interface type you ordered. After scanning the interface barcode from the Interfaces sec-
tion, you can select other options and customize your imager through use of the instruc-
tions and programming barcodes available in the corresponding features section for your
interface and also the Data Editing and Symbologies chapters of this manual.
NOTE
Specific cables are required for connection to different hosts. The
connectors illustrated above are examples only. Actual connectors
may vary from those illustrated, but the steps to connect the imager
remain the same.
U
S
B
I
B
M
K
e
y
b
o
a
r
d
W
e
d
g
e
or...
or...

Datalogic QuickScan i QD2100 Specifications

General

Scan speed	8 sec/page
Wavelength	610 nm
Tilt angle range	-65 - 65 °
Decoding standards	1D / GS1 DataBar China Post GS1 DataBar Expanded/ Stacked/ Stacked Omnidirectional
Dimensions (WxDxH)	170 x 66 x 71 mm
Standard interfaces	RS-232, USB, Keyboard wedge
Input voltage	5 V
Power consumption	340 mA
Product color	White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	121.9 g
