Datalogic QuickScan QD2590 Quick Reference Guide

Using the QuickScan™ QD2590
QUICK REFERENCE GUIDE 7

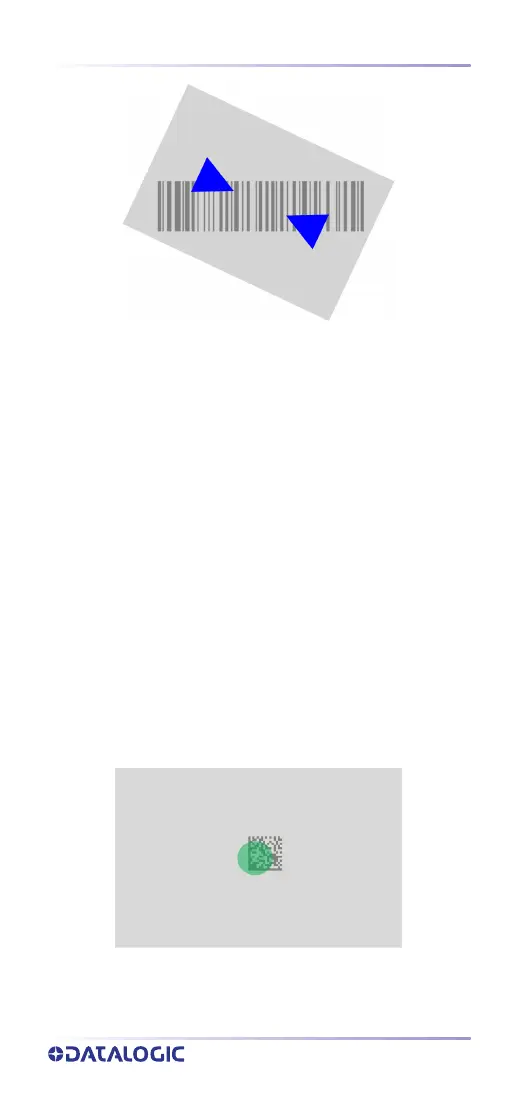

Relative Size and Location of Aiming System
Pattern on Linear bar code
A red beam illuminates the label. The field of view indi-
cated by the aiming system will be smaller when the
reader is closer to the bar code and larger when it is far-
ther from the code. Symbologies with smaller bars or ele-
ments (mil size) should be read closer to the unit.
Symbologies with larger bars or elements (mil size) should
be read farther from the unit.
If the aiming system is centered and the entire bar code is
within the aiming field, you will get a good read. Success-
ful reading is signaled by an audible tone plus a good-read
green spot LED indicator.
Refer to the QuickScan™ QD2590 Product Reference
Guide (PRG) for more information about this feature and
other programmable settings.
Relative Size and Location of Green Spot

Datalogic QuickScan QD2590 Specifications

General

Type	Handheld bar code reader
Sensor type	-
Scanner type	1D/2D
Scanner resolution	0.17 mm
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 65 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	CPC Binary, Codabar, Codabar 125, Code 11, Code 128, Code 128A, Code 128B, Code 128C, Code 25 (IR 2 of 5), Code 25 (non-IR 2 of 5), Code 3 of 9, Code 32, Code 39, Code 93, DUN 14, DataBar14, Discrete 2 of 5, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, Facing Identification Mark, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1-128 (UCC/EAN-128), HIBC, IATA, ISBN, ISSN, ITF-14, ITF-6, Industrial 2 of 5, Intelligent Mail, Interleaved 2 of 5, JAN, Latent image, MSI, Matrix 2 of 5, PDF417, PLANET, POSTNET, Pharmacode, Plessey, PostBar, RM4SCC / KIX, S-Code, Telepen, Trioptic, U.P.C., UPC-A, UPC-E
Optical sensor resolution (W x H)	1280 x 800 pixels
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Dot Code A, MaxiCode, Micro QR Code, QR Code
Cable length	2 m
Standard interfaces	USB
Connectivity technology	Wired
Product color	Black
Image formats supported	BMP, JPEG, TIFF
International Protection (IP) code	IP52
Input voltage	5 V
Power consumption	450 mA
Cables included	USB Type-C
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Sustainability certificates	RoHS
Material	Polyvinyl chloride (PVC)
Connector 1	USB C
Product type	USB cable
Connector gender	Male/Male
Brand compatibility	Datalogic
Connector 1 form factor	Straight
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	126 mm
Width	148 mm
Height	68 mm
Weight	145 g
