Using the Quickscan™ QD24XX
Quick Reference Guide 3

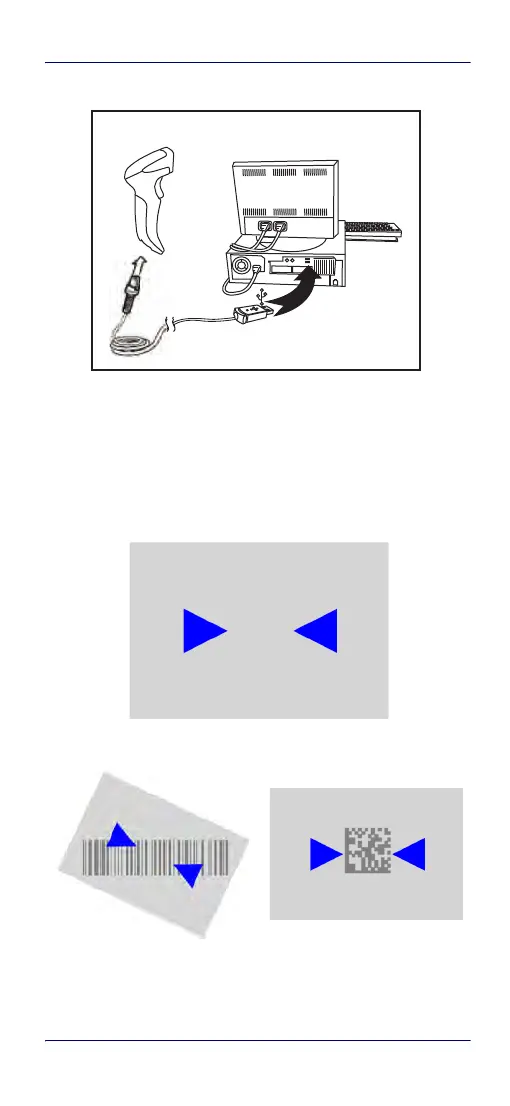

Figure 2. Connecting to the Host
Using the Quickscan™ QD24XX
The Quickscan™ QD24XX normally functions by capturing and
decoding codes. The aiming system is activated on trigger pull
and indicates the center of the field of view which should be
positioned over the bar code:
Aiming System
Relative Size and Location of Aiming System Pattern
U
S
B
Side
View
Linear bar
2D Matrix symbol
