Datalogic QuickScan QS6500 Quick Reference Guide

2QuickScan
®
QS6500
How to Scan

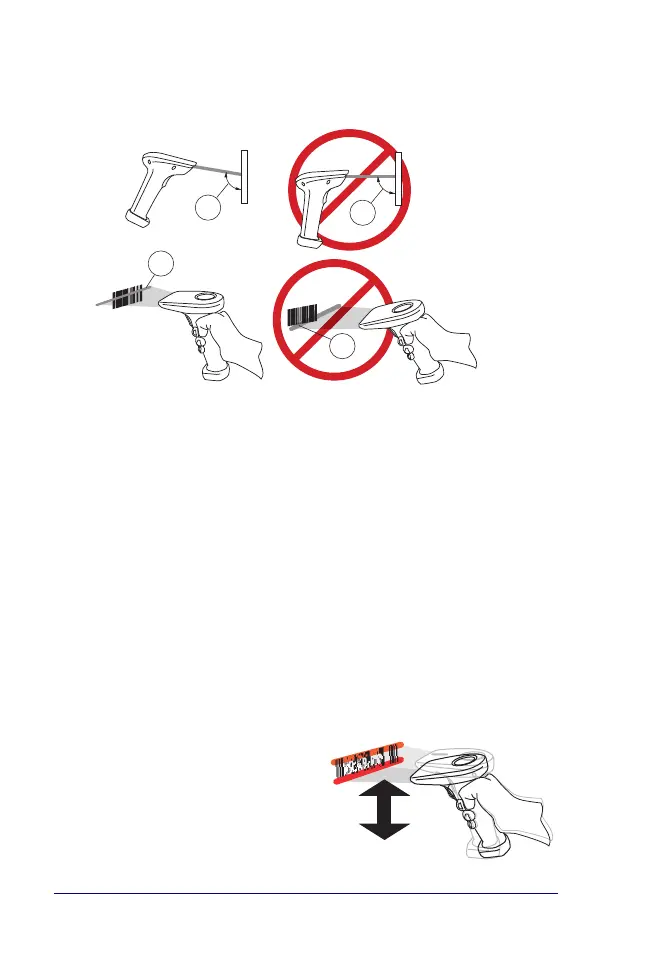

The figure below shows the right and wrong ways to scan a bar
code.
1. The linear imager must be pointed at a slight angle to the bar
code so that the light reflected off the bar code can be “seen”
by the linear imager. Do not hold the linear imager perpen
-
dicular to the bar code.
2. The targeting beam must cross the entire label. The linear
imager cannot read the bar code data without seeing the
entire label.
Scanning PDF417 Bar Codes (PDF models ONLY)
To read a PDF417 bar code, aim the targeting beam at the top of
the bar code, and in a smooth motion, scan down through the bar
code. You will hear a series of
ticks, followed by a final beep
when the bar code’s content has
been completely decoded. You
may need to repeat this process if
the PDF code is hard to read.
1
1
2
2
PDF

Datalogic QuickScan QS6500 Specifications

General

Scan speed	450 sec/page
Tilt angle range	-60 - 60 °
Maximum scan area	610 mm
Decoding standards	- 1D - Code 16K - EAN/JAN - GS1 DataBar - PDF Models - GS1 DataBar Expanded Stacked - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional - MicroPDF417 - PDF417 - UPC A/E
Dimensions (WxDxH)	165 x 74 x 99 mm
Cable length	2.44 m
Standard interfaces	Keyboard wedge
Input voltage	4.5 - 14 V
Power consumption	300 mA
Certification	RoHS
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	181.4 g
