Datalogic QuickScan QS6500 Quick Reference Guide

Quick Reference Guide 1
Installation
The QuickScan
®
QS6500 linear imager is easy to install and use.

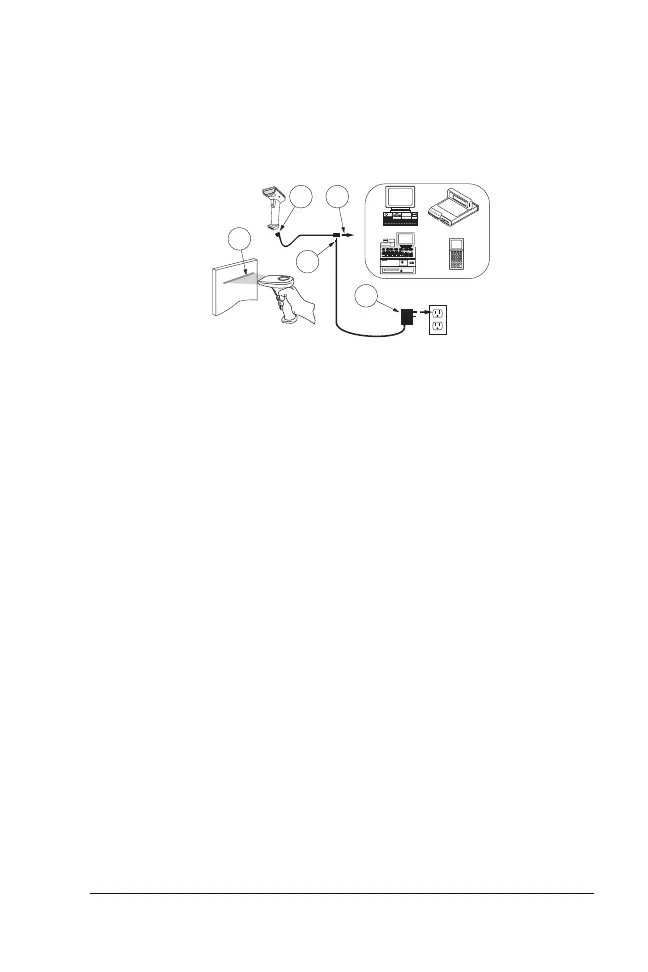

The following figure shows the steps to perform an installation.
Turn off the host computer before connection. Consult the host
terminal’s manual if necessary.
1. Connect the interface (I/F) cable to the linear imager.
2. Connect the I/F cable to the terminal’s communication port.
3. Connect the power cord to the I/F cable connector if
required. Linear imagers that use power off the terminal
(P.O.T.) do not require a power supply.
4. If required, connect the AC adapter to the wall outlet.
5. To verify operation, point the linear imager at a bar code and
pull the trigger. The linear imager should emit a single beep
indicating that the label has been scanned successfully.
The linear imager installation is complete.
Power Supply
Models require either a Listed class II or class III with a Limited
Power Source (LPS). For the safety certification to be valid, class
III input power sources must be IEC/EN60950-1 (EN 60335-
series, EN 60065 or relevant) approved.
Input: 100 - 240 VAC Output: 9 - 10 VDC
Max. Current: 2.0 A Max. Power: 20 W
1 2
5
4
3
$4.50
$2.79
$3.99

Datalogic QuickScan QS6500 Specifications

General

Scan speed	450 sec/page
Tilt angle range	-60 - 60 °
Maximum scan area	610 mm
Decoding standards	- 1D - Code 16K - EAN/JAN - GS1 DataBar - PDF Models - GS1 DataBar Expanded Stacked - GS1 DataBar Stacked - GS1 DataBar Stacked Omnidirectional - MicroPDF417 - PDF417 - UPC A/E
Dimensions (WxDxH)	165 x 74 x 99 mm
Cable length	2.44 m
Standard interfaces	Keyboard wedge
Input voltage	4.5 - 14 V
Power consumption	300 mA
Certification	RoHS
Product color	Black
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	181.4 g
