2
INSTALLING A REDUNDANT SYSTEM
2.1

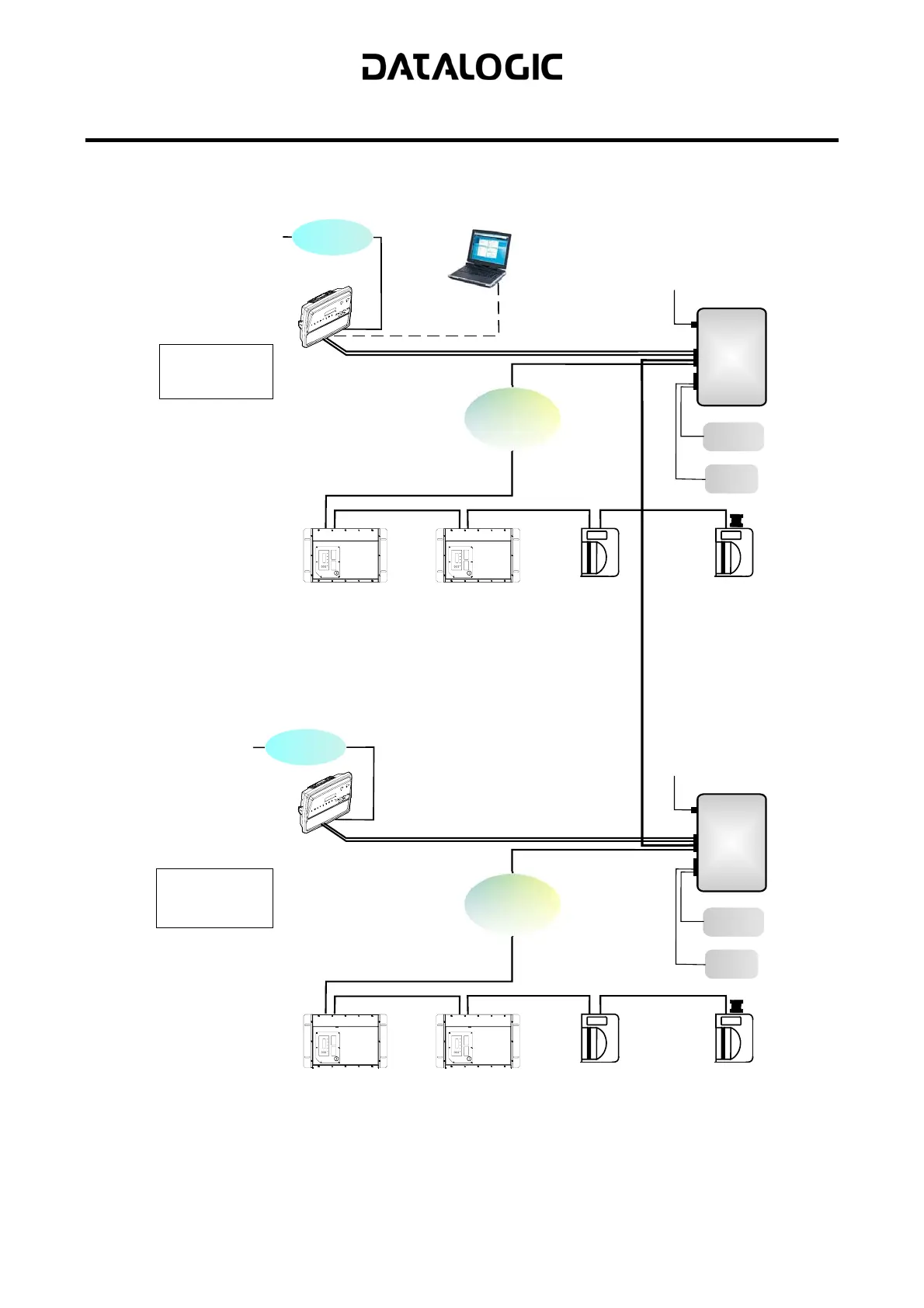

REDUNDANT SC6000 READING STATION LAYOUT
to Host
ETHERNET
SC6000
VAC INPUT
CAB-SC6103
AUX
CAB-SC6013
Power/Net
PWO
Working
Controller
Extended I/O
CAB-SC6003
LONWORKS
ENCODER
CAB-810x
PS
PS Aux
BTK8100
CAB-810X
CAB-810x
CAB-810x
DS8100A
DS8100A
DX8200A DX8200A
CAB-PWO 03
Redundancy
to Host
ETHERNET
VAC INPUT
SC6000
CAB-SC6013
Power/Net
PWO
Extended I/O
CAB-SC6003
Protecting
Controller
LONWORKS
ENCODER
CAB-810x
PS
PS Aux
BTK8100
CAB-810X
CAB-810x
CAB-810x
DS8100A
DS8100A
DX8200A DX8200A
Example Redundant SC6000 Reading Station Layout
