Datapath Fx4 User Manual

General
9
Hardware
DisplayPort Out Loop
Used to connect multiple Fx4 systems enabling larger display walls.
Monitor Outputs
Either HDMI or DisplayPort (DP 1.1) output connectors (depending on model ordered). The Monitor Output connectors are
used to connect the Fx4 to the display monitors.
LAN
The LAN connector is used to connect the Fx4 to a network for conguration and control, it can also be used to connect
multiple Fx4 in a daisy chain architecture using Ethernet cables. Ethernet loop through is supported. The LAN connector can
also be used to connect the Fx4 to a PC for conguration.
USB
The USB socket is used to connect the Fx4 to a PC via a USB connection using the supplied USB Type A to Type B cable.

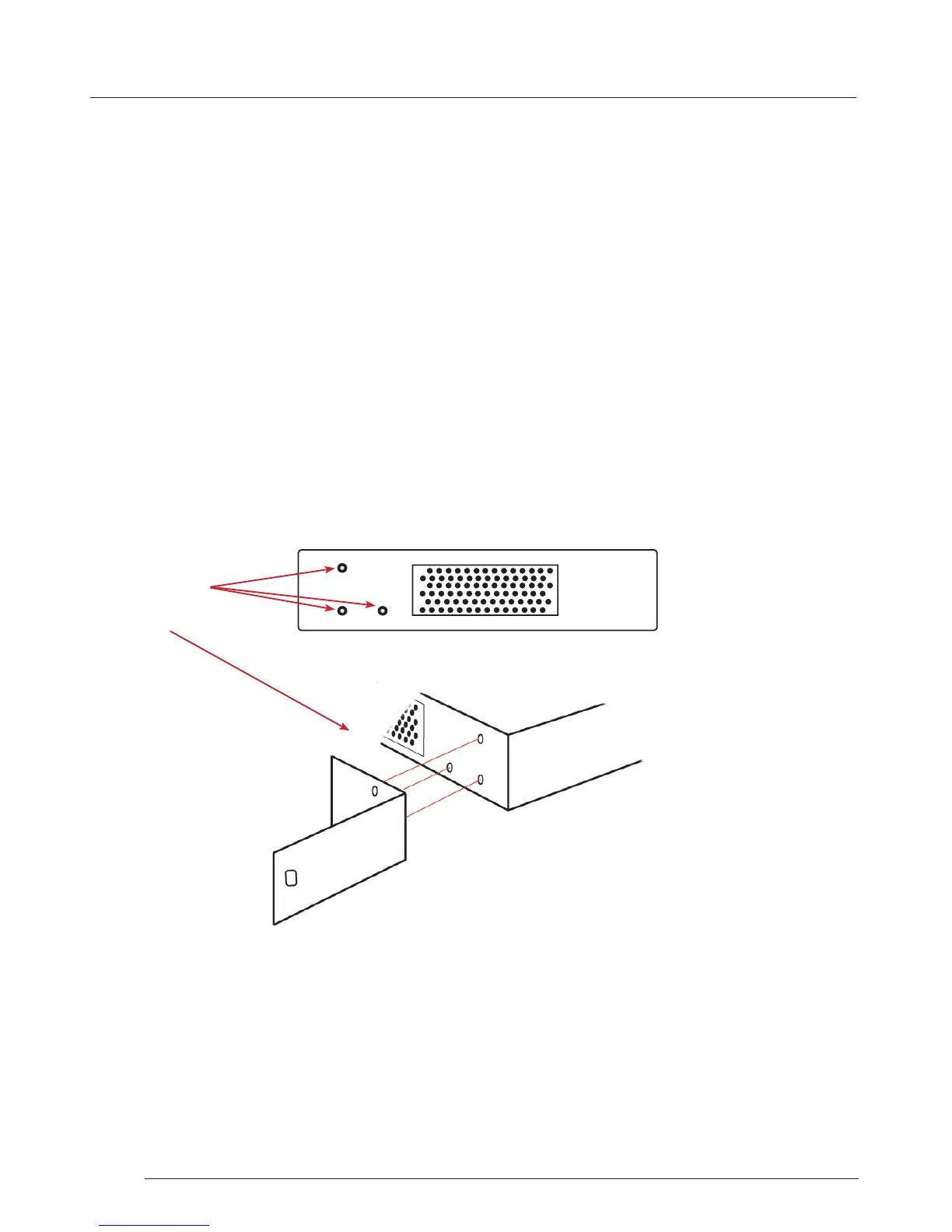

4.3 Rack Mounting the Fx4
The Fx4 is supplied with attachments to enable you to mount the Fx4 in a rack. Remove the 3 mounting screws on each side of
the Fx4 using a cross head screwdriver and attach the rack mounts as shown in the illustration below.
Remove the stud
screws and secure
rack mounts
using the screws
provided

Datapath Fx4 Specifications

General

Inputs	1 x DisplayPort 1.2, 2 x HDMI 1.4
Maximum Input Resolution	4096x2160 @60Hz
Bezel Correction	Yes
HDCP	Yes
Genlock	Yes
Scalers	Yes, per output
Supported Platforms	Windows, Linux
Resolution Support	Up to 4K
Maximum Output Resolution	4096x2160 @ 60Hz
Rotation	Yes
Audio	Audio pass-through via DisplayPort and HDMI
Control	Ethernet
Power Supply	100-240V AC, 50-60Hz
Video Processing	Real-time
