Analog Inputs
Eight fixed differential analog inputs measure ± 10V (CH1 to CH8). Designed to withstand ±100 V dc or peak ac.

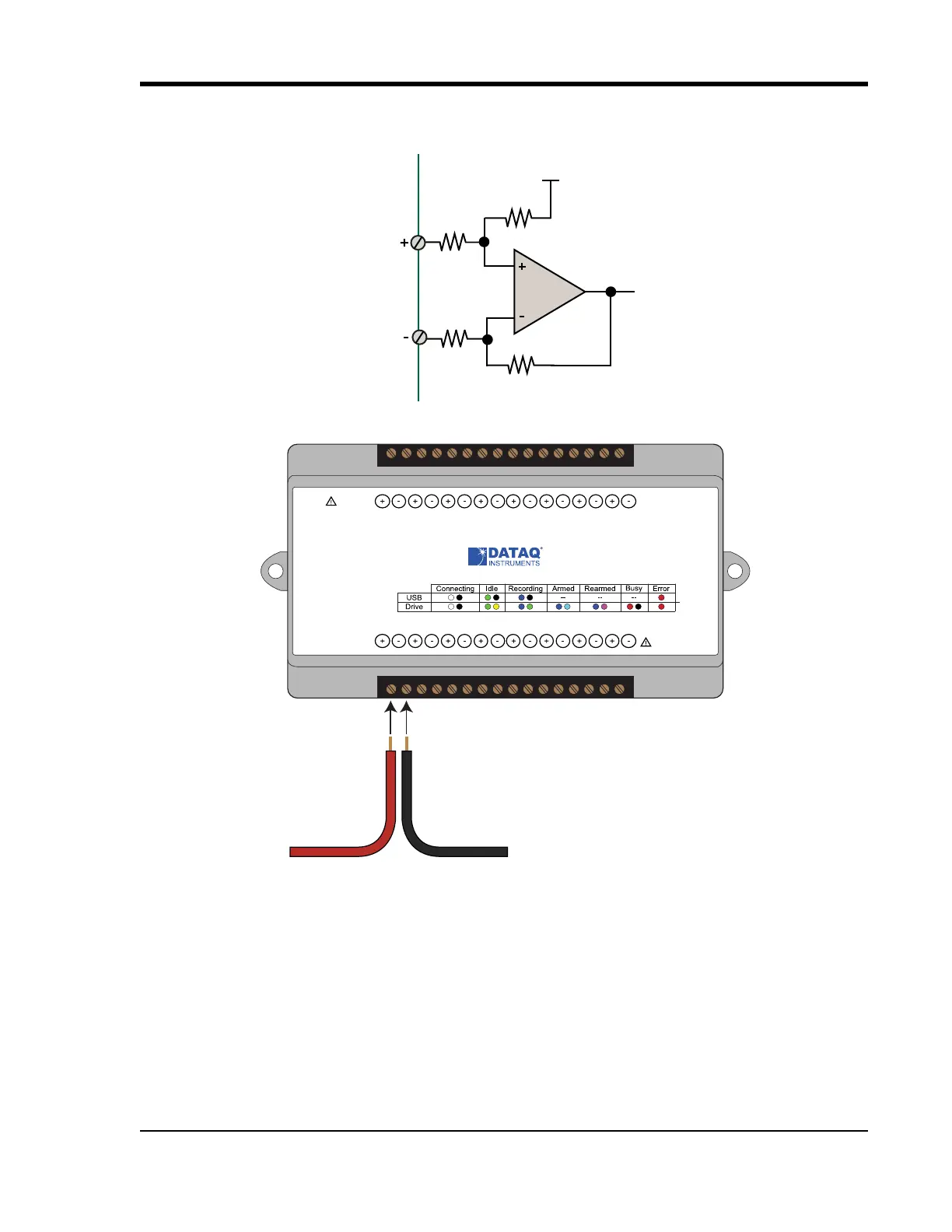

Use the following diagram to connect Analog Input Channel 1.
