DI-2108 Hardware Manual
Controls, Indicators, and Connections
21

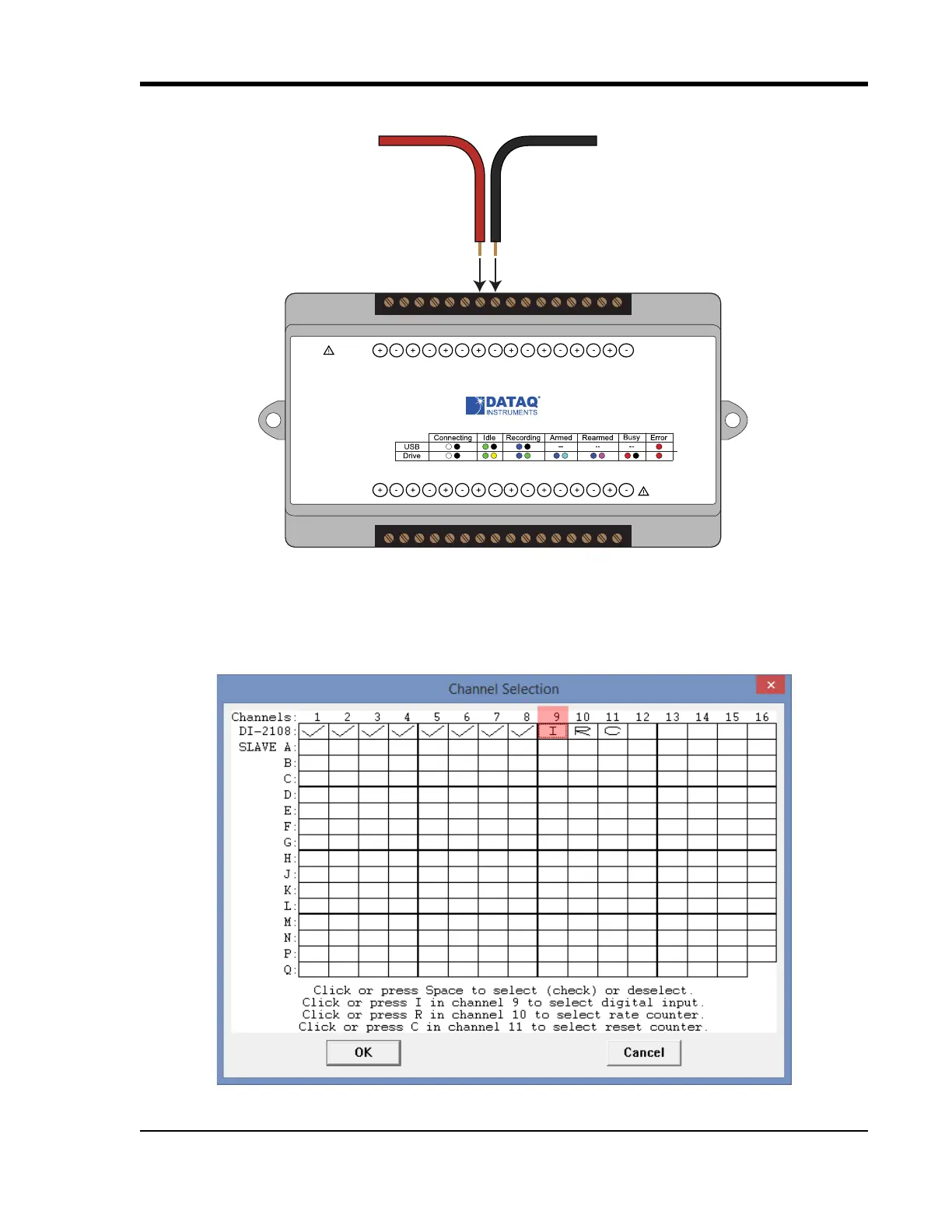

Connect any TTL pulse stream (25 VDC max) to the D3 Count channel on the DI-2108.
General Purpose Digital Inputs
Enable Channel 9 for general-purpose digital input functions. Click on Edit > Channels in the WINDAQ Acquisition
menu to open the Channel Selection grid. Channel 9 is the designated Digital Input channel. Click on the Channel 9
channel box to enable/disable the digital inputs. The Channel 9 channel box will display an “I” when enabled.
Signal +
Signal -
Status
D0 D1 D2 D3 D4 D5 D6
Model DI-2108
USB
Button
+5V GnD
CH8
CH7CH6
CH5CH4CH3CH2CH1
±100V Max
0-25V Max
CountRateRecordEvent
Drive
www.dataq.com
±10V F.S.
