S4 Series alarm technical specifications
Construction
Nylon outer casing, with metal end cone protecting the siren. The housing contains the PCB which is fully potted, so
protecting the PCB itself from; attack, water ingress and component failure through vibration.
Each product can easily be distinguished by the colour of seals between the alarm sections as follows:
S4 C1 Red (Category 1) has RED Seals
S4 C221 Green (Category 2-1) has GREEN Seals
S4 C4 Yellow (Category 4) has YELLOW Seals
For ease of description from this point on each alarm will be distinguished by its coloured gaskets (e.g. the Cat 4 product
is the S4 Yellow)
The all black wiring harness exits the unit and is terminated at set of multi-plugs 20cm from the alarm. A 2m black
harness with coloured tags on the end connects to this plug. The inter-connection is protected by a metal security
housing. This housing must be installed to comply with insurance criteria.
2 remotes are provided as standard on all products. The remotes are anti-scan, anti grab with 2
26
Code combinations.
The remotes for the S4 Red and Green products can be combined with the OE ignition key and OE transponder system if
required.
The S4 Yellow ‘moon’ transmitters have identical coding protocols to the Red/Green transmitter types.
Should a customer wish to combine their ignition key with the remote when they have purchased a Yellow product, all
they need to do is purchase and code in one of the Red/Green type transmitters.
All S4 units contain a Trovan® transponder tag which enables the unit to be scanned to establish identity/ownership.

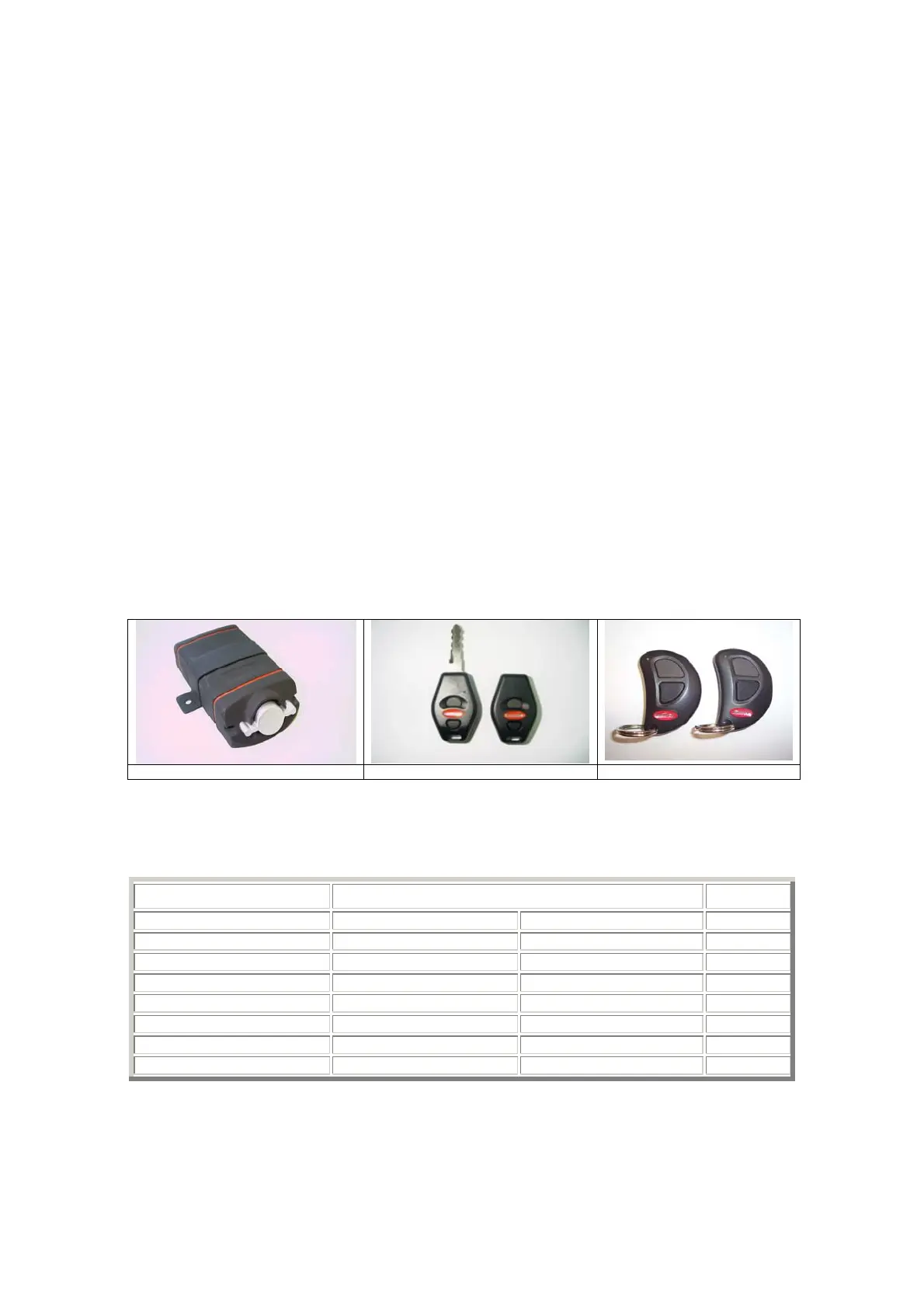

S4 Housing S4 Red and Green Transmitters S4 Yellow Transmitters
Overall size (Max housing dimensions, excluding bracket)
Length 111.7mm Width 60.2mm Height 33.7mm
S4 series current consumption
Average current (sampling 10mins ) Voltage
S4 Red and Green S4 Yellow
Disarm 2.85mA 2.09mA 12.0 V
IGN ON 118.2mA 53.5mA 12.0 V
Arm 2.897mA 2.14mA 12.0 V
Sleep mode level 1 2.233mA 1.41mA 11.5 V
Sleep mode level 2 2.218mA 1.40mA 10.5 V
Sleep mode level 3 2.216mA 1.39mA 9.8 V
Winter mode 131µA 131 µA 12.0 V
Important: Please read page 47 of this manual BEFORE carrying out any current
testing.
