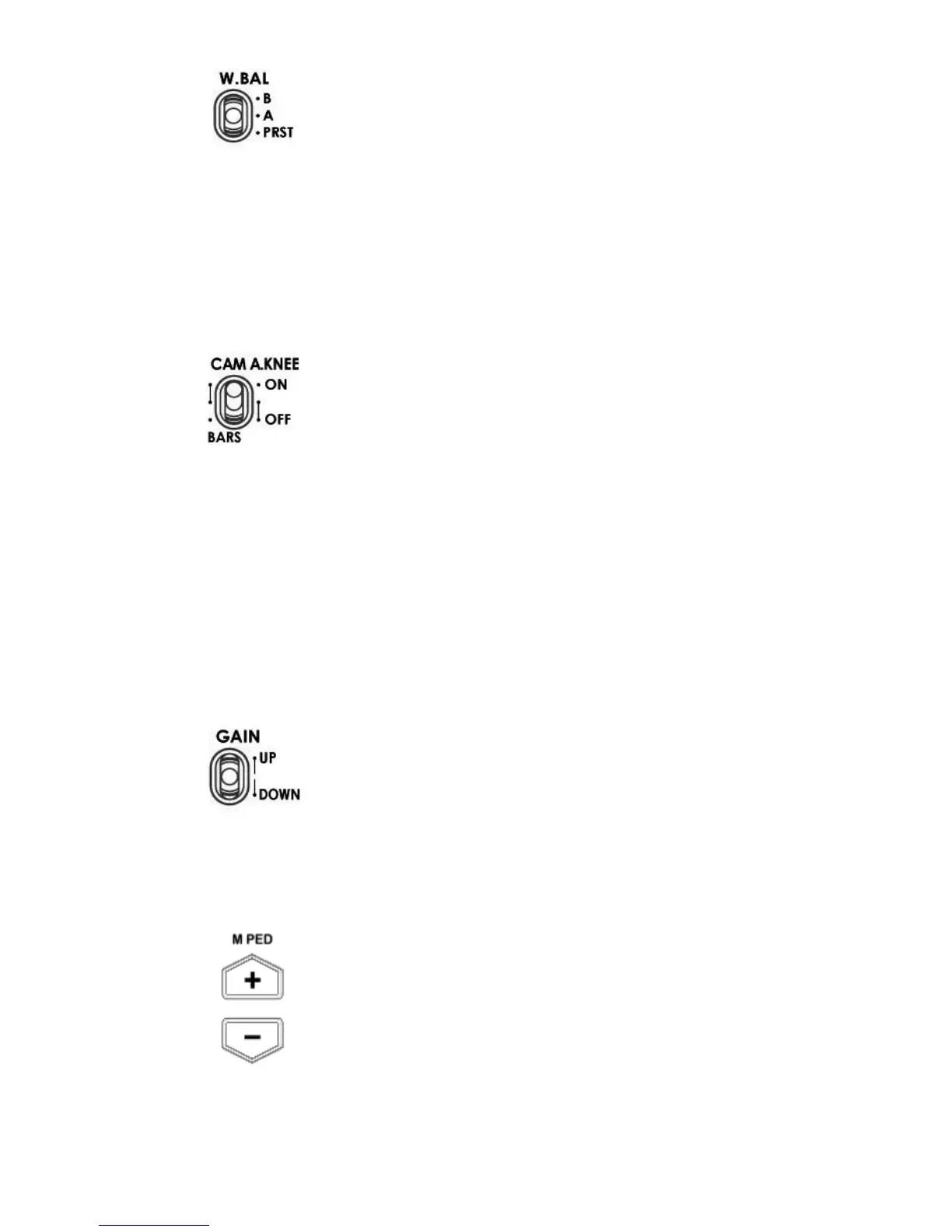

This switch is used to recall the preset or stored values of
white balance in the camera.
A or B: This will apply the value stored in the white balance
A or B memory in the camera recorder. When the AWB /
ABB switch is set to the AWB position, the white balance is
automatically adjusted and the value adjusted is stored in
the selected memory A or B.
PRST: This will apply the preset value of the white balance
stored in the camera recorder.
To select the video signals to be output from the camera.
BARS: Camera generated colour bar signals are output.
CAM. AUTO KNEE OFF
: The images shot by camera are
output. The AUTO KNEE circuit does not
KNEE is set as the camera recorder's initial setting.
CAM. AUTO KNEE ON: The images shot by the camera are
output. The AUTO KNEE circuit works.
NOTE:
AUTO KNEE circuit will not be effective if DRS
(Dynamic Range Stretch) function is enable
possible allocate the MANUAL KNEE and DRS functions via
the menu settings on the camera.
Allows selection of the video amplifier’s gain depending on
the lighting conditions that are present in the camera’s
location.
Moving the switch upwards increases the gain in dB steps.
Moving the switch downwards decreases the gain in dB
steps.
These buttons are used to adjust the level of the Master
Pedestal.
