Datex-Ohmeda F-LM1 - NIBP Calibration Menu

Datex-Ohmeda S/5 Light Monitor

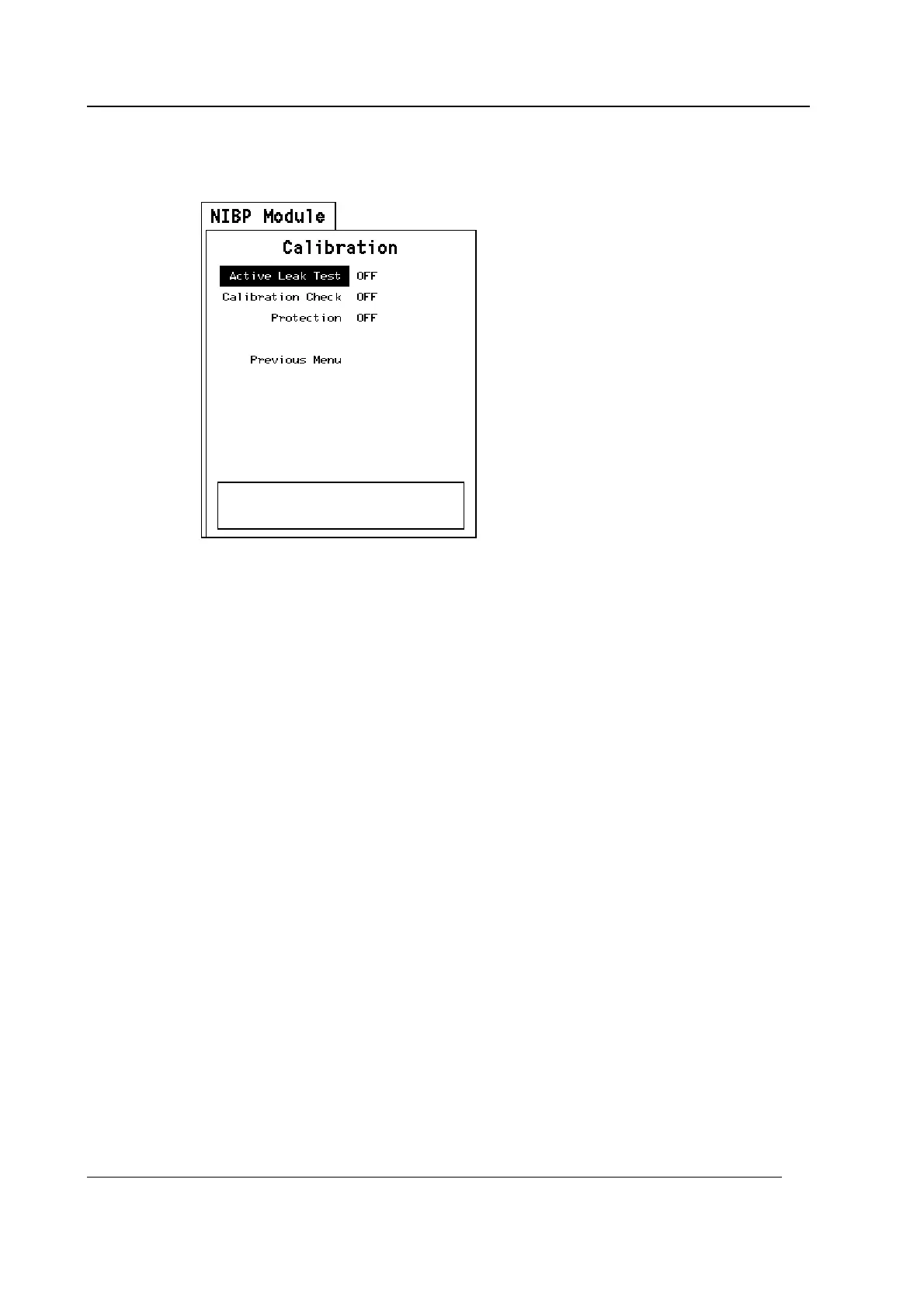

5.1.1 NIBP calibration menu
Active leak test
Wrap an adult cuff around a pipe and connect the cuff to the module. Select the active leak test
(ON). The module automatically pumps a pressure of 260 mmHg into the cuff. Wait for several
seconds until the pressure stabilizes. Then check that the pressure reading does not drop more
than 6 mmHg per minute. If it does, leaking point(s) should be detected and fixed. Cancel the test
by selecting Active leak test OFF.
Calibration check
After the calibration check is selected (ON), manually pump pressure into the module and make
sure that the same pressure values are shown both on the display and on manometer. Pressure of
both pressure channels B1 and B2 are shown. Note that if the display shows +2 mmHg at zero
pressure and if you pumped +200 mmHg into the module, the display should show +202 mmHg.
Protection
Software calibration protection (ON/OFF). Select OFF when calibrating. Protection can be set to ON
or OFF only when the switch at the bottom of the unit is pressed.
