Appendix A: Wireless Transmitter IDs Page 27

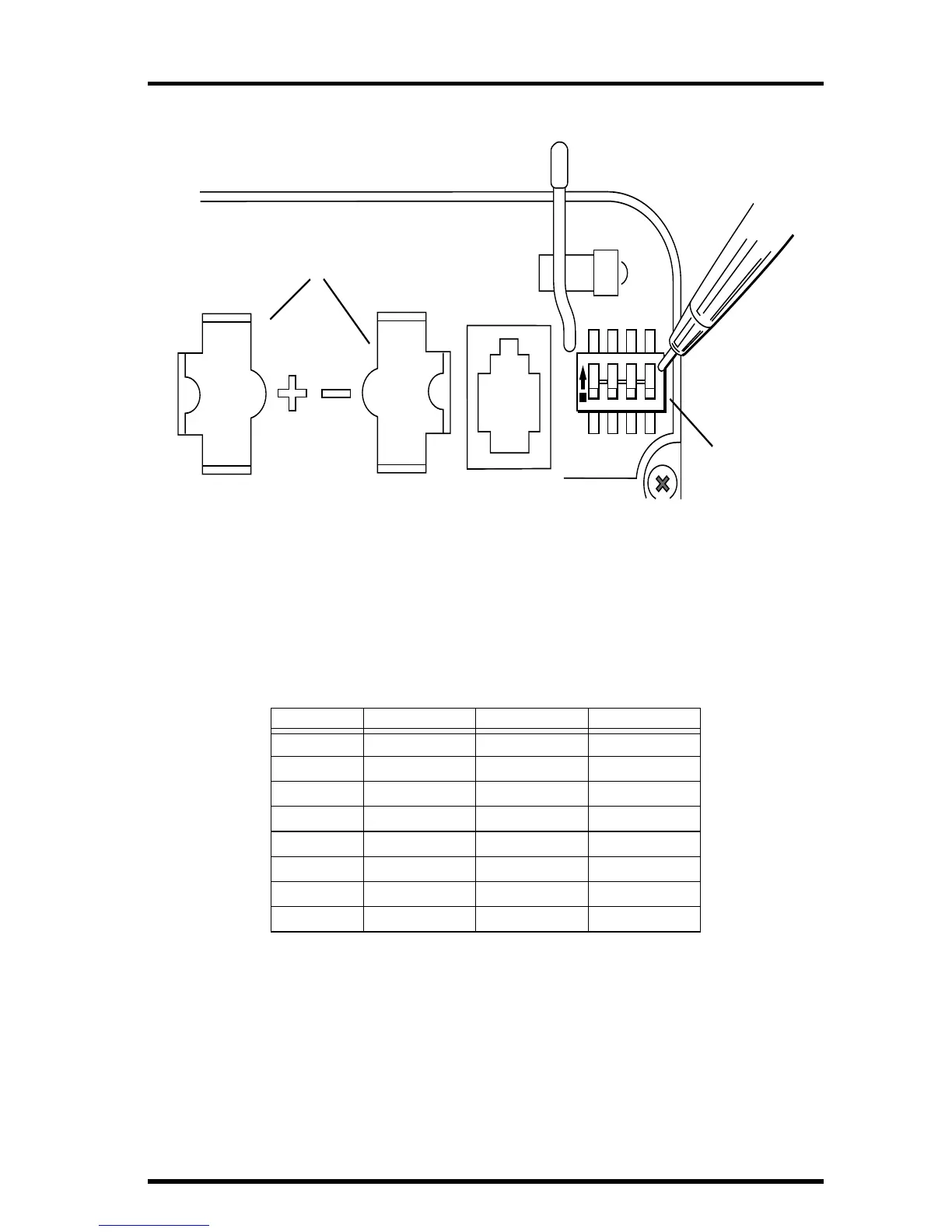

DIP SWITCHES IN TOP-RIGHT CORNER OF SIM (ILLUSTRATION HAS BEEN ENLARGED FOR CLARITY)
To change to another ID, use a ballpoint pen or paper clip to toggle DIP
switches #1, 2, and 3. The settings for transmitter IDs 1 – 8 are shown in the
table below:
Use this table to ensure that each wireless transmitting station in your system is
broadcasting on its own transmitter ID.
Please remember to set your Vantage Pro console/receiver(s) to the same IDs
as the transmitters, as described in Console Manual: “Setup Mode – Screen 2:
Selecting Transmitters”.
ID CODE SWITCH 1SWITCH 2SWITCH 3
#1 (default) off off off
#2 off off ON
#3 off ON off
#4 off ON ON
#5 ON off off
#6 ON off ON
#7 ON ON off
#8 ON ON ON
1234
ON
Battery Holder
Antenna
DIP Switches
