3KP64 - 3.11
3000PLUS WITH 5D64 INSTRUCTION MANUAL V. SB.2

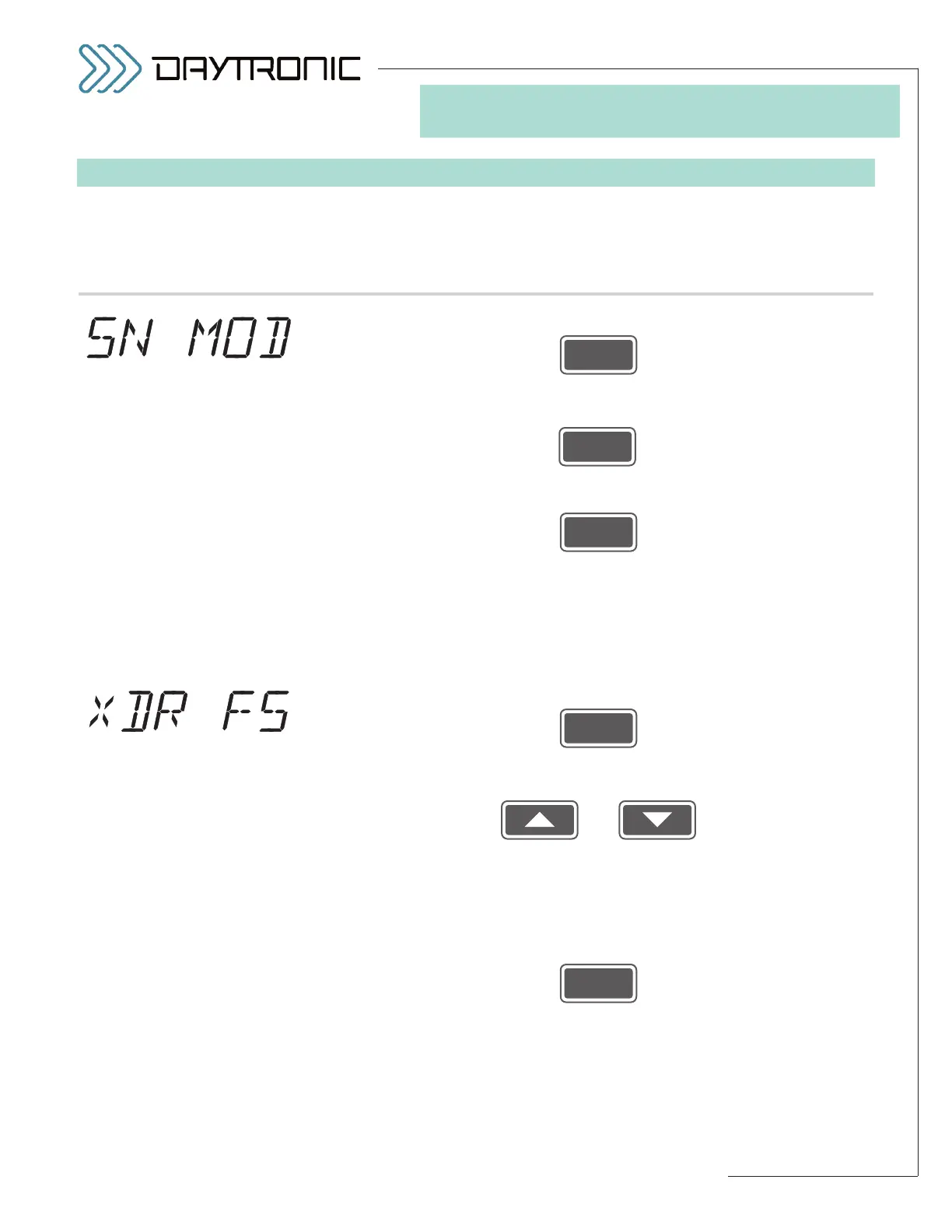

SETUP STAGE 4(AX): ABSOLUTE TRANSDUCER CALIBRATION
When the
3000PLUS
displays this . . . Do this . . .
ST
and
CL
are lit.
3. FRONT-PANEL CONFIGURATION
AND CALIBRATION
4(AX).a. Press
4(AX).b. The currently specified
SENSITIVITY MODE for the installed 5D64
module will be displayed. Press
repeatedly to cycle through the list of allowed values (shown left).
When the desired mode is displayed, press
NOTE: The sensitivity mode indicates the way you want the sensitivity
of your source transducer to be expressed—either in
“Volts per Unit”
or “Volts Full Scale.”
If you selected a SENSITIVITY MODE of “V/UNIT,”
you should now
proceed directly to the entry of
TRANSDUCER SENSITIVITY in Step
4(AX).e, below.
4(AX).c. Press
4(AX).d. The last-entered
TRANSDUCER FULL-SCALE RANGE will be dis-
played (having the decimal-point precision specified in Step 2.d). Use
and
as explained in Section 3.A to adjust the displayed number to the
desired value. This will normally be the
full-scale rating of the source
transducer
, as stated by the transducer manufacturer, expressed in
desired measurement units (e.g., for a DC-to-DC LVDT, 500 (milli-inch-
es, full-scale)).
Then press
NOTE: TO AVOID POSSIBLE DAMAGE TO THE TRANSDUCER,
YOU SHOULD NOT ENTER A TRANSDUCER FULL-SCALE RANGE
THAT IS LESS THAN THE FULL-SCALE OUTPUT (“FSU”) VALUE
ENTERED IN STEP 2.g.
(cont’d)
