SETUP STAGE 4(T): TWO-POINT CALIBRATION
(cont’d)

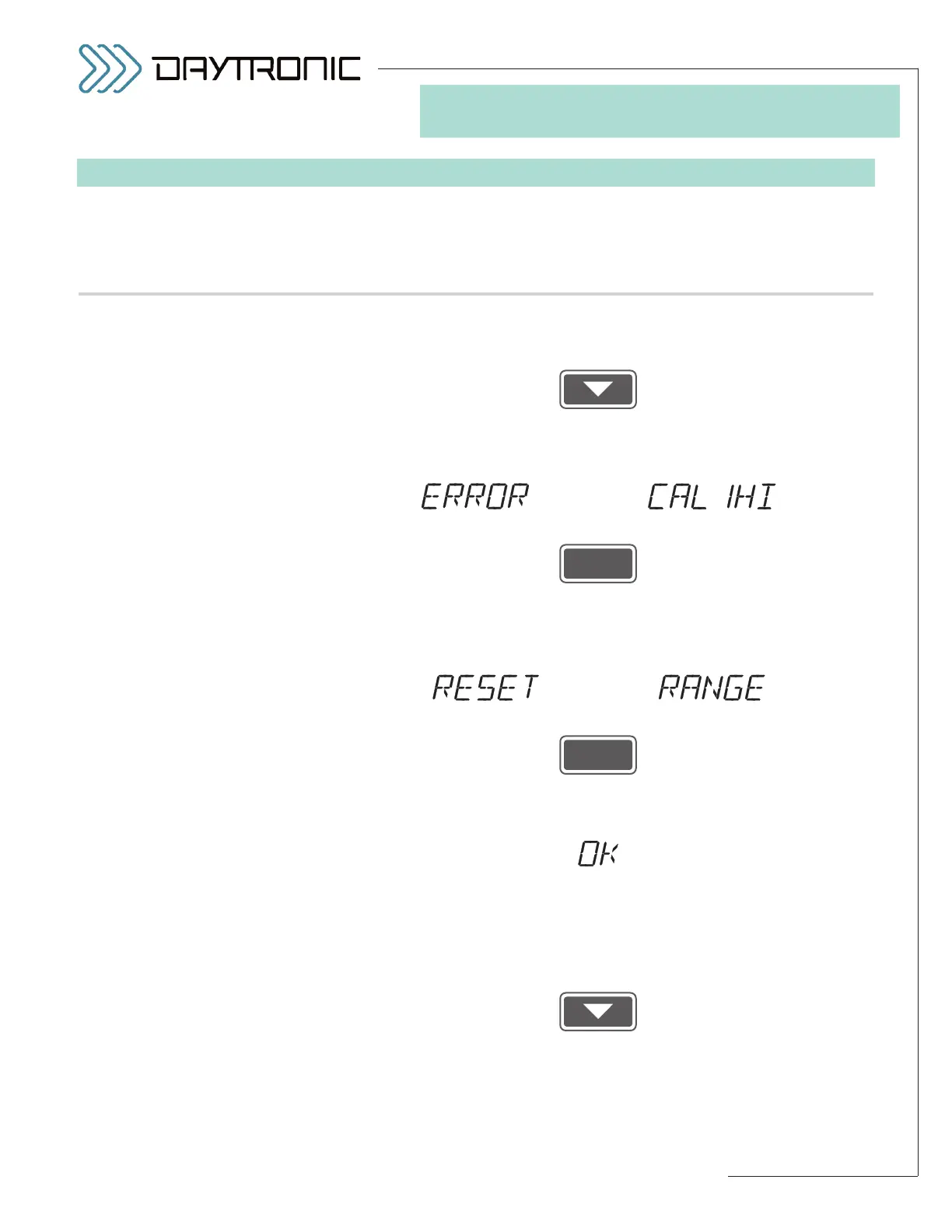

When the
3000PLUS
displays this . . . Do this . . .
If the displayed zero-point reading is not satisfactory, you may perform
additional “CAL 1” adjustment by answering “NO” to the “OK?” query—
that is, by pressing
—which will return you to Step 4(T).a.*
If the offset calculation yields a value that is
too high (an absolute value
greater than 20%), you will see a display of
alternating with
Press
to acknowledge the error message. The instrument will now determine
whether or not the
RANGE setting (Step 2.b) can be adjusted to allow
the amount of input offset specified by the calculated value.
If a
RANGE readjustment is possible, the 3000PLUS will display
alternating with
If you want the
RANGE value to be appropriately reset, press
to answer “YES.” The new
MODULE INPUT OFFSET will be applied to
the instrument’s output—along with the new
RANGE setting—and you
will see a display of
alternating with the
“LIVE” SCALED OUTPUT READING. As explained
above, you can answer “YES” to the “OK?” query (If the reading that is
now displayed corresponds sufficiently to your desired
ZERO POINT
OUTPUT READING
) by pressing ENTER, or you can answer “NO” by
pressing the
DOWN button (thus returning to Step 4(T).a).*
If you do not want the
RANGE value to be reset, press
to answer “NO.” You will be returned to Step 4(T).a.
If the 3000PLUS is not able to adjust the
RANGE setting to accommo-
date the calculated offset, you will be automatically returned to Step
4(T).a. Repeat the procedure, but enter a smaller
ZERO POINT value.
(cont’d)
ST
and
CL
are lit.
3. FRONT-PANEL CONFIGURATION
AND CALIBRATION
* In this case, the 3000PLUS instru-
ment’s
MODULE INPUT OFFSET
(MIO)
is NOT automatically reset
to “00.00” (zero)—see note on the
previous page. When displayed
once more, the zero-point reading
will reflect the last change you
made to this number, so that it can
be further adjusted via the
UP/DOWN buttons.
To Next Page
