INTRODUCTION
Congratulations on your purchase of a dbx graphic equalizer. All dbx graphic equalizers are high performance multi-
functional units designed to deliver all the flexibility and power that professional users demand. We recommend that
you take a moment to read through this operation manual. It provides information that will assist you from system set-
up to EQ applications. The 20 Series Equalizers include the following features:
• Revolutionary dbx TYPE III™ Noise Reduction capable of restoring up to 20dB S/N ratio
• Proprietary patent-pending PeakPlus™ Limiter for system protection
• Switchable range between ±6dB and ±15dB
• Balanced inputs and outputs
• XLR, Barrier Strip, and 1/4” TRS connectors
• -12dB/+12dB input gain range
• 18dB/octave 40Hz Bessel Low-Cut filter
• Chassis/signal ground lift capability
• Internal power supply transformer
• Power-off hard-wire relay bypass with 2-second power-up delay
INSPECTION
Verify that the equalizer’s package contains the following:
• Equalizer unit matching serial number marked on package
• AC power cord
• Operation Manual
• Registration Card
• Four rack mount screws and washers
If any of these items are missing please contact dbx customer service at the number provided on the back cover of this
manual.

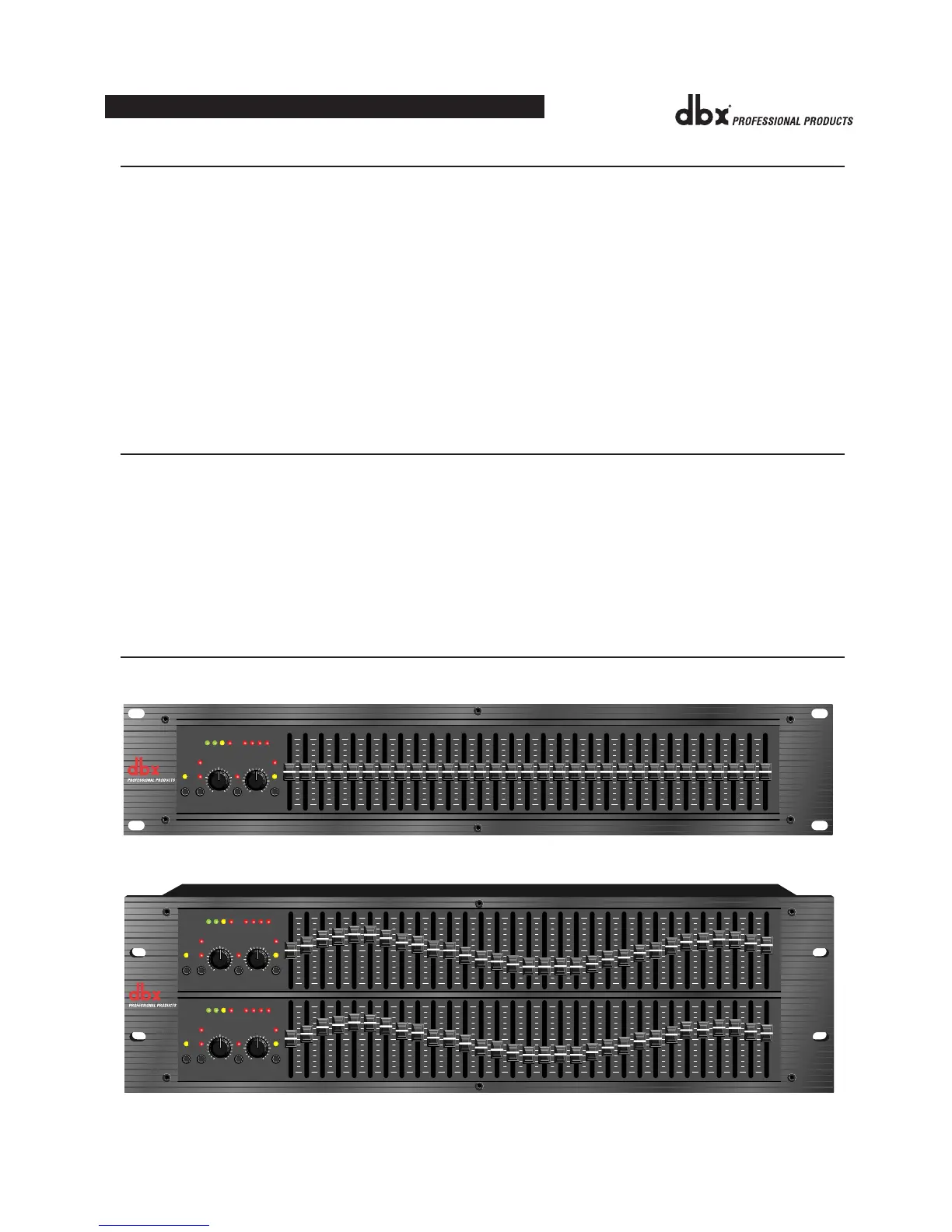

OPERATING CONTROLS
Front Panels
2031 - single channel 31 band graphic equalizer
2231 - dual channel 31 band graphic equalizer
2
OPERATION MANUAL
