dbx 222 - Using the 222 with Signal Processors

Using the
222in
Conjunction
with a
Graphic Equalizer
lf
you
use a
graphic
equalizer with
your
sound system,
the
equalization
must nof
be introduced between the
222'sIAPE RECORDER OUTPUTS
and the tape
recorder's
inputs, or
between
the recorder's
outputs
and
the
222',s
TAPE RECORDER
INPUTS.
ldeally
the dbx
222
is installed in
the
preamp's
tape monitor loop, and
the
graphic
equalizer is installed
between
the
preamp
output
and the
power
amplifier
input
as shown
in
Figure
5.
Alternately,
install the
graphic
equalizer
in the
preamp's
tape
monitor loop
and
place
the 222in the
graphic
equalizer's tape
monitor loop,
but be sure to set
the equalizer
so
it's effect
comes after the dbx unit.
9

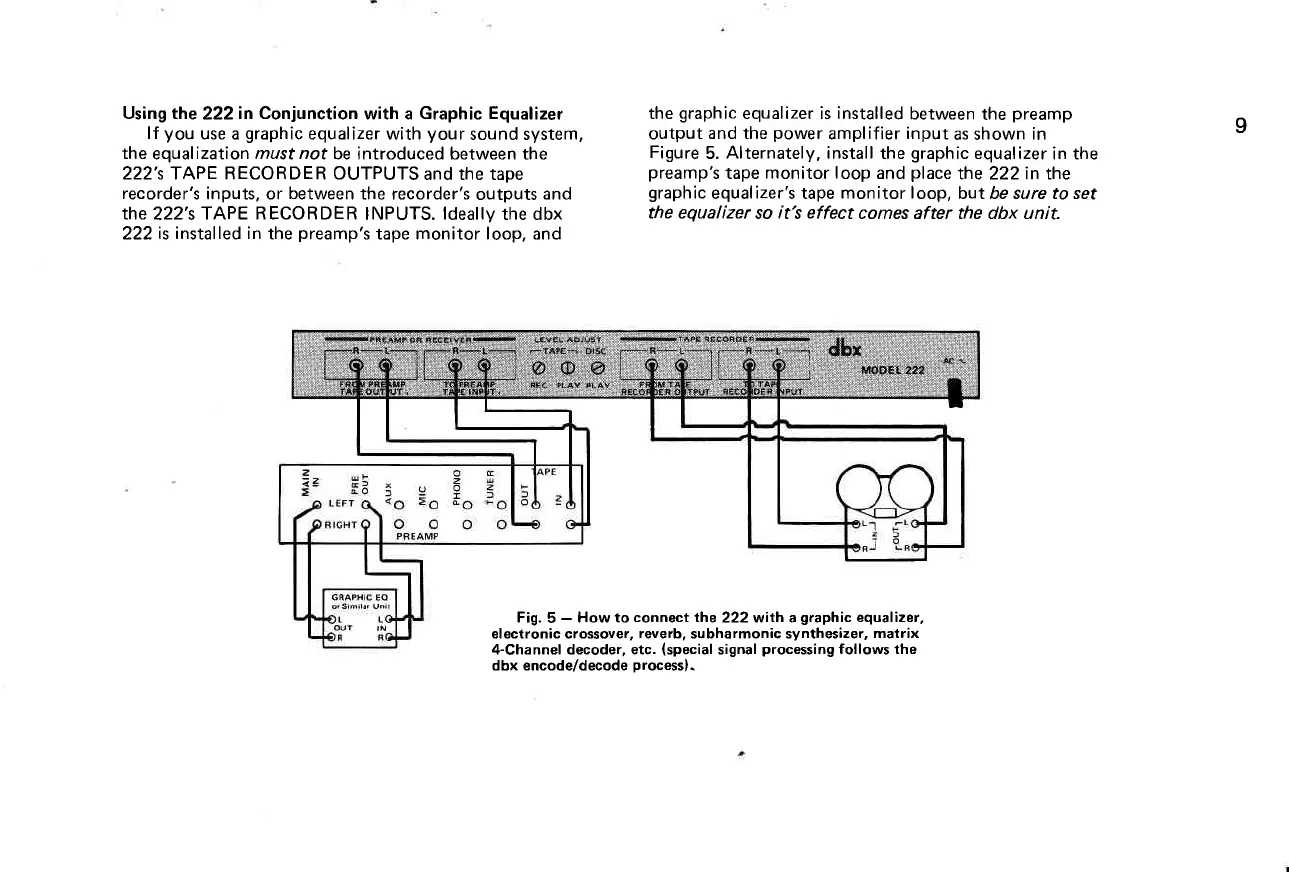

Fig.
5
-
How to
connect lhe
222 with a
graphic
equalizer,
electronic crossover,
reverb,
subharmonic synthesizer,
matrix
4-Channel decoder, etc.
(special
signal
processing
follows the
dbx encode/decode
processl.
