In addition to the pre-crossover EQ options within the signal path, the DriveRack
®
PA also offers
a 2 or 3-band parametric EQ after the crossover section. The parameters for the post-crossover
EQ are as follows and are user adjustable.
PEQ On/Off
Turns the PEQ band on and off.

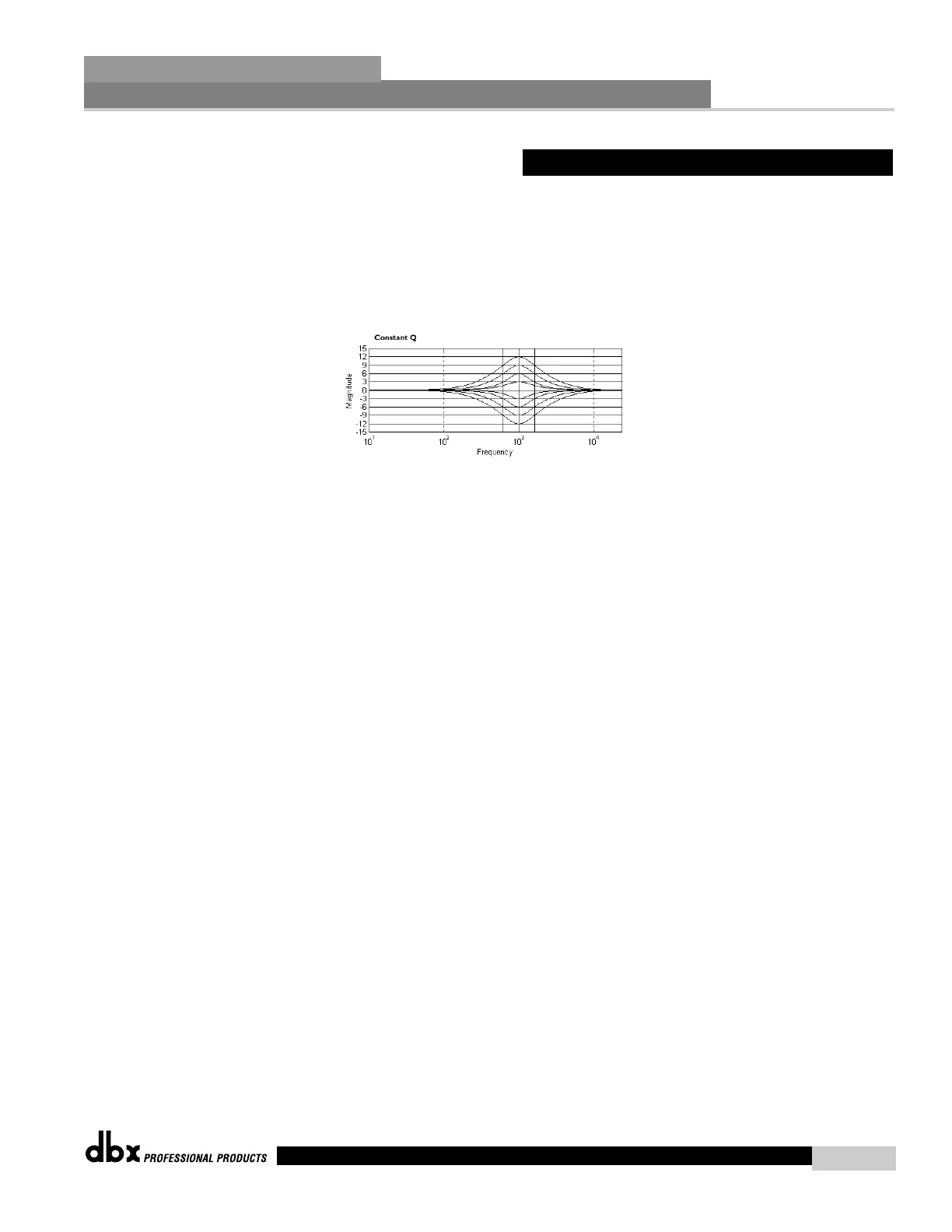

The following figure shows the constant Q parametric filter.
Flatten/Restore
This parameter either flattens the PEQ or restores the PEQ to its original shape.
Type
This parameter selects the PEQ type. Types include: 1. Bell-All parametrics are bell-shaped 2.
HShelf - One shelf is High, while all others are bell 3. LShelf - One shelf is Low, while all oth-
ers are bell and 4. LHShelf - One shelf is High and one is Low, and the others are bell.
Band (1-3) Frequency 20Hz to 20kHz
Selects the frequency of the selected band of the parametric EQ.
Level (1-3) -12dB to 12dB
Sets the peak level of the selected parametric EQ.
Q (1-3) 0.20 to 16 dB
Sets the Q or Bandwidth of the selected Parametric EQ.
