4. Reticle Depression Readout
Window
Indicates reticle depression in MAN mode.
5. Reticle Depression Knob Adjusts reticle depression in MAN mode. Reticle depression is measured
in mils.
6. RET INT Knob
To adjust the intensity of reticle press R.Alt + R.Shift + H (decrease)
or R.Shift +R.Ctrl+ H (increase).

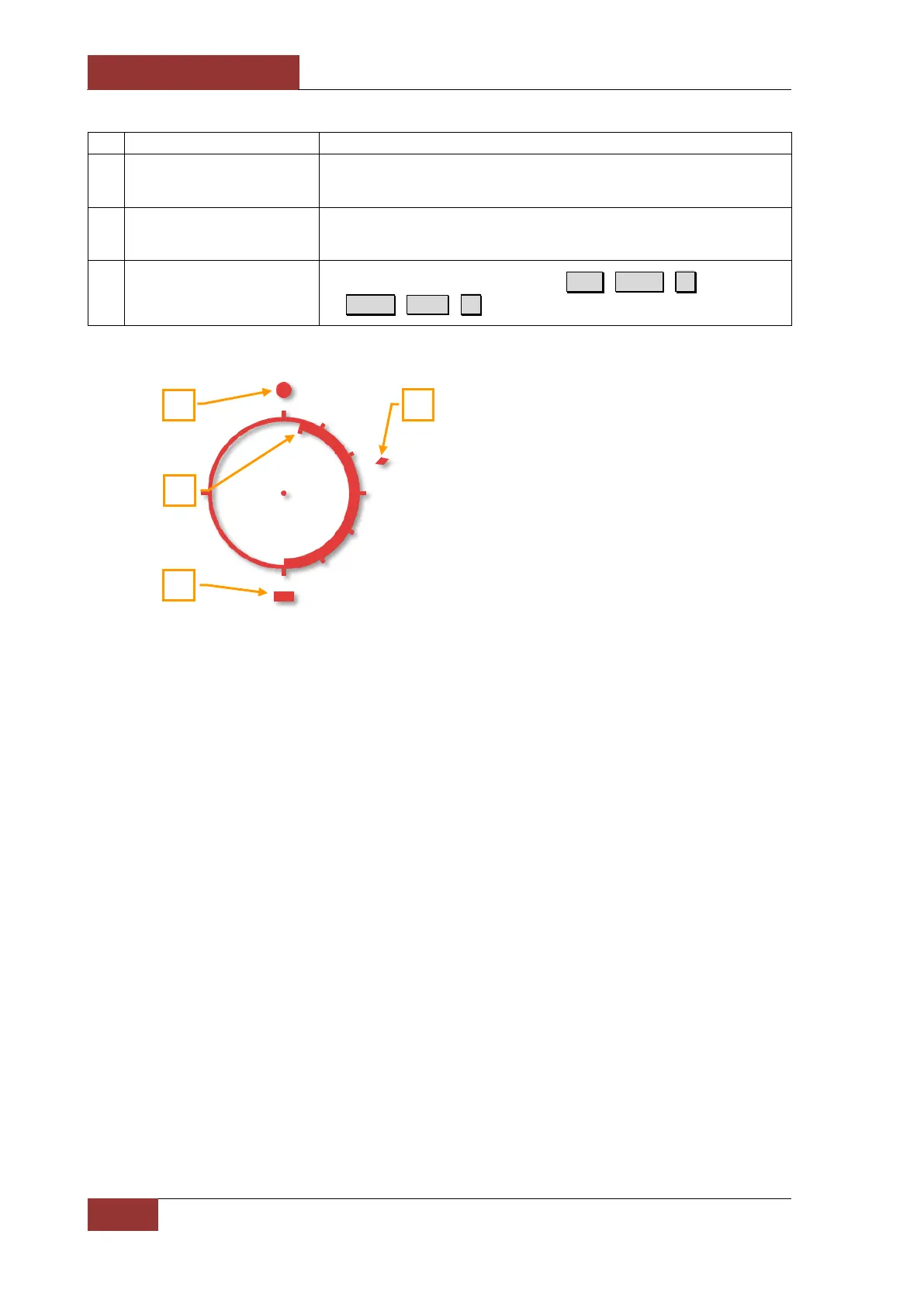

Reticle with aiming markers:
1. Range Bar.
2. Minimum Range Marker.
3. In-Range Marker
4. Excess-G Marker.
The reticle consists of a pipper and a circle.
After radar locks-on to the target, aiming markers appear on the circle.
The range bar extends from the 6-o’clock position on the inner right side of the circle toward the 12-
o’clock position, depending on the target range.
Each range index indicates 1000 feet in gun modes and 10,000 feet in missile mode. The range
indexes are located on the outer right side of the circle.
When the range bar is at 6-o’clock position, range to the target is 60,000 feet in missile mode and
6000 feet in gun modes.
Decrease in target range causes the bar to move towards 12-o’clock position, and when the target
range is within the permissible launch envelope, an in-range marker appears.
The in-range marker disappears when the target is beyond the minimum range of the weapon.
When the target range is equal to minimum launch range or less, a minimum-range marker appears.
3
2
4
1
