Instrument panel

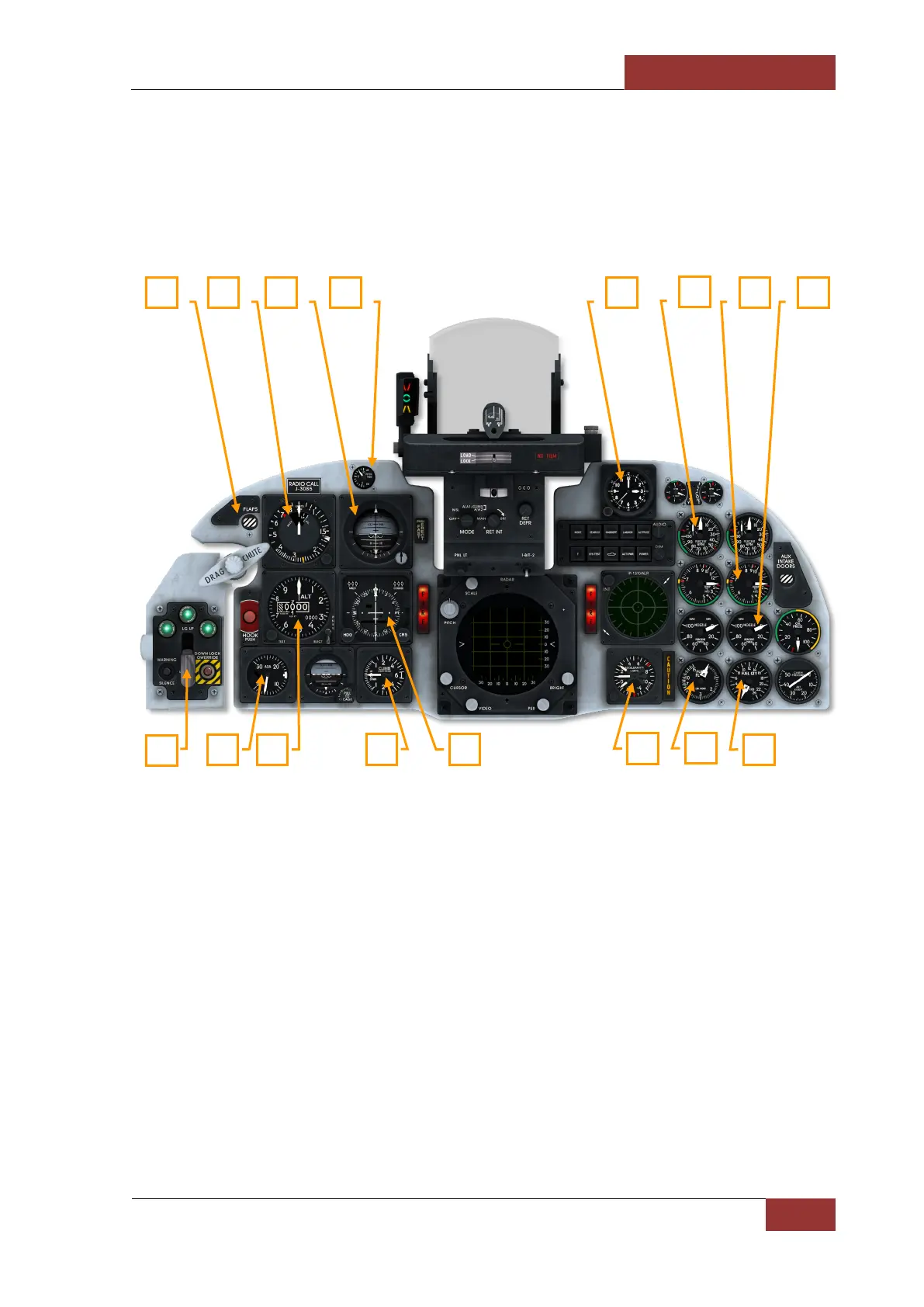

The instrument panel contains instruments and indicators. The main flight instruments are grouped
together and include:
1. Flap Indicator.
2. Airspeed/Mach Indicator.
3. Attitude Indicator.
4. Pitch Trim Indicator.
5. Clock.
6. Engine Tachometers.
7. Exhaust Gas Temperature Indicators.
8. Nozzle Position Indicators.
9. Landing Gear Lever.
10. Angle-Of-Attack Indicator.
11. Altimeter.
12. Vertical Velocity Indicator.
13. Horizontal Situation Indicator.
14. Accelerometer.
15. Fuel Flow Indicator.
16. Fuel Quantity Indicator.
1 2 4
9
16
13
14
10
5
12
7 3
11
6
8
15
