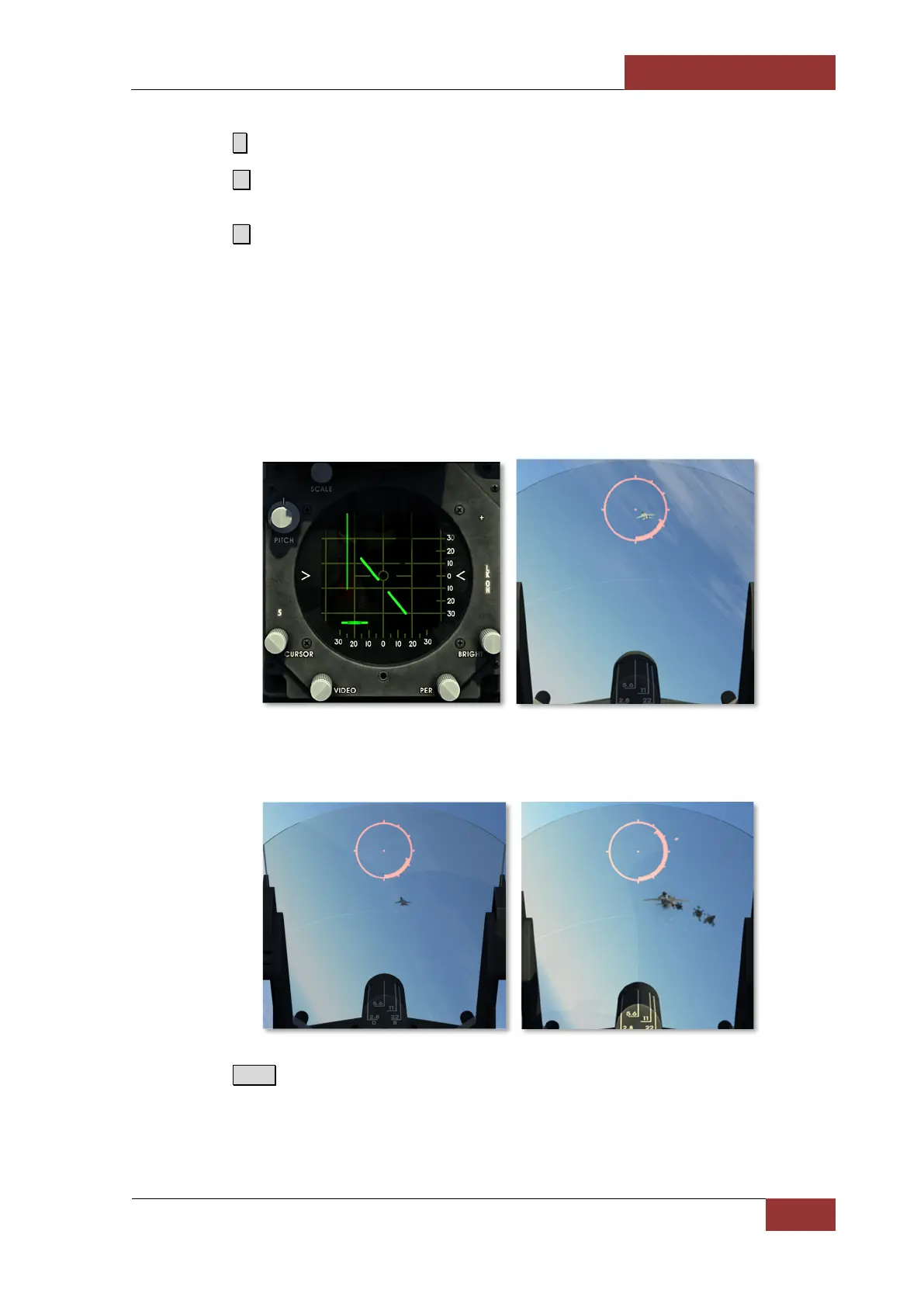

1. Press I to turn on the radar.
2. Press 4 to select DOGFIGHT MISSILE mode. Once the mode is activated, the radar will
attempt to acquire the target. The radarscope scale will be automatically adjusted to 5 miles.
3. Press С to arm the guns. The sight system will operate in А/А1 mode.
After the target mark appears on the radarscope, maneuver the aircraft to achieve a target position
corresponding to 0° in azimuth and elevation. Continue approach to the target up to 5,600 ft range.
If target is between 500 and 5600 ft range, radar locks on to target automatically.
After target is locked on:
• LK ON light illuminates;
• Targeting information is shown on reticle.
4. Maneuver the aircraft to move the pipper closer to the target. When aircraft reaches the
launch range of 2700 feet, in-range marker will appear on the sight.
5. Press Space to open fire within 1 second before the pipper reaches the target.
