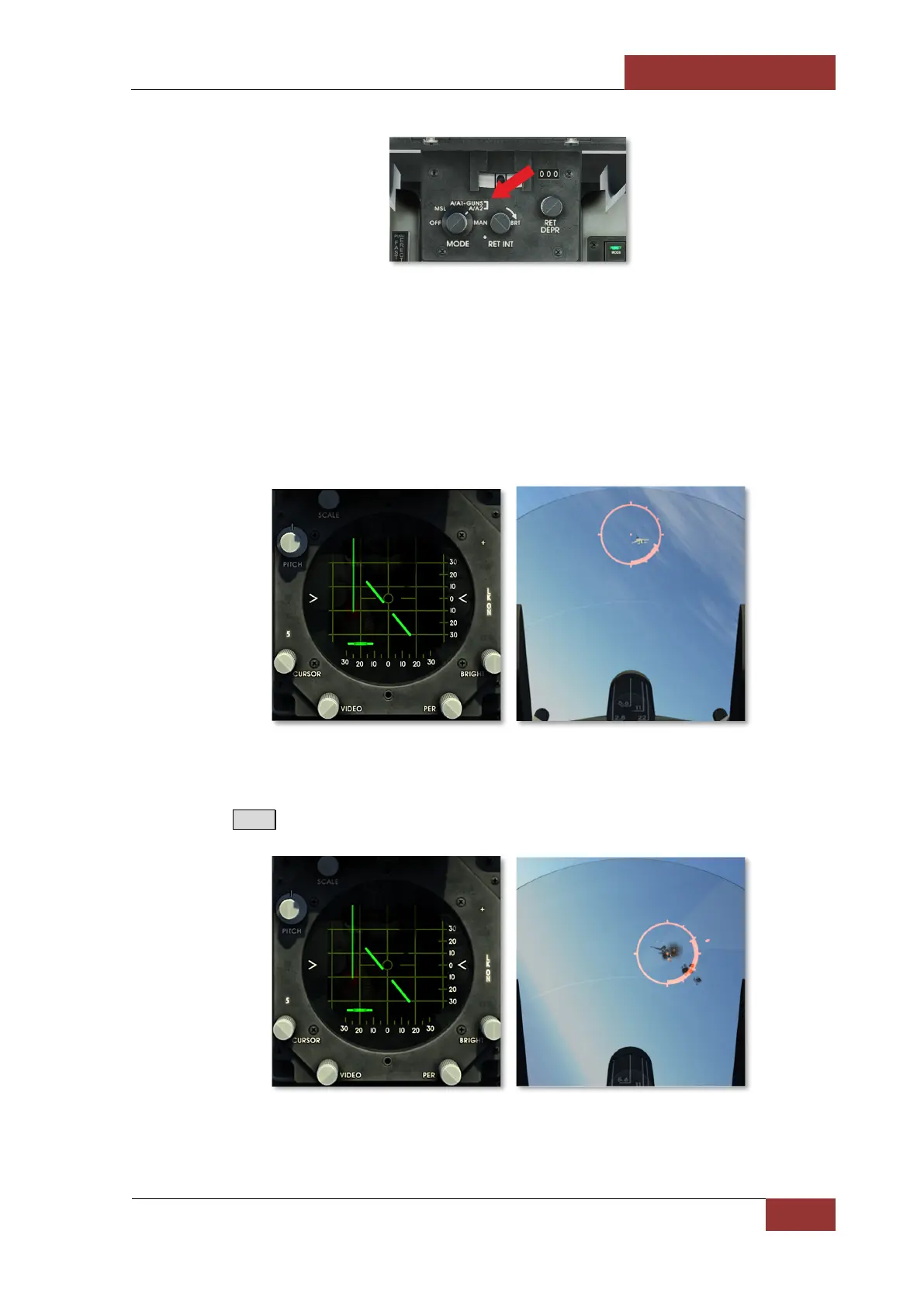

After the target mark appears on the radarscope, maneuver the aircraft to achieve a target position
corresponding to 0° in azimuth and elevation. Continue approach to the target.
If target is between 500 and 5600 ft range, radar locks on to target automatically.
After target is locked on:
• LK ON light illuminates;
• Range bar appears on the sight reticle.
4. Maneuver the aircraft to align the reticle pipper with target. When aircraft reaches the launch
range of 2700 feet, in-range marker will appear on the sight.
5. Press Space to open fire.
