F-86F Cockpit
Rudder pedals
The rudder pedals deflect the rudder and control the yaw movements of the aircraft. While on the
ground the pedals are used for steering when nose wheel strut is unlocked by pressing corresponding
button on the flight stick L.Alt + Q .
Instrument panel

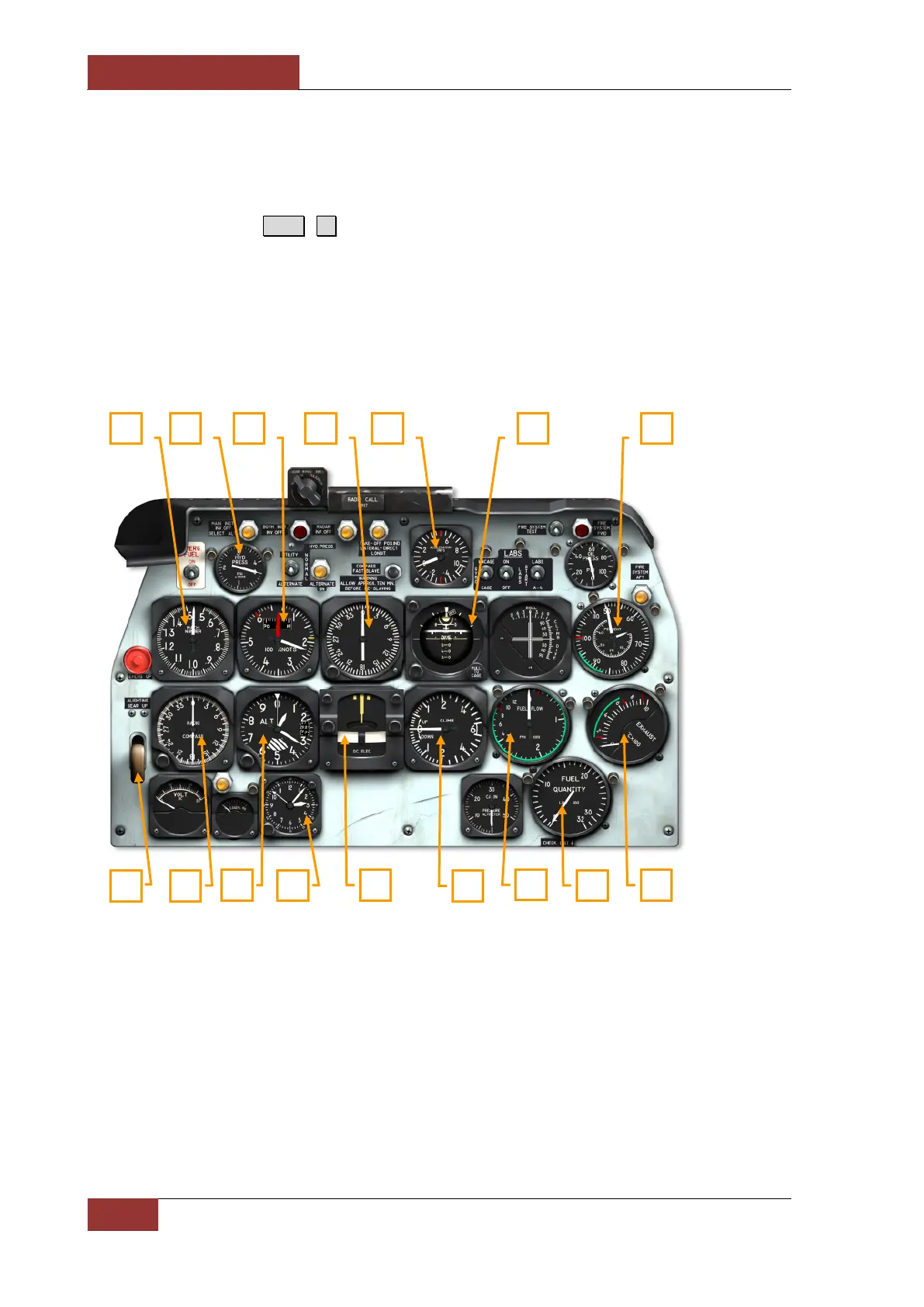

The instrument panel includes a variety of flight instruments and indicators. The primary flight
indicators are grouped together in the center of the console.
1. Hydraulic pressure gauge;
2. Accelerometer;
3. Mach speed indicator (М);
4. Airspeed indicator;
5. Heading indicator;
6. Attitude indicator;
7. Engine RPM indicator;
8. Landing gear lever;
9. ADF;
10. Altitude indicator;
11. Turn and slip indicator;
12. Vertical velocity indicator;
13. Fuel flow meter;
14. Exhaust gas temperature (EGT);
15. Clock;
16. Fuel gauge.
