7 STANDARD PROGRAMMING

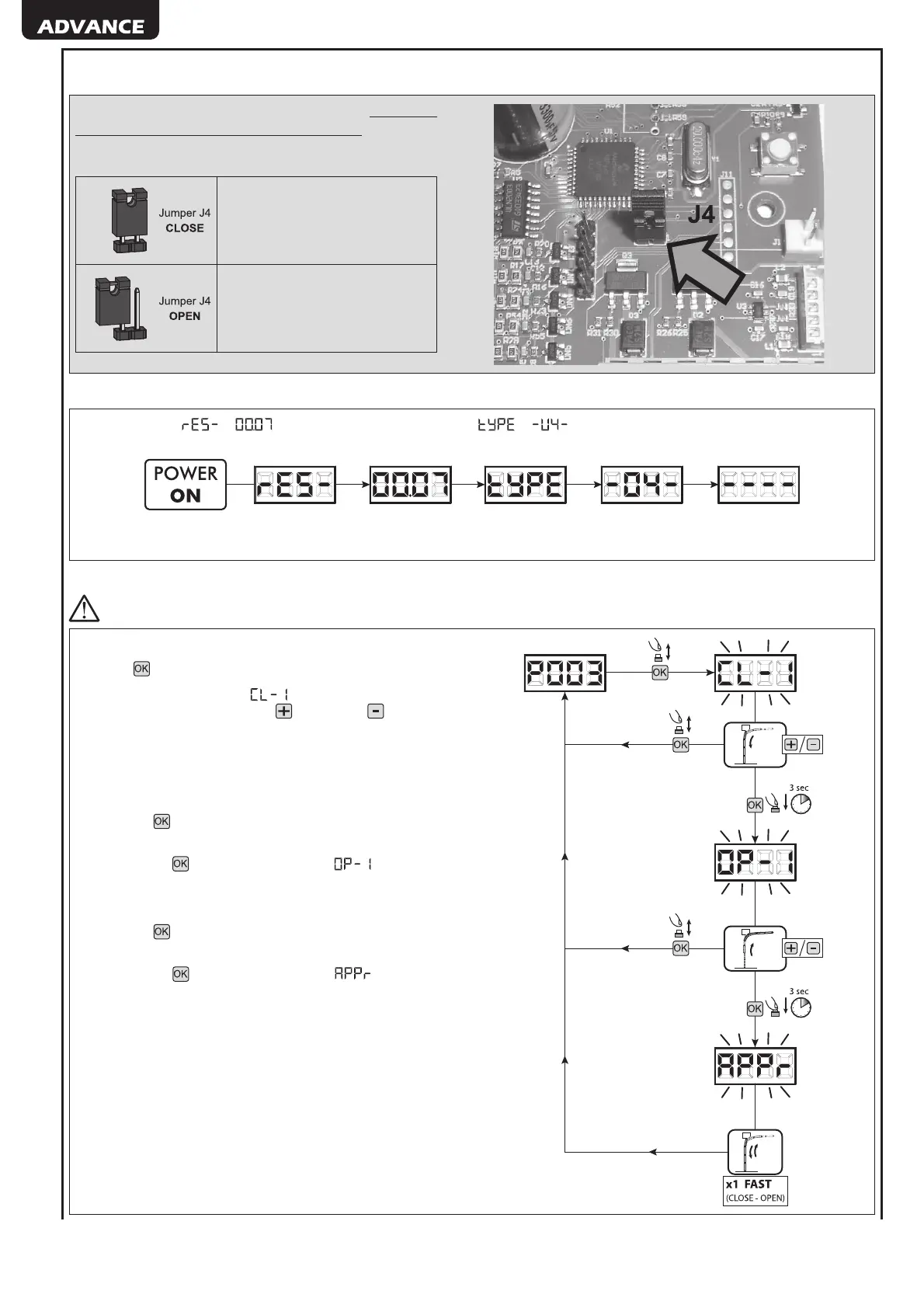

To access the control unit programming functions, remove the

lid from the electric box and remove Jumper J4 from the bo-

ard.

NORMAL

FUNCTIONING

PROGRAMMING

MODE

1 Power Supply

When turned on, “ ”, “ ” (or the current ﬁ rmware version) “ ”, “ ” appear on the display in sequence followed by the

closed gate symbol “----”.

* If the control panel has already been programmed and the power fails or is switched off - once power is returned and a START command

is given, the position reset procedure is performed (see “rESP” in the table “WORKING STATUS MESSAGES” on page 41.

2 Motors stroke learning

ATTENTION: during the learning cycle there is no protection by the obstacles detection sensor!

1. When you remove the Jumper J4, the display will shows P003;

2. Press button to go on with the setting;

3. As you see the message “

” blinking, verify the right door

movements using the buttons (OPEN) and (CLOSE);

Attention: if the movement is not correct, switch off the

power supply, invert the motor connections and repeat the

check.

Set the door in the position of total closure;

4. Push the

button and hold it for 3 sec. (if you leave it before

3 sec., the operation will be interrupted);

5. Release the

button as soon as the “ ” message start

blinking;

Set the door in open position;

7. Push the

button and hold it for 3 sec. (if you leave it before

3 sec., the operation will be interrupted);

8. Release the

button as soon as the “ ” message start

blinking;

9. An opening and closing manoeuvre will follow, at normal speed;

at the end of the procedure the display will show P003.
