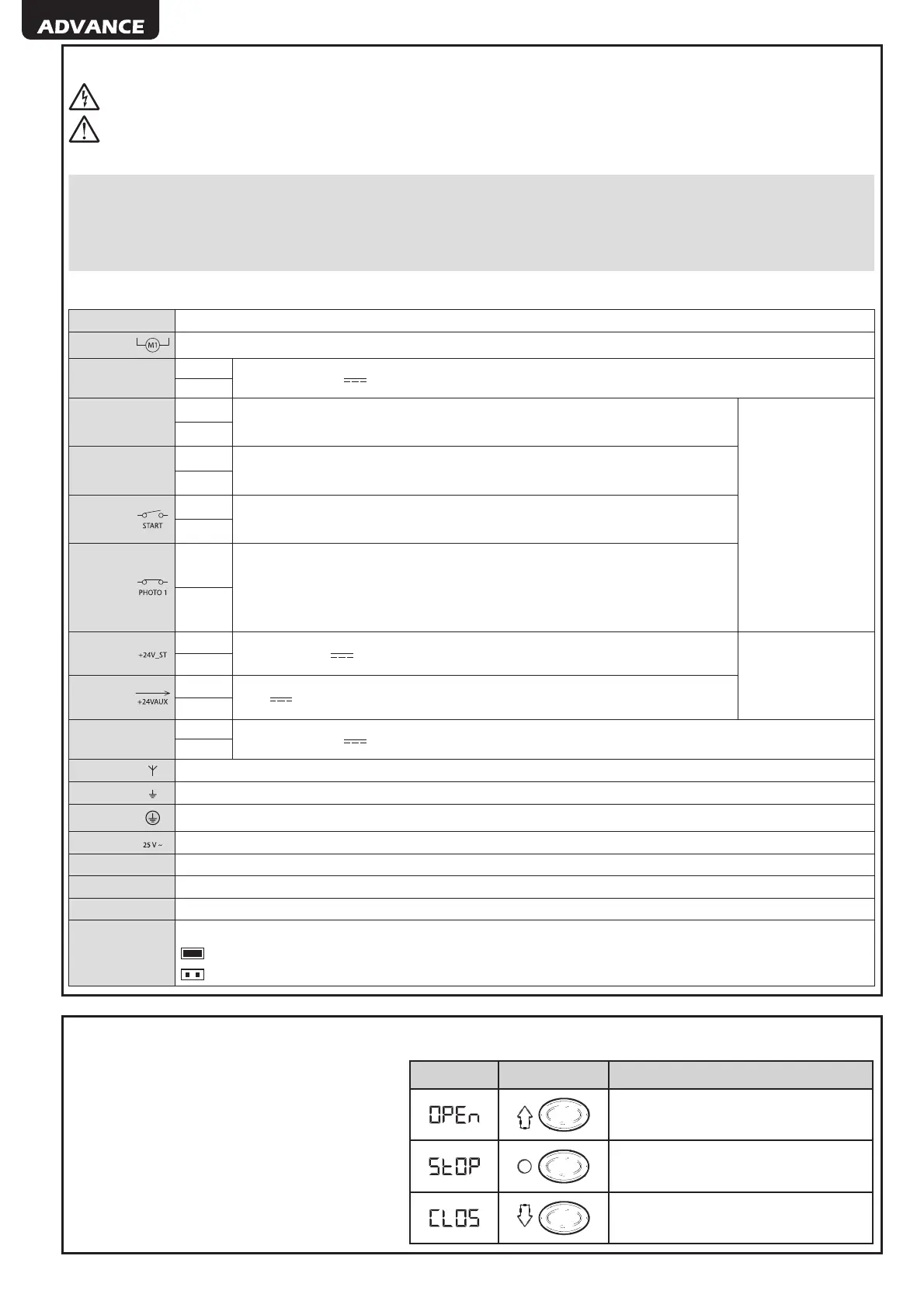

5.2 ELECTRICAL CONNECTIONS FOR THE ADVANCE XL MODELS
! Risk of malfunction due to improper installation !
! Risk of personal injury and property damage due to electric shocks !
Execute the wiring following the directions of “Table 2” and diagram (Pag. 33).
WARNING To ensure an appropriate level of electrical safety always keep the 230V power supply cables apart (minimum 4mm in the
open or 1 mm through insulation) from low voltage cables (motors power supply, controls, electric locks, aerial and auxiliary circuits
power supply), and fasten the latter with appropriate clamps near the terminal boards.
WARNING Connect to the power supply 230 V ~± 10% 50 Hz through a multi pole switch or a different device that can ensure multi pole
disconnection from the power supply, with a contact opening of 3 mm.
Table 2 “terminal board connections”
1-2-3-4 Motor 1 encoder output
5-6
Motor 1 output max 5A
7-8
7 (+)
Confi gurable 24V output 1 max 5W (see P066 for values that can be selected)
8 (-)
9-13
9 - N.O.
Input 4. Unused
If the installation requires different
commands and / or additional to the
standard, you can confi gure each in-
put to the required rate.
Refer to Chapter
“Advanced Programming”.
13 - Com
10-13
10 - N.O.
Input 3. Unused
13 - Com
11-13
11 - N.O.
Input 2 START. In case of intervention it provokes: the operator opening or closing. It
may operate as “inversion” mode (P049=0) or “step by step” mode (P049=1).
13 - Com
12-13
12 - N.C.
Input 1 PHOTO 1. When enabled (see parameter P050 in the table), activation of
PHOTO 1 provokes: an inversion of direction (during closing), the arrest of the move-
ment (during opening), prevent the start (gate closed). If unused, short circuit.
13 - Com
14-15
14 (-)
Stabilized 24 V power supply output for tested safety devices
(AUX + ST)
=
max 200mA
15 (+)
20-21
20 (-)
24 V power supply output for auxiliary devices
21 (+)
16-17
16 (+)
Confi gurable 24V output 2 max 5W (see P062 for values that can be selected)
17 (-)
18 Aerial signal input
19
Ground aerial input
CON 1
Connection of motors metallic parts
CON 2
25 V ~ transformer power supply input
CON 3 Courtesy light output
CON 4 Input for NET-NODE / MEMONET connector
CON 5 Input for NET-EXP connector
J4 (jumper)
Operating mode selection jumper:
(closed) = Normal functioning;
(open) = Programming mode;
6 BASIC FUNCTIONS
After having installed the motor and made the elec-
tric connections and adjustments, it will be possible
to command the door directly using the keys on the
electric box.
Warning: If the installation requires commands diffe-
rent from standard ones, it is possible to program the ▲
(UP) and ▼ (DOWN) buttons for the desired operation.
Refer to the table “Inputs confi guration parameters”
at page 44.
Display Key Description
Causes the door to open if pressed.
Blocks movement during any manoeuvre if
pressed.
Causes the door to close if pressed.
To Next Page
