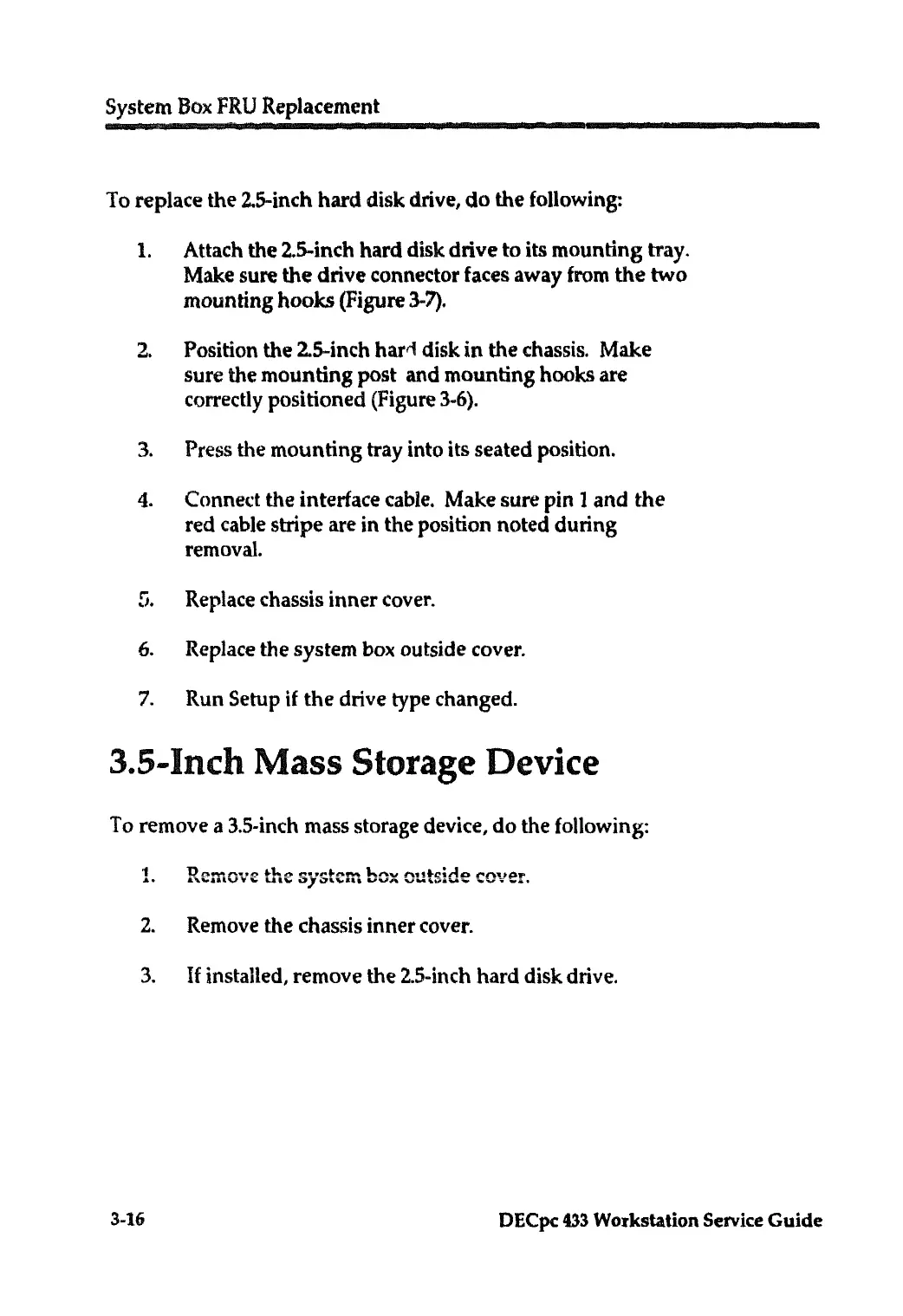

DEC DECpc 433 User Manual

System Box FRU Replacement
To replace the 2.5-inch hard disk drive, do the following:
1. Attach the 2.S..inch hard disk drive to its mounting tray.
Make
sure the drive connector faces away from the two
mounting hooks (Figure 3-7).
2. Position the 2.S..inch harri disk in the chassis. Make
sure the mounting post and mounting hooks are
correctly positioned (Figure
3-6).
3. Press the mounting tray into its seated position.
4.
Connect the interface cable. Make sure pin 1 and the
red cable stripe are in the position noted during
removal.
fl. Replace chassis inner cover.
6. Replace the system box outside cover.
7. Run Setup if the drive type changed.
3.5-Inch Mass Storage Device
To remove a 3.5-inch mass storage device, do the following:
1
...
2.
Remove the chassis inner cover.
3.
If installed, remove the 2.5-inch hard disk drive.
3-16
DECpc 433 Workstation Service Guide
