System Box FRU Replacement
4. Tag and disconnect all cables to the mass storage
device. Note the pin I location and the red cable stripe
location (Figure 3-8).
Power
Connector -·

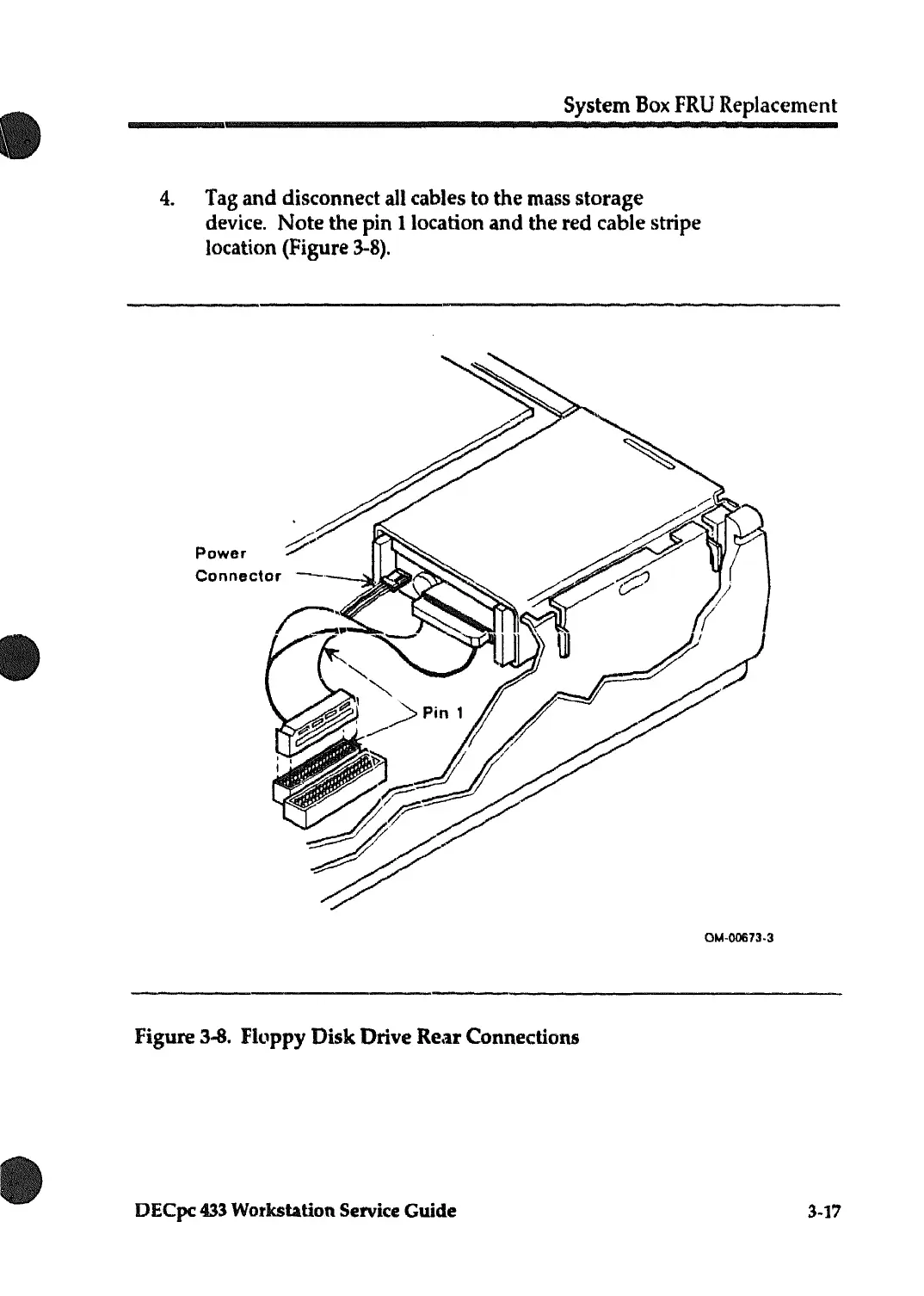

Figure 3...S. Fluppy Disk Drive Re.u Connections
DECpc 433 Worksution Service Guide
OM-00673·3
