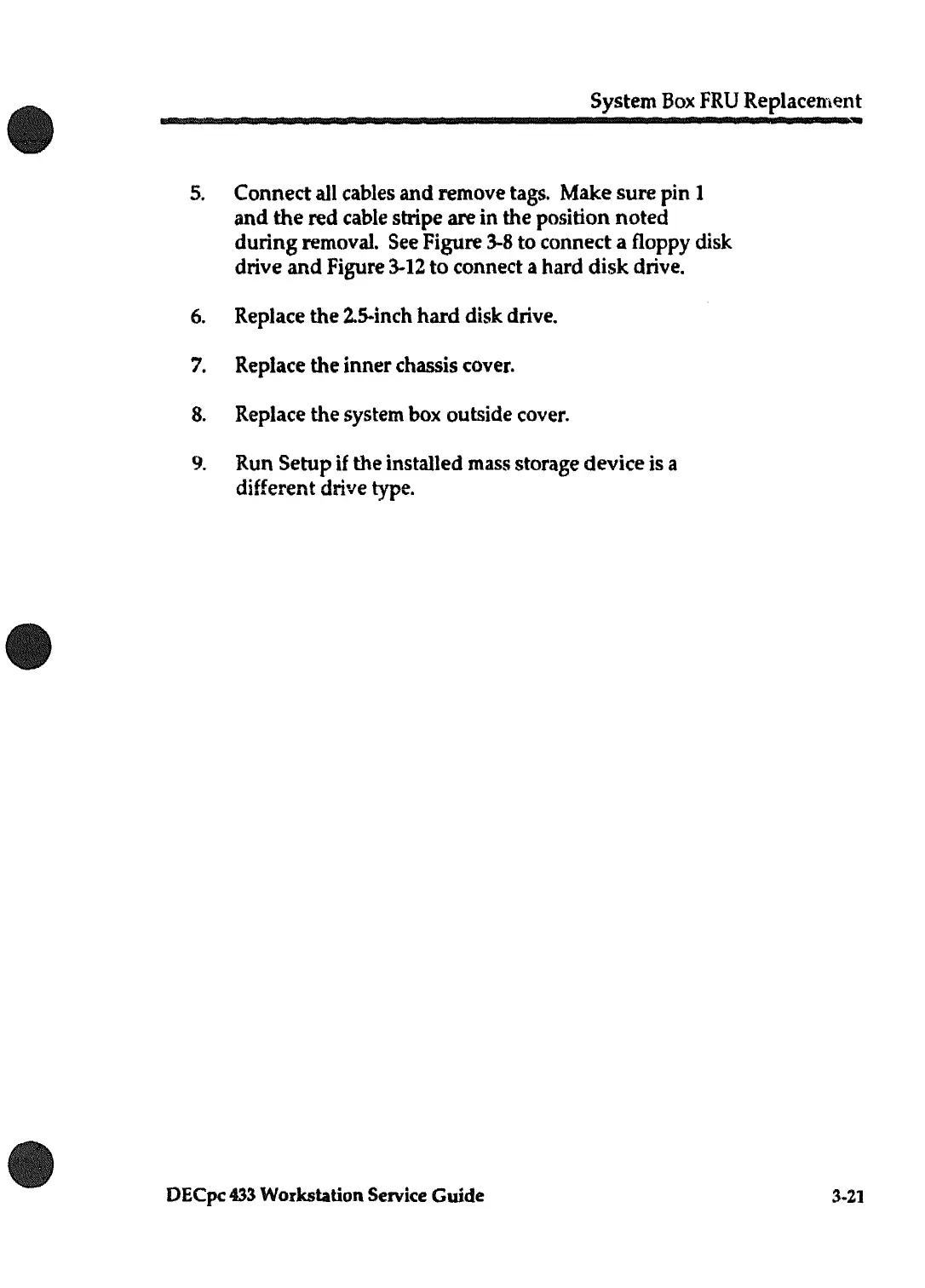

System Box FRU Replacement
................... 1111111111111111111111.-.--------------------------------------
5. Connect all cables and remove tags. Make sure pin 1
and the red cable stripe are in the position noted
during removal. See Figure 3-8 to connect a floppy disk
drive
and Figure 3-12 to connect a hard disk drive.
6. Replace the 2.S..inch hard disk drive.
7. Replace the inner chassis cover.
8. Replace the system box outside cover.
9. Run Setup if the installed mass storage device is a
different drive type.
DECpc 433 Workstation Service Guide
3-21
