WATER CONNECTION FOR YOUR ICE MAKER
Important: Be sure to use the new hose-sets supplied with the appliance to
connect to water main. Old hose-sets should not be reused.

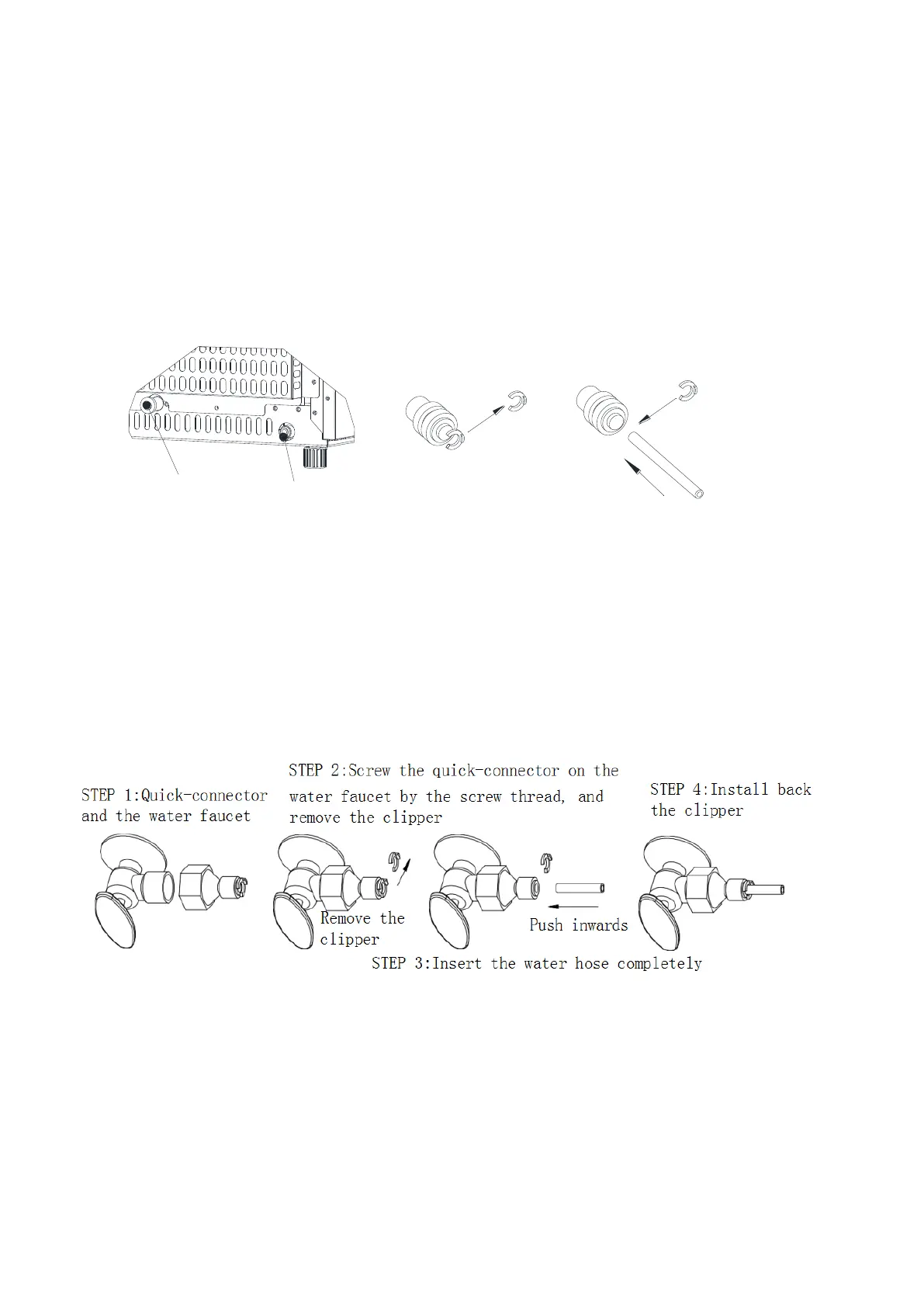

1、Connect the water supplying hose to the unit
First remove the tape on the water inlet port for water supply (indicated in the following
illustration as “B”) located at unit back, then use your other hand’s finger to press the out circle.
Insert the one end of the white water hose into the water inlet port, and push inward
completely. Install the clipper, then water hose connection is completed.
2、Connecting the water drainpipe
Pull
out
the
black
water
drainage
cap
(labeled
“
○
A”
in
above
illustration).
Then,
connect the white
drainage pipe included in accessory pack to the main water drainage pipeline.
3. Connect the water hose to the water faucet of the water main supply system
First, install the supplied water quick-connector to the water faucet by screw thread; Second,
remove the clipper from the water quick-connector. Insert the other end of the water hose into the
quick-connector port completely, then install the clipper.
Important: The water pressure of main water supply system must be 0.04-0.6 MPa at least.
