A.
Evaporator (ice-making module)
B.
Ice full detecting board: Use to detect if the inner cabinet is full of ice or not, and to check if the ice-
harvest process is complete or not.
C.
Water tank
D.
Water supplying pipe
E.
Cover board on the right side of the evaporator
F.
Water level switch installing plate
G.
Water drainpipe of the water tank: When ice-making, this pipe should be clamped in the slot of the
water tank wall; When draining, this pipe should be pulled out.
H.
Water pump
I.
Water level detecting switch

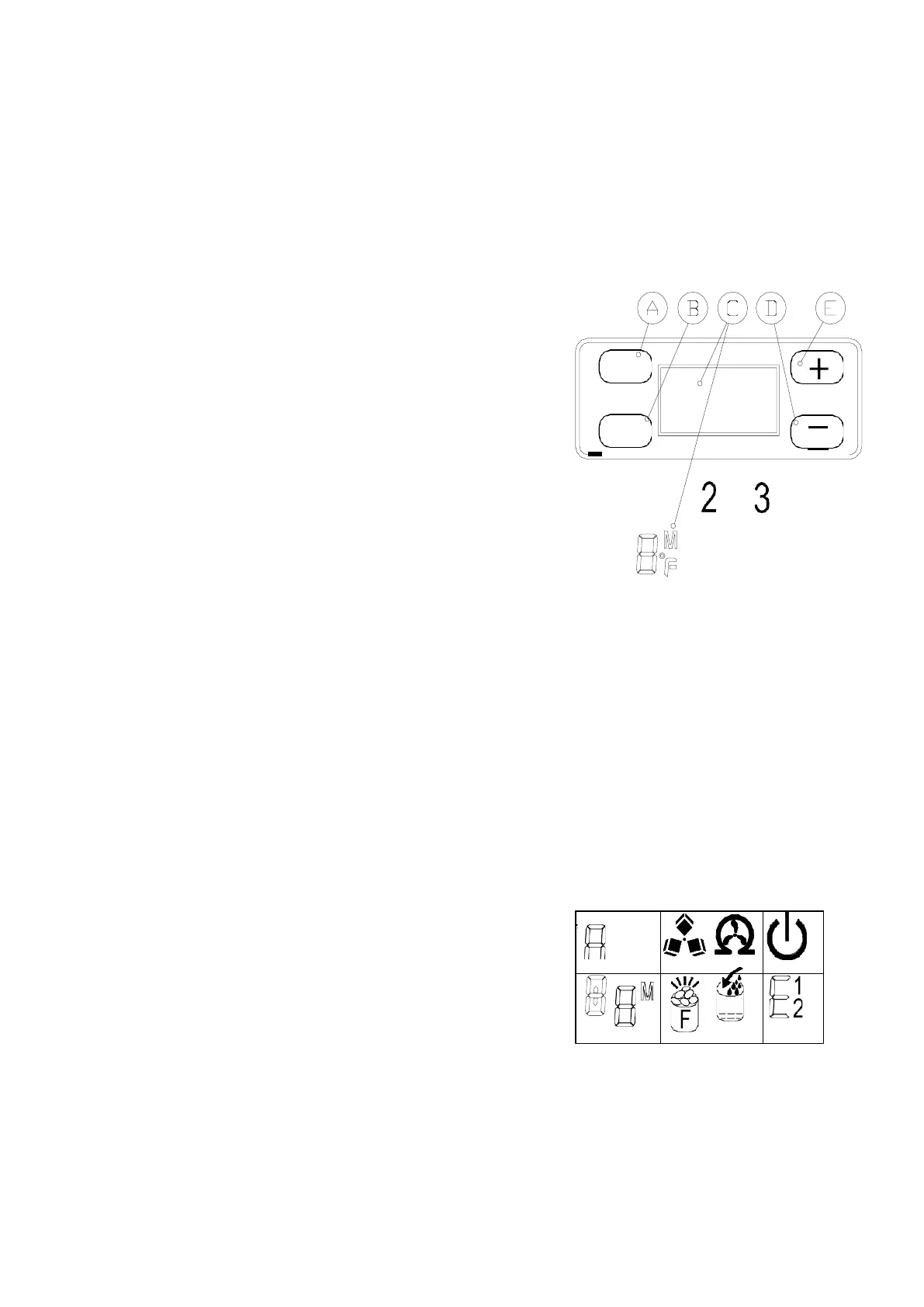

3) Operation panel
A. “TIMER/CLEAN“ button: Quickly press this button
once to enter the Timer Setting program. Press
this button for more than 5 seconds to enter the
Cleaning program.
B. “ON/OFF” button: When the unit is off, press this button to
turn the unit on. During the Self-Cleaning program, or normal ice-making
state press this button to turn the unit off immediately. If the unit it set
with the Timer, press this button to cancel the Timer setting. When the
unit is in the process of making ice, press this button for more than
5 seconds to force the unit switch to the ice harvesting process.
C. LCD Display Window (See below figure)
1.
Environmental temperature and ice-making countdown display: The ice-making countdown time is
displayed with an “M” to indicate such. The environmental temperature is displayed with an “F” to
indicate such.
2.
Making ice and deice symbol display: The machine is making ice when this symbol rotates, and the
machine is deicing when this symbol flashes.
3.
Automatic self-cleaning symbol display
4.
On/Off symbol display
5.
Error code display: When “E1” is displayed, this means the environmental temperature sensor is
damaged. When “E2” is displayed, this means there is an ice-making anomaly or a refrigerant leak.
6.
Water flow in and water shortage display: The arrow flashing indicates that the machine is in the
water. When the entire symbol is illuminated it indicates that the machine is low on water.
D. & E. Plus (+) and Minus (-) buttons: Use to adjust the ice-making process duration length (the
default setting is zero). Each press of the plus or minus button will increase or decrease the time
by 1 minute.
