Deco Chef DGUTICM01 - Explosive Drawing

7

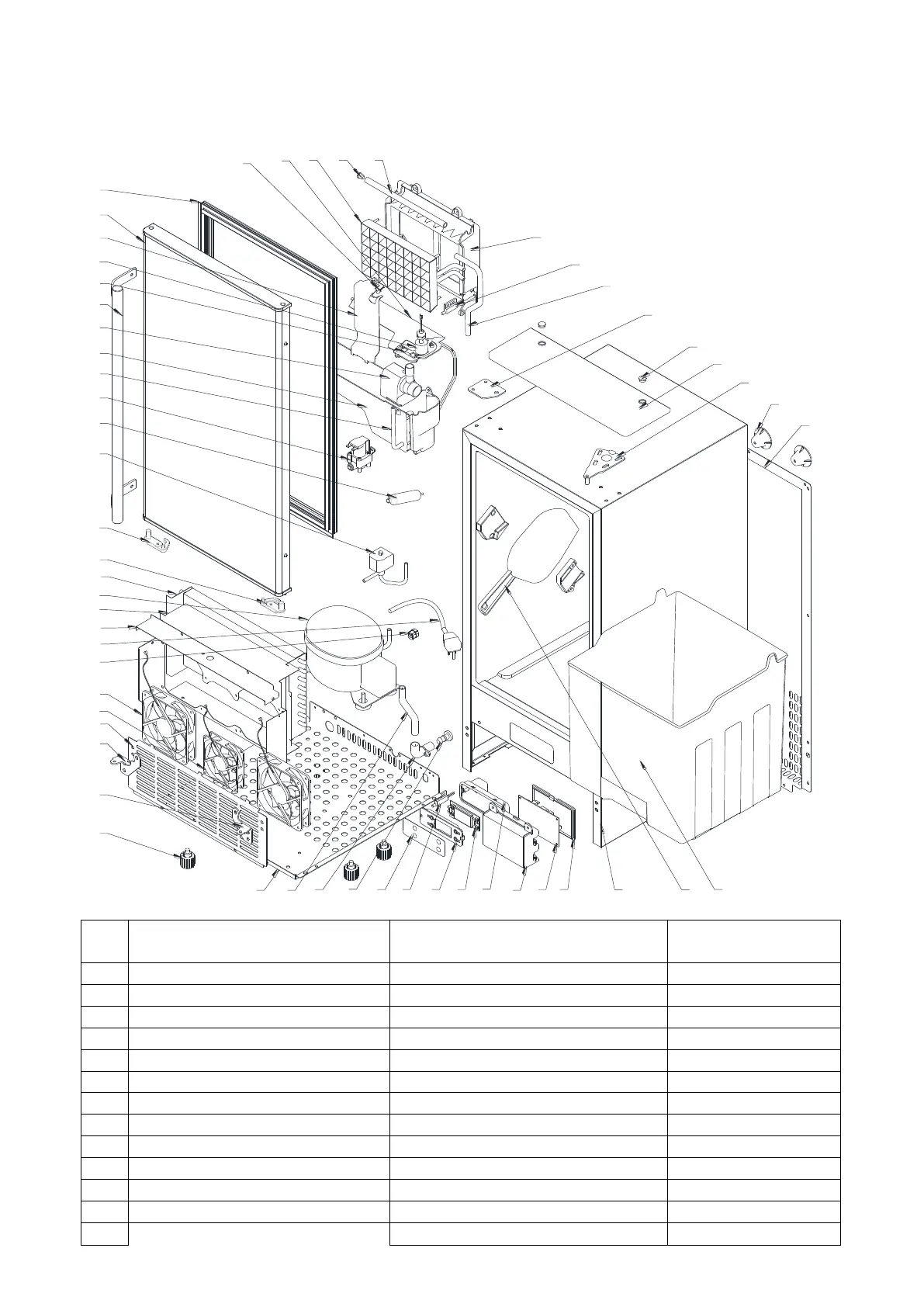

4) EXPLOSIVE DRAWING
47
42
45
46
48
49
50
1
2
6
14
15
22
25
31
33
34
36
37
38
41
43
13
40
24
29
30
26
3
5
4
7
9
10
11
20
5253
32
8
12
19
16
17
18
21
28
23
55
54
35
39
27
44
51
NO.
Part Name
Specifications
Qty
1
Door seal
PVC
1
2
Door
SUS & Foams
1
3
Water tank side cover
ABS White
1
4
Float switch
Electrical part DC5V
1
5
Water tank cover
ABS White
1
6
Handle
SUS
1
7
Pump
Electrical part AC115V
1
8
Water Tank
ABS White
1
9
Drain tube for water tank
Silicone tube, FDA
1
10
Water inlet solenoid
Electrical part DC12V
1
11
Filter Dryer
Copper and dryer
1
12
Solenoid valve for ice release
Electrical part AC115V
1
13
Left fix piece
POM
1
（
accessory
）
