User_Manual-PILATUS-V1_2.doc 39/57

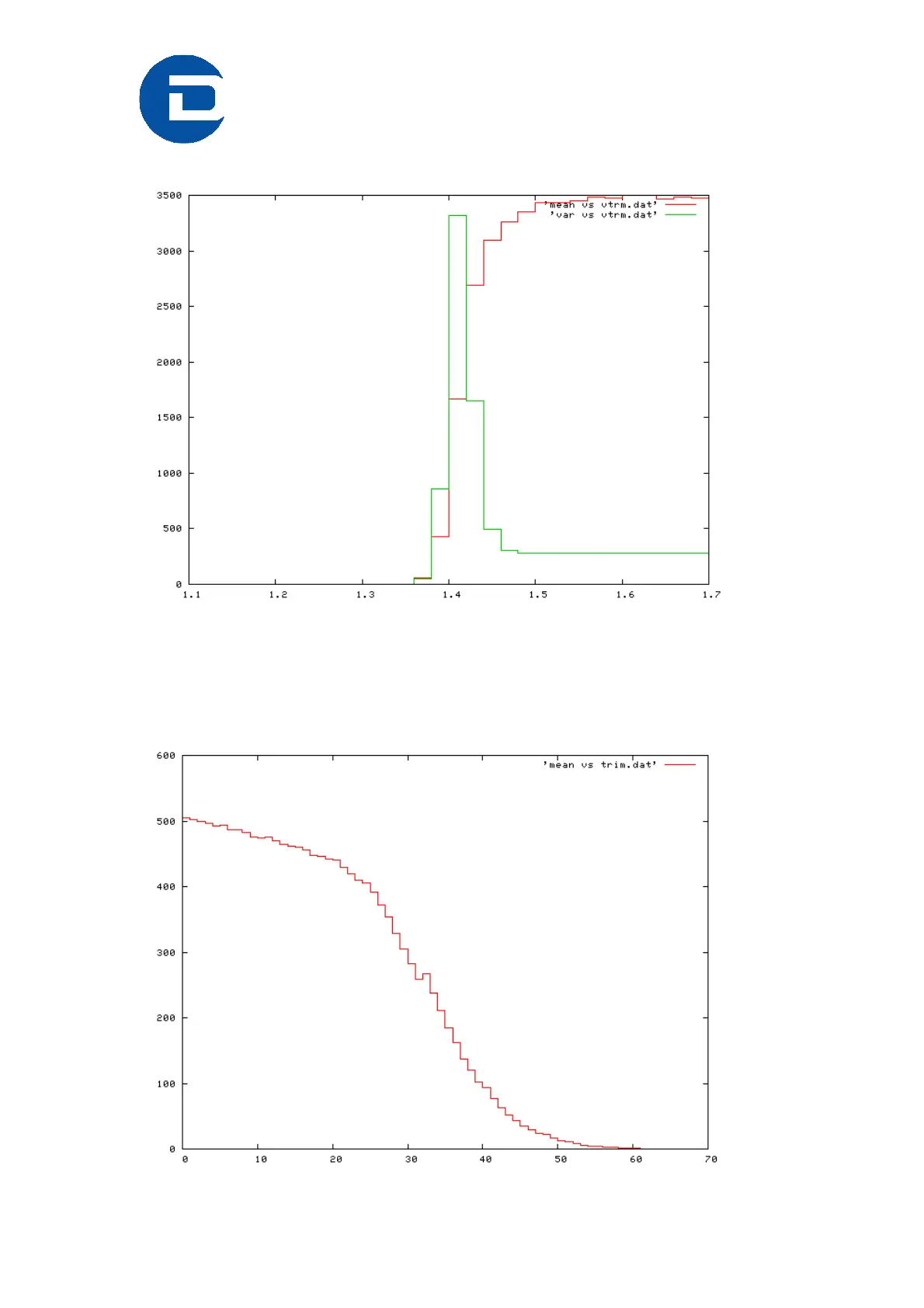

Figure 17 Result of the Vtrm scan.
The system will now run through a trim bit scan and vary all 64 possibilities of
the trimbits. The next prompt will occur in a few hours depending on flux of the
x-ray source.
Figure 18 Result of the trimbit scan
