Dedicated Micros Digital Sprite 2 - Straight-Through Network Cable

Page 118 Dedicated Micros

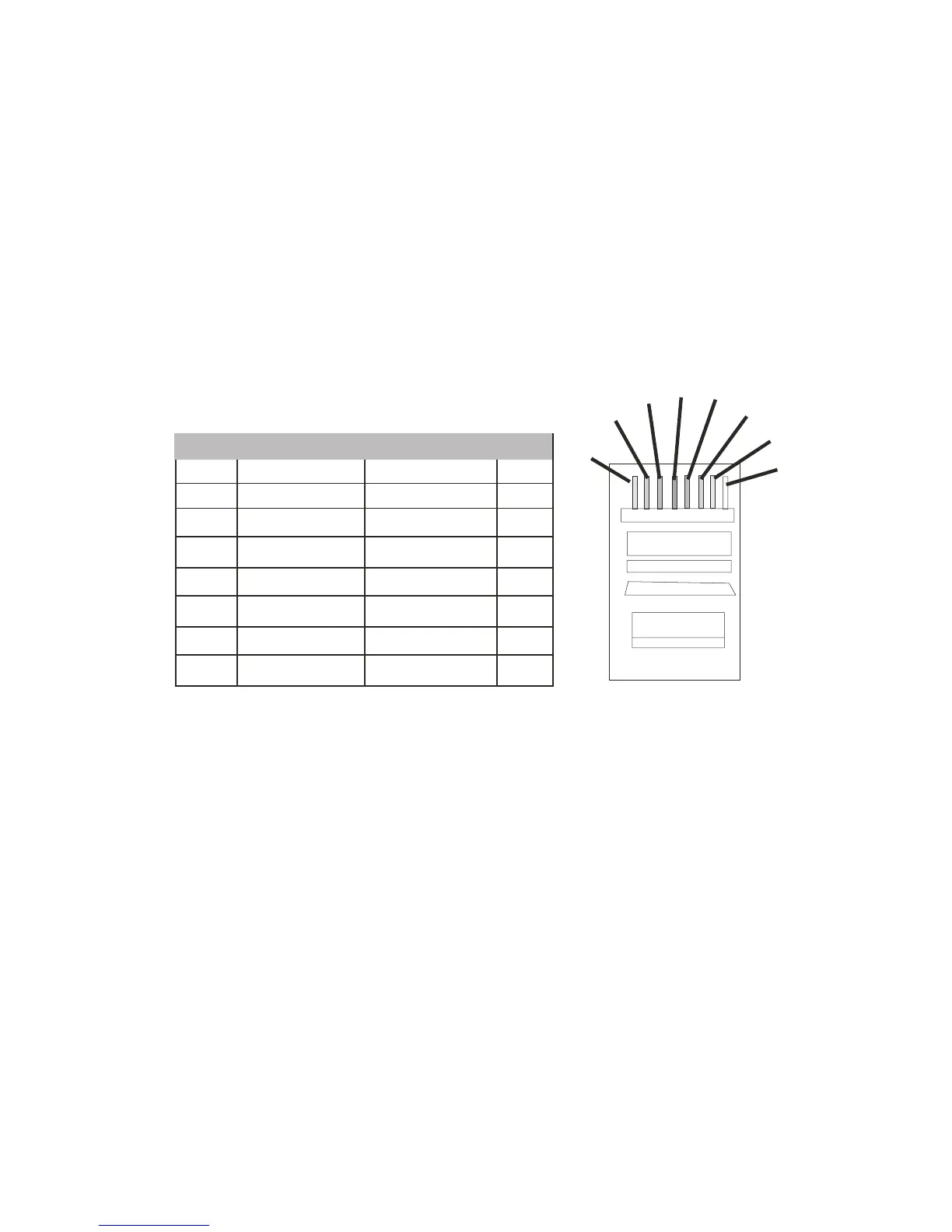

Straight-through Network Cable
A straight through network cable connects hosts to network devices; PC to switch, Digital Sprite
2 to Switch.
1
2
3
4
5
6
7
8
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
White/Orange
Orange/White
White/Green
Blue/White
White/Blue
Green/White
White/Brown
Brown/White
Transmit (+)
Transmit (-)
Receive (+)
Not used
Not used
Receive (-)
Not used
Not used
Pin Colour Code Pin Assignment Pin
