DEEP SEA ELECTRONICS DSEGenset DSE6110 MKIII User Manual

Maintenance
057-289 ISSUE: 1
Page 144 of 148

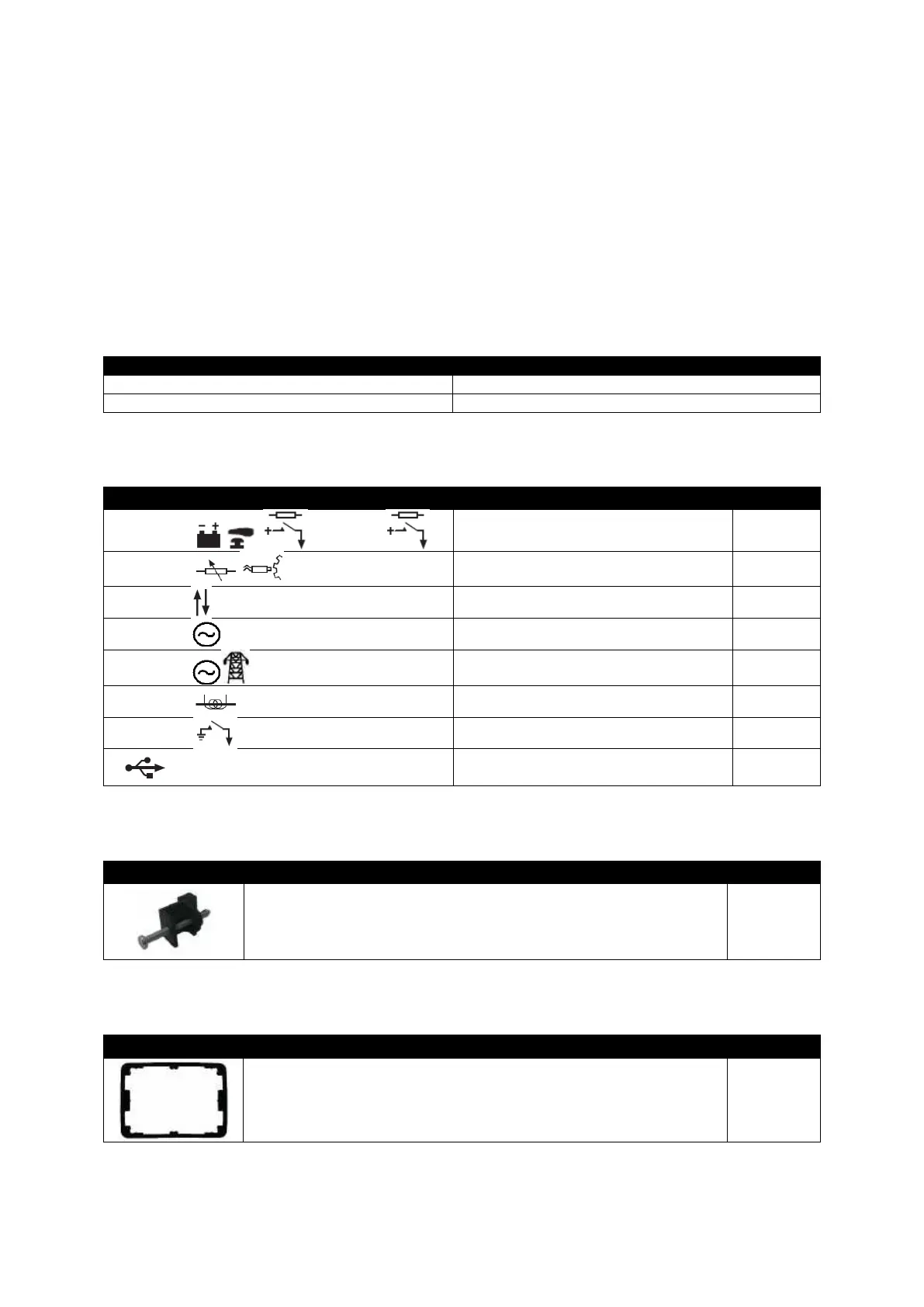

11 MAINTENANCE, SPARES, REPAIR AND SERVICING
The controller is Fit and Forget. As such, there are no user serviceable parts within the controller.
In the case of malfunction, you should contact your original equipment manufacturer (OEM).
11.1 PURCHASING ADDITIONAL CONNECTOR PLUGS FROM DSE
If additional plugs are required, contact our Sales department using the part numbers below.
11.1.1 PACK OF PLUGS
Module Type
Plug Pack Part Number
DSE6110 MKIII
007-1040
DSE6120 MKIII
007-1041
11.1.2 INDIVIDUAL PLUGS
Module Terminal Designation
Plug Description
Part No.
1-12
D+
W/L
12 way 5.08 mm
007-109
15-25
ECU
11 way 5.08 mm
007-451
26-28
3 way 5.08 mm
007-174
29-32
DSE6110 MKIII only
4 way 7.62 mm
007-171
29-36
DSE6120 MKIII only
8 way 7.62 mm
007-454
37-41
5 way 5.08 mm
007-445
42-49
8 way 5.08 mm
007-164
PC Configuration interface lead
(USB type A – USB type B)
016-125
11.2 PURCHASING ADDITIONAL FIXING CLIPS FROM DSE
Item
Description
Part No.
Module Fixing Clips (Packet Of 2)
020-406
11.3 PURCHASING ADDITIONAL SEALING GASKET FROM DSE
Item
Description
Part No.
Module Silicon Sealing Gasket
020-521
