DEEP SEA ELECTRONICS DSEGenset DSE6110 MKIII User Manual

Installation
Page 41 of 148
057-289 ISSUE: 1
3.2.5 CURRENT TRANSFORMERS
WARNING!: Do not disconnect this plug when the CTs are carrying current.
Disconnection open circuits the secondary of the C.T.’s and dangerous voltages may then
develop. Always ensure the CTs are not carrying current and the CTs are short circuit
connected before making or breaking connections to the module.
NOTE: The module has a burden of 0.25 VA on the CT. Ensure the CT is rated for the
burden of the controller, the cable length being used and any other equipment sharing the CT.
If in doubt, consult with the CT supplier.
NOTE: Take care to ensure correct polarity of the CT primary as shown below. If in doubt,
consult with the CT supplier.
Pin
No
Description
Cable
Size
Notes
37
CT Secondary for L1
2.5 mm²
AWG 13
Connect to s1 secondary of L1 monitoring CT
38
CT Secondary for L2
2.5 mm²
AWG 13
Connect to s1 secondary of L2 monitoring CT
39
CT Secondary for L3
2.5 mm²
AWG 13
Connect to s1 secondary of L3 monitoring CT
40
CT Common
2.5 mm²
AWG 13
Connect to s2 secondary of L1, L2 & L3 monitoring CTs
and ground
41

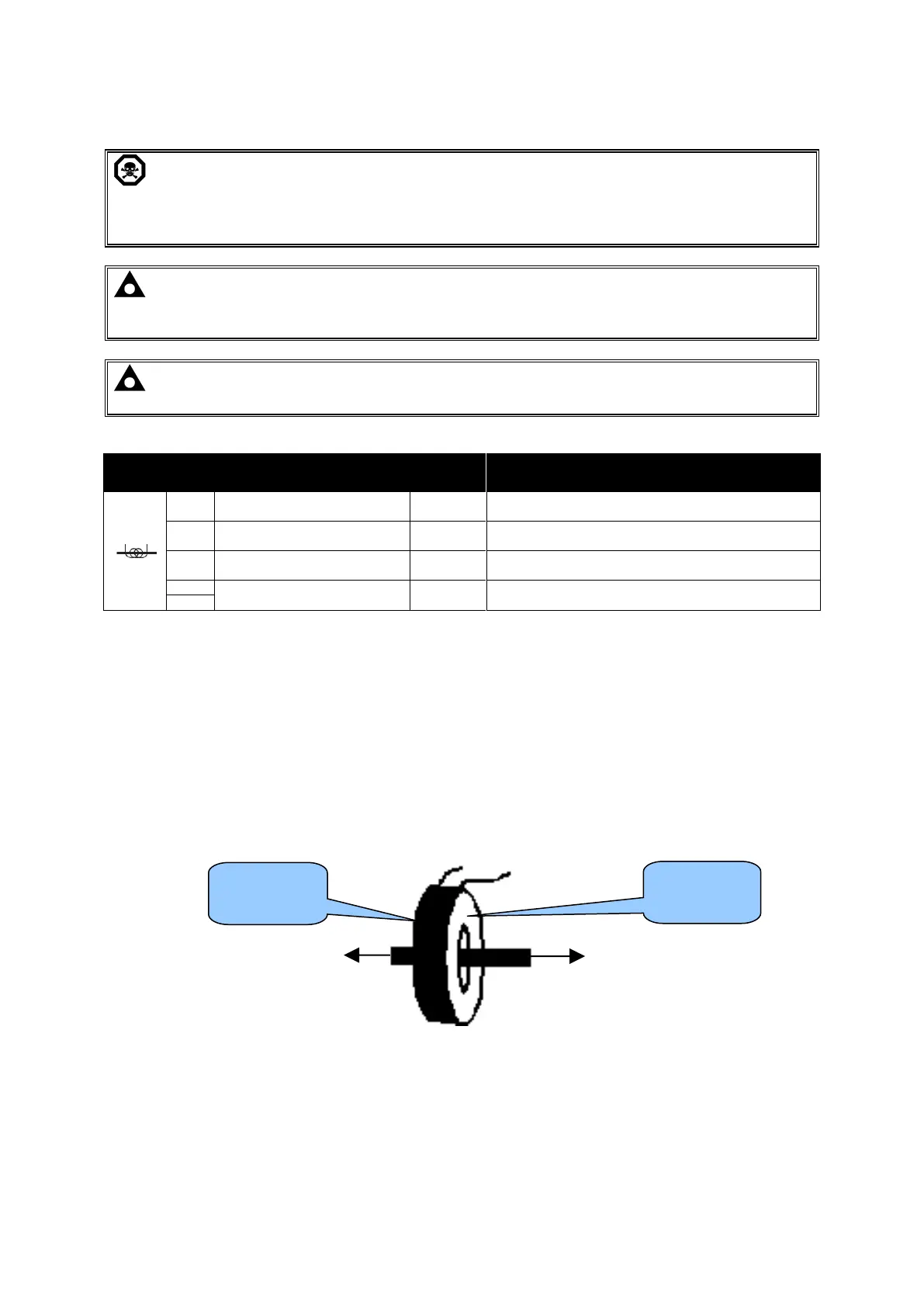

3.2.5.1 CT CONNECTIONS
p1, k or K is the primary of the CT that ‘points’ towards the Generator
p2, l or L is the primary of the CT that ‘points’ towards the Load
s1 is the secondary of the CT that connects to the DSE Module’s input for the CT measuring
s2 is the secondary of the CT that should be commoned with the s2 connections of all the other CTs
and connected to the CT common terminal of the module.
To Generator
To Load
Polarity of CT Primary
Labelled as
p1, k or K
Labelled as
p2, l or L
