Defensor PH15 - 3 Product Overview; Unit Versions; Unit Construction

8
3 Product Overview
3.1 Unit versions
1
2
3
4
5
6
7
8
10
9
13
11
9
14
12
15
The Defensor PH15/PH15A air purifier/air humidifier is available in two basic versions:
– PH15: version with integrated water tank
– PH15A: version with inlet valve for the connection to the drinking water system
Both versions are equipped as standard with a coarse dust filter and evaporator mat to operate the
unit as a humidifier (winter time operation).
1 Air inlet lattice
2 Coarse filter
3 Radial fan
4 Centrifuge
5 Mobile base with cover
6 Flock-coated evaporator mat or activated
carbon evaporator mat
7 Droplet trap

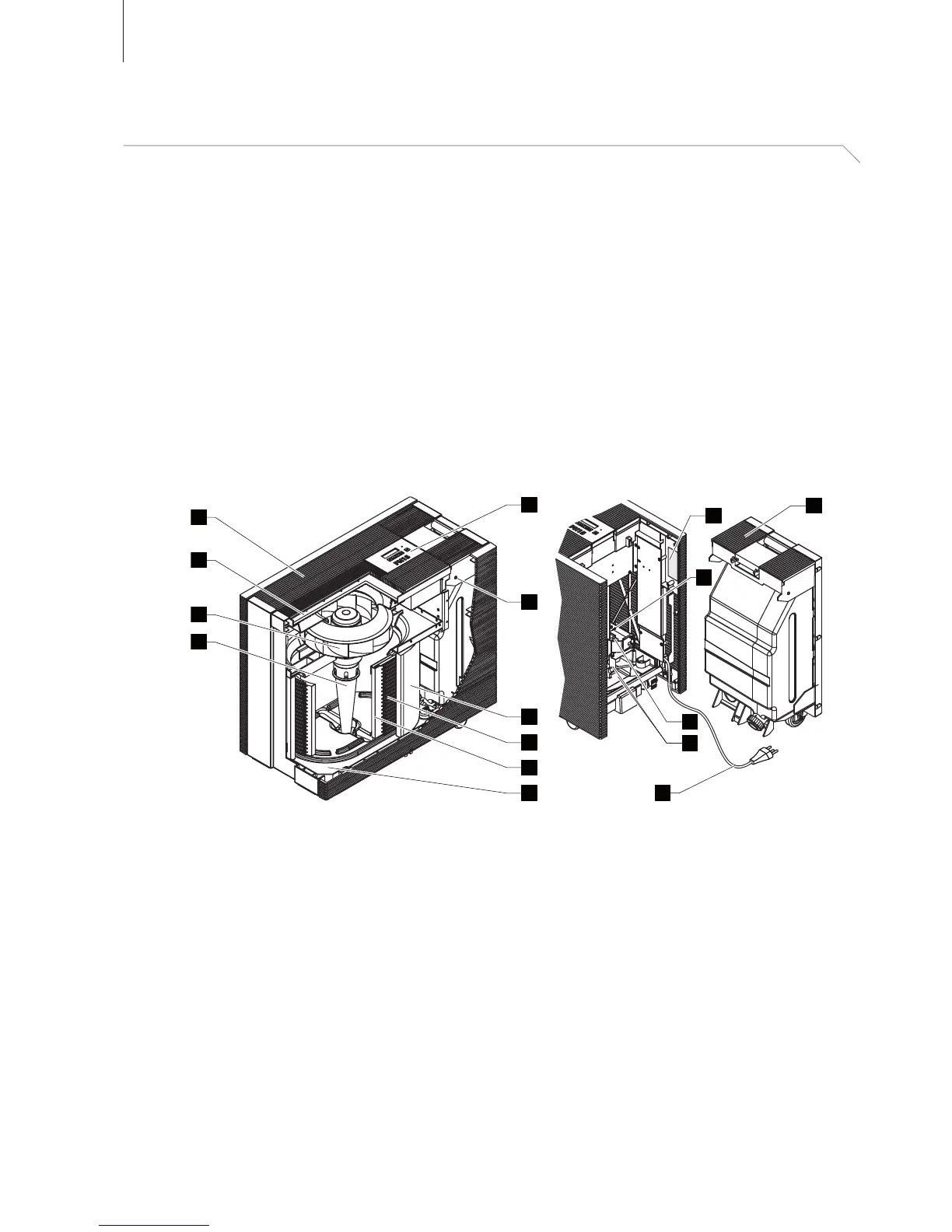

3.2 Unit construction
PH15
8 Coarse dust filter or Quattro filter
9 Carriage with water tank
10 Operating panel with display
11 Type plate
12 3 pole mains cable
13 Silver ionisation electrodes (option)
14 Level switch
15 Safety switch
