Defensor PH15 - Operating Panel

9

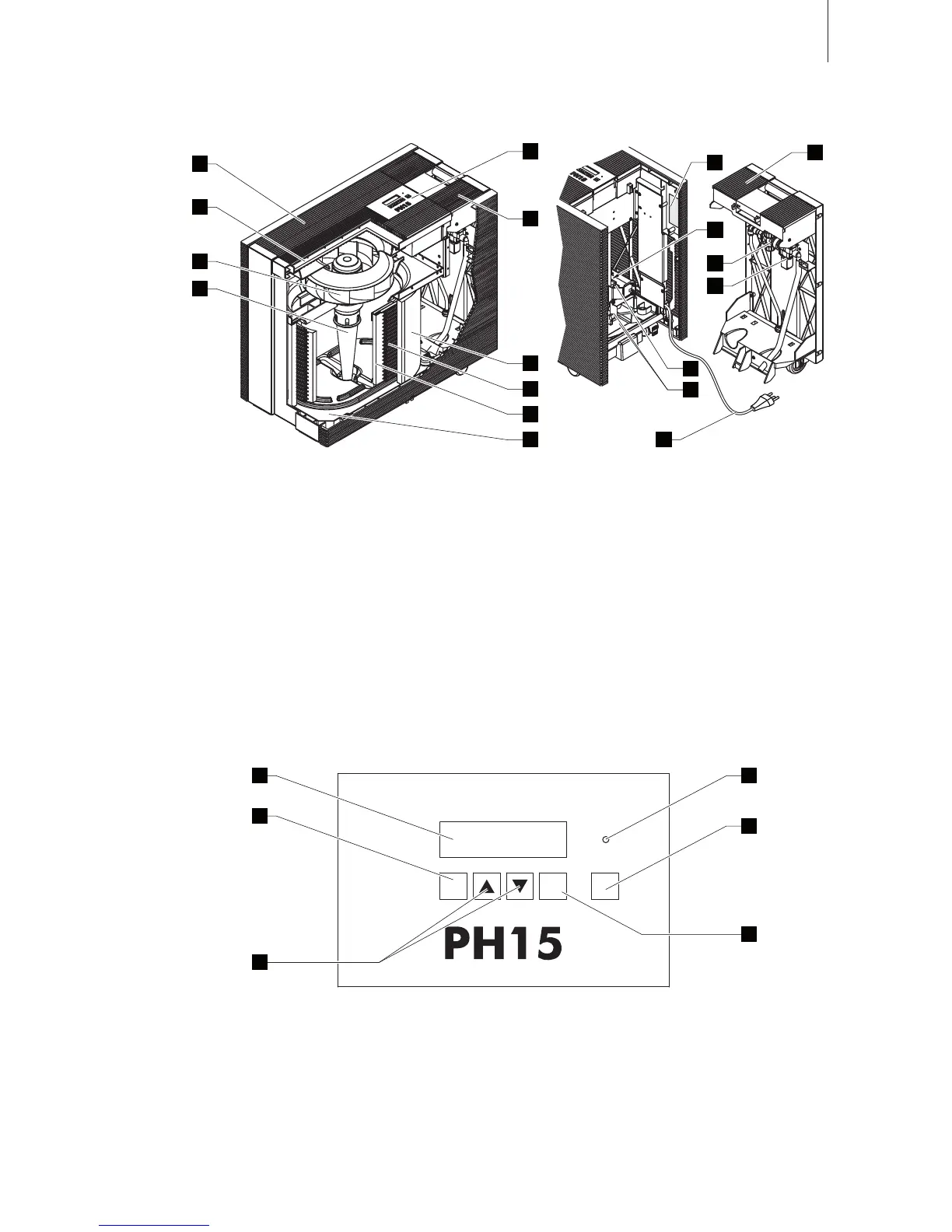

1 Air inlet lattice
2 Coarse filter
3 Radial fan
4 Centrifuge
5 Mobile base with cover
6 Flock-coated evaporator mat or activated
carbon evaporator mat
7 Droplet trap
8 Coarse dust filter or Quattro filter
9 Carriage
10 Operating panel
11 Type plate
12 3 pole mains cable
13 Silver ionisation electrodes (option)
14 Level switch
15 Safety switch
16 Water filter
17 Inlet valve
1
2
3
16
17
4
5
6
7
8
10
9
13
11
9
14
15
12
PH15A
3.3 Operating panel
1 LC display
2 <ESC> key
3 Arrow keys
4 Error indicator
5 <I/0> key (On/Off)
6 <Enter> key
ESC Enter I / 0
1
2
3
4
5
6
