Page 12 of 24
Power cable must not be longer than
2 m because of safety reasons.

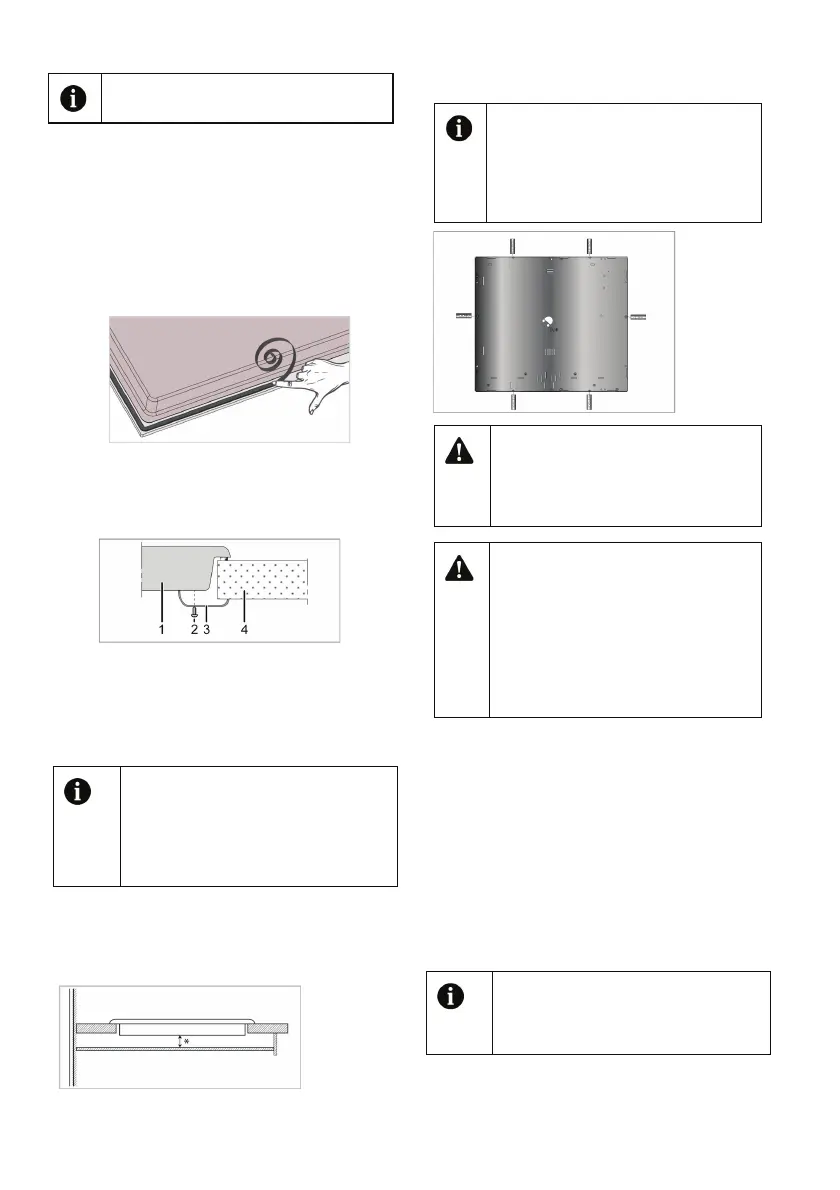

Installing the product
1. Turning the hob upside down, place it on
a flat surface.
2. When installing the hob, apply the sealing
gasket, which was provided in the
packaging, around the hob as shown in the
following picture, ensuring that it remains 1
to 2 mm inside from the outer edge of the
glass.
3. Place the hob on the counter and align it.
4. Using the installation clamps secure the
hob by fitting through the holes on the
lower casing.
1 Hob
2 Screw
3 Installation clamp
4 Counter
When installing the hob onto a
cabinet, a shelf must be installed in
order to separate the cabinet from
the hob as illustrated in the above
figure. This is not required when
installing onto a built-under oven.
For example, if it is possible to touch the
bottom of the product since it is installed
onto a drawer, this section must be covered
with a wooden plate.
* min. 15 mm
Rear view (connection holes)
Final check
1. Operate the product.
2. Check the functions.
Future Transportation
• Keep the product's original carton and
transport the product in it. Follow the
instructions on the carton. If you do not
have the original carton, pack the product
in bubble wrap or thick cardboard and tape
it securely.
Location of the connection holes
shown in the below figure are
schematic,may vary depending on
the product model. Fix them
according to connection holes on
your product.
Making connections to different
holes is not a good practice in
terms of safety since it can
damage the gas and electrical
system.
There are gas and electrical
components contained within this
hob, therefore when fitting the
mounting springs/clamps only
attach the supplied fixings to the
connection holes shown in this
manual. Failure to observe this
advise may lead to life and
property safety
Check the general appearance of
your product for any damages that
might have occurred during
transportation.
