Deif AGC-4 Mk II Quick Start Guide

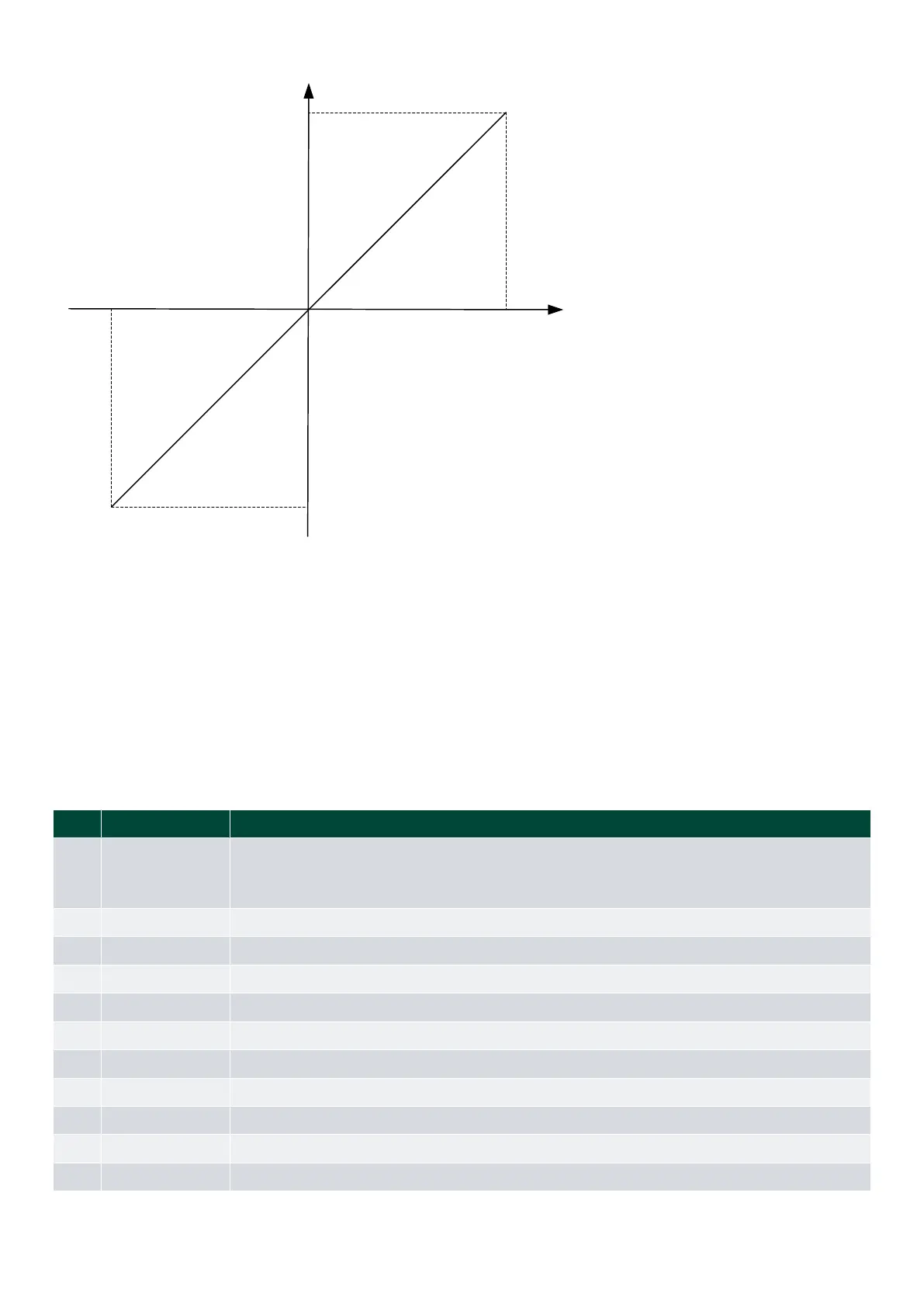

Controller offset
100%
0%
25mA
-25mA
2.1.4 Using an analogue output as a transducer
You can use an analogue output as a transducer to transmit the controller's set point, AC measurements or power
management information to an external system.
You can select the output range for the transducer. That is, 0-20mA, 4-20mA, 0-10V, or -10-0-10V.
You can also select the output range for the value. For example, for the genset apparent power (menu 5850), select the
minimum in 5855, and select the maximum in 5844.
Parameters for using an analogue output as a transducer
Menu
Value Details
5690 P ref
The controller's power set point.
For example, for MWM TEM controllers.
5700 Q ref The controller's reactive power set point
5710 cos phi ref The controller's cos phi set point
5820 P1* Genset active power
5830 P2* Genset active power
5840 P3* Genset active power
5850 S Genset apparent power
5860 Q Genset reactive power
5870 cos phi cos phi of the power from the genset
5880 f Genset frequency
5890 U Genset L1-L2 voltage
Options E F AGC-4 Mk II 4189341277C EN Page 8 of 10
