Multi-line 2 General Guidelines for Commissioning
DEIF A/S Page 9 of 19
Voltage controller settings
The voltage controller settings are adjusted in the control setup menu.

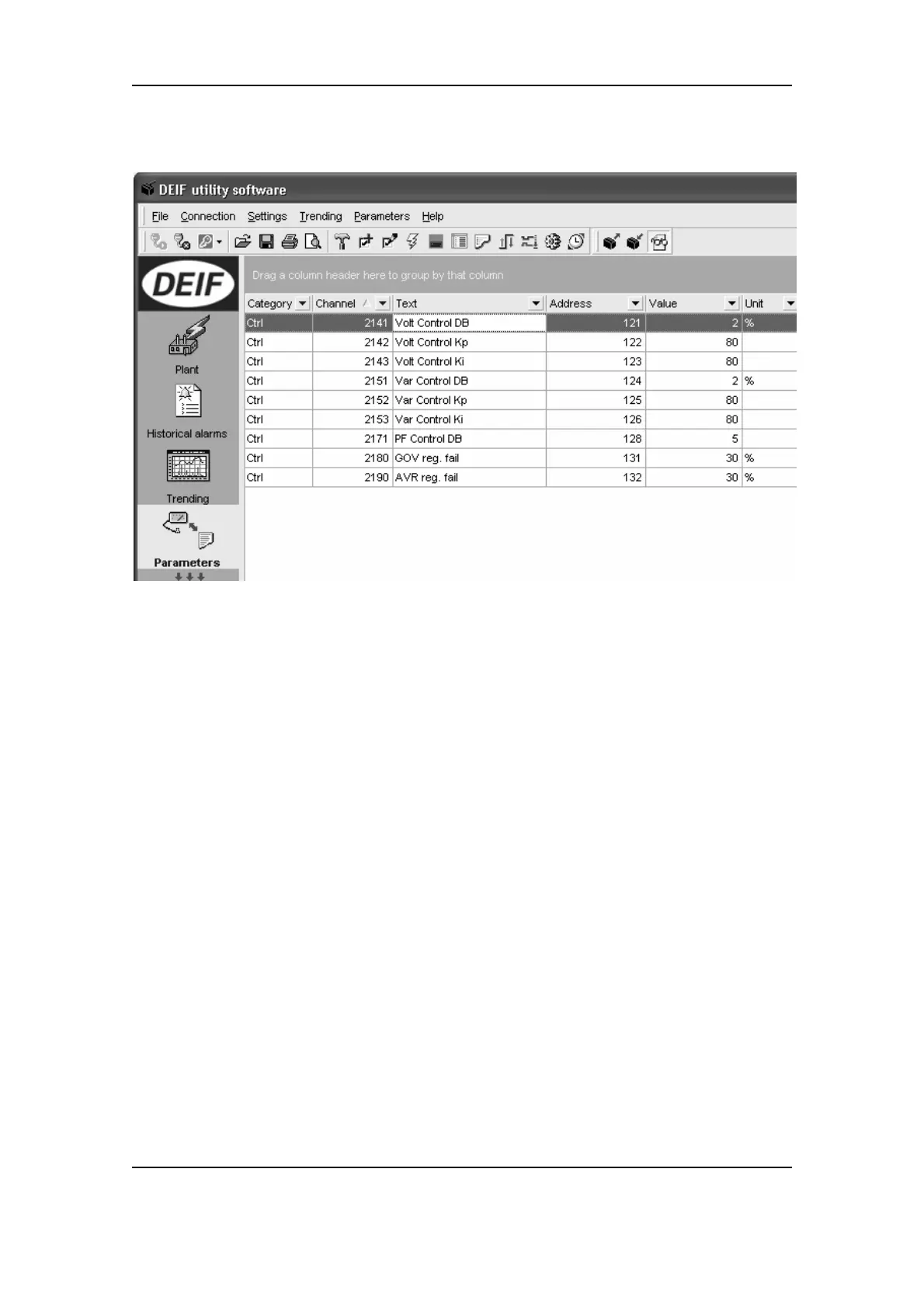

The screen dump above illustrates the controller settings of the voltage and var controller. As an
initial setting before the first start up, the K
P
and K
I
of the voltage and var controllers are set to a low
value.
