NOTE The PG glands cannot be changed to another size or type, as they are a vital part of the IP66 protection.
If the gauge of the installation cable is different from the above-mentioned, a junction box must be used to accomplish
connection to the installation.
NOTE Remember to fasten the nut on the PG glands.

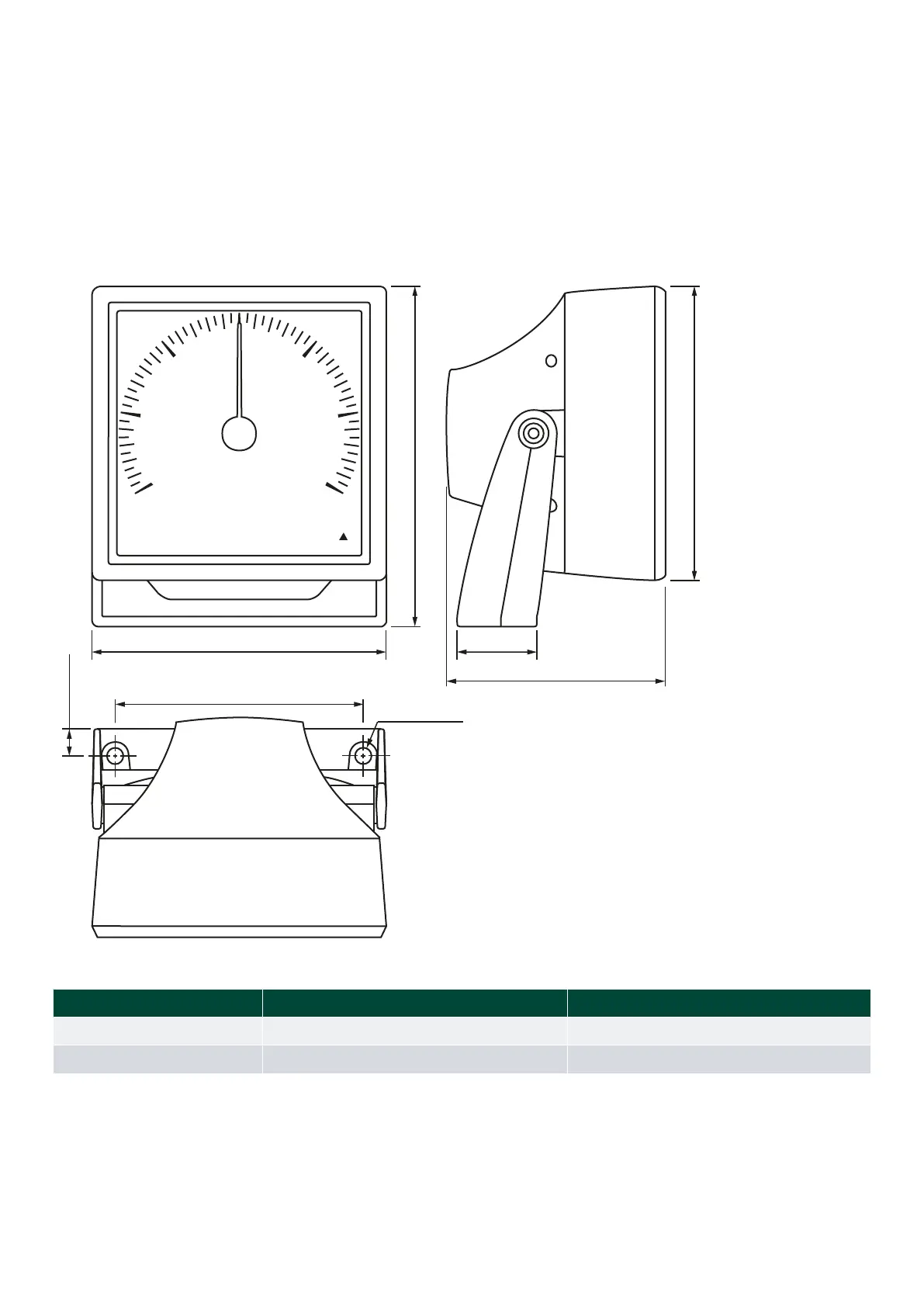

3.2 Dimensions and drilling template
3.2.1 BW dimensions
110.0 (4.33)
A
B
A
40.0 (1.57)
125.0 (4.92)
Ø9.0 (Ø0.36)
14.0 (0.55)
BW dimensions in millimeters (inches)
Product
A B
BW144 148.0 171.0
BW192 196.0 219.0
NOTE There are two cable glands 9, cable gauge 5 to 8 mm) on the rear of the unit.
Installation and commissioning guide 4189350024O EN Page 18 of 39
