Pin number Function Note
9
Illumination analogue dimmer
NC
Dimmer input. Dimmer range 7 to 30 V DC
Consumption max. 30 mA
10 Illumination GND
11 Illumination +
Optional calibration switch and resistor not shown, see Commissioning for details.
NOTE

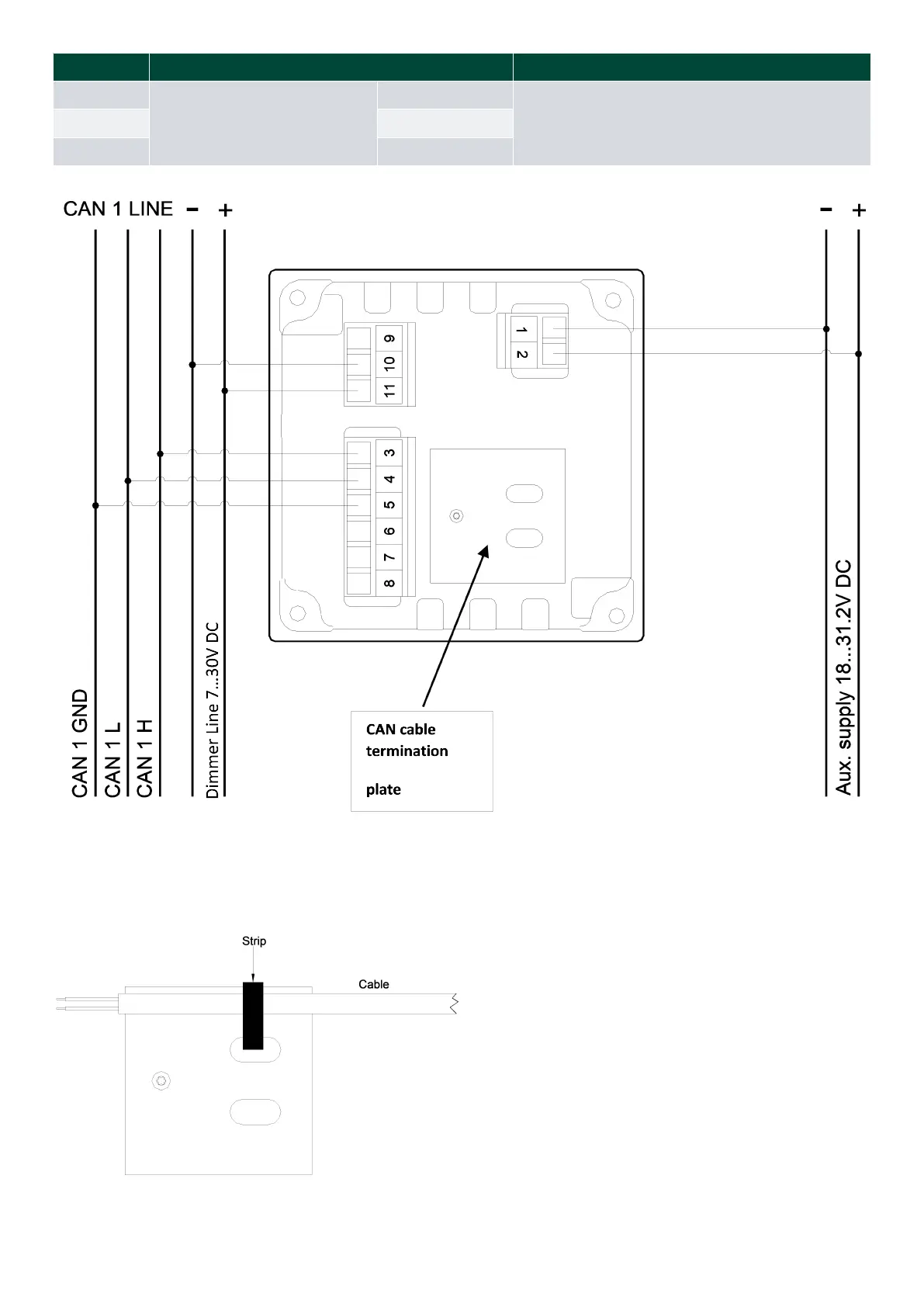

The plate shown at the arrow is for fastening the CAN cable with a strip. The strip is not included.
Installation and commissioning guide 4189350024O EN Page 13 of 39
