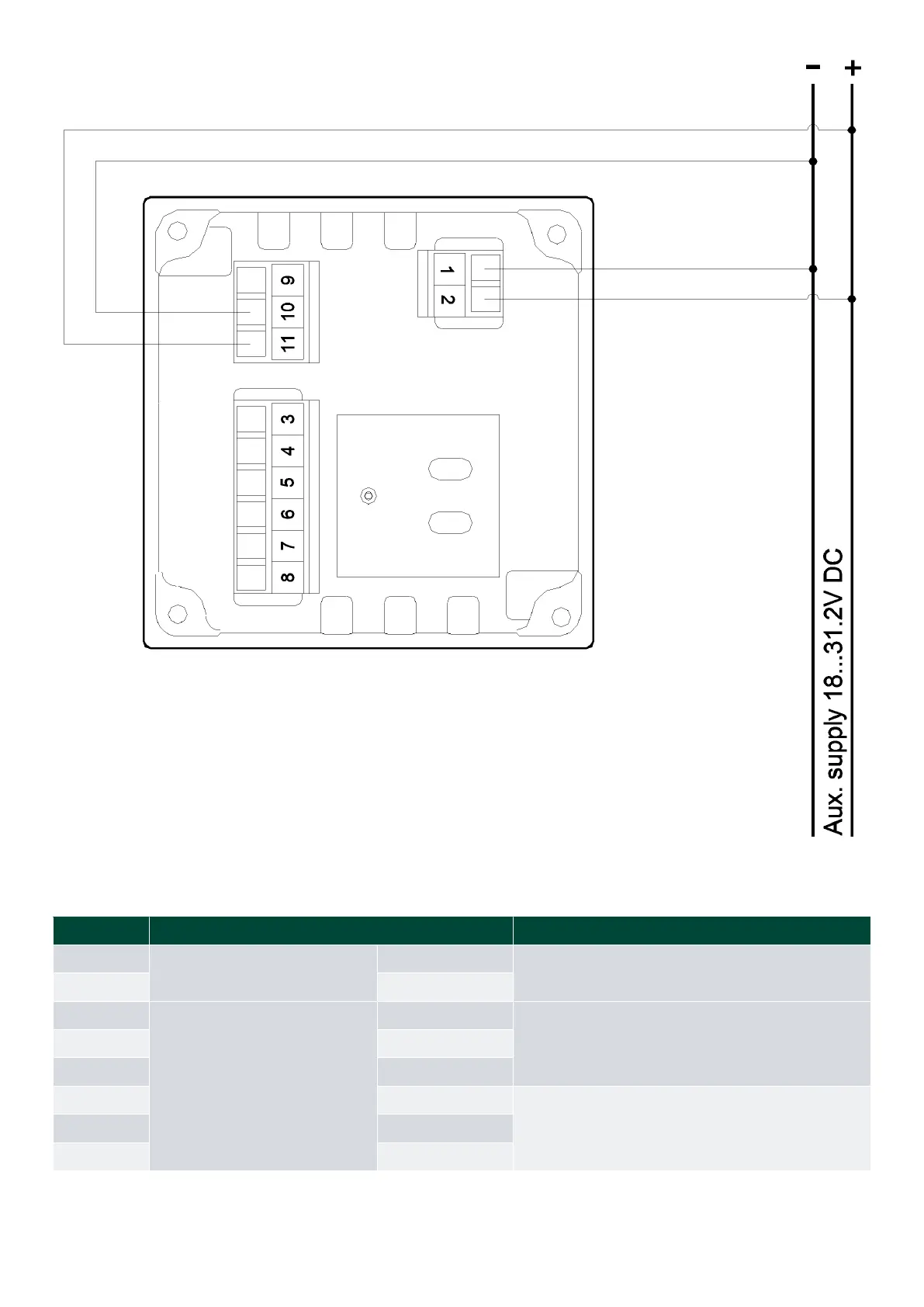

2.1.6 sCAN input indicators
Pin number Function Note
1
Supply voltage
0 V
Consumption max. 150 mA
2 24 V
3
CAN connection
CAN 1 H input
CAN 1 line (sCAN line) 4 CAN 1 L input
5 CAN 1 GND
6 Not used
Used for setting of min/zero/max with
external switch   See section 6 for info.
7 Switch/button
8 GND
Installation and commissioning guide 4189350024O EN Page 12 of 39
